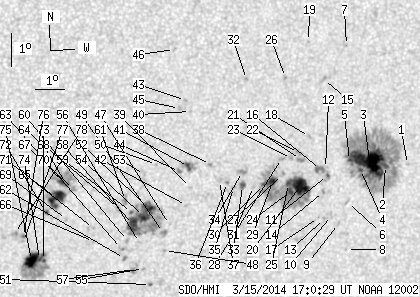

SDO HMI 2014-03-15 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 147.21 | 671.98 | 82.79 | 380.01 | -18.08 | 325.81 | 27.04 | 244.31 | 0.4804 | 123.3 | 124.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-15 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.77 | -17.12 | 331.10 | 32.32 | 249.46 | 0.5478 | -188.0 | -141.0 | |
| 3.13 | 246.35 | 1.83 | 143.73 | -17.20 | 330.30 | 31.53 | 248.98 | 0.5372 | 342.2 | 322.3 | |
| 43.95 | -2.00 | 25.61 | -2.00 | -17.11 | 329.70 | 30.93 | 248.87 | 0.5287 | 1118.0 | 999999 | |
| 1.56 | -2.00 | 0.91 | -2.00 | -17.37 | 329.42 | 30.65 | 248.26 | 0.5258 | 949.1 | 999999 | |
| 1.39 | -2.00 | 0.80 | -2.00 | -17.12 | 328.98 | 30.20 | 248.51 | 0.5188 | 1110.4 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.31 | -18.39 | 329.14 | 30.37 | 246.24 | 0.5262 | 460.0 | 333.7 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -13.68 | 328.33 | 29.55 | 254.88 | 0.4984 | 675.0 | 519.6 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -19.82 | 329.40 | 30.62 | 243.82 | 0.5361 | 594.0 | 428.6 | |
| 0.00 | 1.48 | 0.00 | 0.86 | -19.05 | 328.94 | 30.17 | 244.94 | 0.5265 | 615.0 | 509.8 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -18.82 | 328.64 | 29.87 | 245.19 | 0.5214 | 639.0 | 464.2 | |
| 0.52 | 3.74 | 0.30 | 2.15 | -17.62 | 328.27 | 29.50 | 247.22 | 0.5111 | 891.3 | 704.8 | |
| 0.00 | 1.39 | 0.00 | 0.80 | -17.42 | 328.17 | 29.39 | 247.55 | 0.5087 | 689.0 | 625.8 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -18.93 | 328.41 | 29.63 | 244.86 | 0.5187 | 785.0 | 652.2 | |
| 0.00 | 1.56 | 0.00 | 0.90 | -18.11 | 328.22 | 29.44 | 246.27 | 0.5124 | 797.0 | 583.4 | |
| 0.00 | 2.69 | 0.00 | 1.53 | -14.75 | 327.67 | 28.89 | 252.52 | 0.4919 | 806.0 | 617.9 | |
| 0.00 | 5.56 | 0.00 | 3.19 | -17.46 | 327.99 | 29.22 | 247.39 | 0.5065 | 981.0 | 904.9 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -18.91 | 328.19 | 29.41 | 244.77 | 0.5157 | 739.0 | 619.6 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -16.48 | 327.44 | 28.66 | 248.98 | 0.4948 | 743.0 | 595.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -13.64 | 326.99 | 28.22 | 254.51 | 0.4787 | 793.0 | 623.6 | |
| 18.50 | 118.48 | 10.57 | 67.41 | -17.98 | 327.37 | 28.59 | 246.04 | 0.5002 | 1069.4 | 451.5 | |
| 0.00 | 3.47 | 0.00 | 1.98 | -17.19 | 327.24 | 28.46 | 247.48 | 0.4948 | 982.0 | 813.2 | |
| 0.00 | 2.69 | 0.00 | 1.53 | -16.99 | 327.13 | 28.35 | 247.83 | 0.4925 | 798.0 | 767.3 | |
| 0.00 | 1.74 | 0.00 | 0.99 | -17.18 | 326.91 | 28.14 | 247.33 | 0.4903 | 940.0 | 687.5 | |
| 3.21 | -20.00 | 1.83 | -20.00 | -18.18 | 327.05 | 28.27 | 245.47 | 0.4967 | 1038.4 | 999999 | |
| 2.35 | -20.00 | 1.33 | -20.00 | -17.94 | 326.94 | 28.16 | 245.86 | 0.4940 | 1123.8 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -14.76 | 326.34 | 27.56 | 251.92 | 0.4726 | 845.0 | 771.7 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -17.68 | 326.68 | 27.90 | 246.21 | 0.4892 | 693.0 | 756.4 | |
| 0.00 | 2.08 | 0.00 | 1.18 | -17.20 | 326.56 | 27.79 | 247.09 | 0.4855 | 732.0 | 719.7 | |
| 4.17 | -20.00 | 2.36 | -20.00 | -17.91 | 326.36 | 27.59 | 245.57 | 0.4860 | 1182.9 | 999999 | |
| 0.69 | -20.00 | 0.39 | -20.00 | -18.02 | 326.06 | 27.29 | 245.17 | 0.4823 | 927.2 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.88 | -18.10 | 325.72 | 26.95 | 244.79 | 0.4780 | 665.0 | 637.2 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -14.89 | 325.01 | 26.23 | 251.00 | 0.4537 | 1052.0 | 815.0 | |
| 1.82 | 4.17 | 1.02 | 2.34 | -18.09 | 325.34 | 26.56 | 244.56 | 0.4726 | 1053.8 | 869.1 | |
| 0.00 | 5.21 | 0.00 | 2.92 | -17.67 | 325.27 | 26.49 | 245.36 | 0.4695 | 1045.0 | 768.2 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -18.17 | 325.03 | 26.26 | 244.19 | 0.4688 | 805.0 | 648.2 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -18.03 | 324.80 | 26.02 | 244.32 | 0.4649 | 879.0 | 774.2 | |
| 0.00 | 2.61 | 0.00 | 1.45 | -17.98 | 324.51 | 25.74 | 244.21 | 0.4607 | 321.0 | 290.3 | |
| 0.00 | 1.56 | 0.00 | 0.87 | -17.51 | 324.13 | 25.35 | 244.90 | 0.4528 | -603.0 | -310.8 | |
| 0.00 | 1.48 | 0.00 | 0.82 | -18.24 | 323.55 | 24.77 | 242.95 | 0.4487 | -511.0 | -354.6 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -15.95 | 323.23 | 24.45 | 247.64 | 0.4321 | 783.0 | 624.6 | |
| 2.69 | 10.60 | 1.49 | 5.85 | -17.61 | 323.39 | 24.61 | 244.15 | 0.4429 | -945.1 | -601.5 | |
| 0.00 | 1.65 | 0.00 | 0.92 | -18.79 | 323.49 | 24.72 | 241.76 | 0.4512 | -663.0 | -526.2 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -15.63 | 323.02 | 24.24 | 248.22 | 0.4276 | 737.0 | 591.1 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -17.78 | 323.10 | 24.32 | 243.58 | 0.4398 | -996.0 | -883.5 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -15.88 | 322.84 | 24.07 | 247.55 | 0.4262 | 897.0 | 722.6 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -14.12 | 322.47 | 23.69 | 251.37 | 0.4130 | 753.0 | 632.0 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -19.40 | 323.00 | 24.22 | 240.11 | 0.4482 | -367.0 | -347.6 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -20.20 | 322.95 | 24.18 | 238.45 | 0.4529 | 832.0 | 684.4 | |
| 0.00 | 3.91 | 0.00 | 2.16 | -19.65 | 322.83 | 24.05 | 239.45 | 0.4476 | 280.0 | 212.0 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -17.60 | 322.29 | 23.51 | 243.30 | 0.4274 | -658.0 | -513.2 | |
| 0.35 | 1.22 | 0.19 | 0.68 | -21.26 | 322.64 | 23.87 | 236.07 | 0.4564 | 855.0 | 715.1 | |
| 9.21 | 84.00 | 5.06 | 46.18 | -18.95 | 322.21 | 23.43 | 240.35 | 0.4346 | -995.7 | -401.7 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -17.92 | 321.92 | 23.15 | 242.29 | 0.4242 | -751.0 | -532.4 | |
| 7.73 | -52.00 | 4.25 | -52.00 | -19.20 | 322.07 | 23.29 | 239.70 | 0.4344 | -1015.9 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -20.78 | 322.32 | 23.54 | 236.70 | 0.4487 | -360.0 | -356.5 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -20.00 | 322.05 | 23.28 | 238.03 | 0.4396 | 152.0 | 122.1 | |
| 0.00 | 5.65 | 0.00 | 3.12 | -20.83 | 322.01 | 23.24 | 236.31 | 0.4451 | -916.0 | -639.0 | |
| 11.81 | -52.00 | 6.48 | -52.00 | -19.46 | 321.77 | 22.99 | 238.87 | 0.4320 | -998.6 | 999999 | |
| 0.61 | -52.00 | 0.33 | -52.00 | -19.10 | 321.64 | 22.87 | 239.52 | 0.4279 | -1183.6 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.19 | -19.95 | 321.63 | 22.86 | 237.71 | 0.4337 | -745.0 | -542.2 | |
| 0.00 | 5.30 | 0.00 | 2.89 | -18.74 | 321.39 | 22.61 | 240.03 | 0.4221 | -980.0 | -738.0 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -20.51 | 321.62 | 22.84 | 236.56 | 0.4375 | -827.0 | -699.9 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -20.21 | 321.47 | 22.69 | 237.02 | 0.4334 | -608.0 | -707.5 | |
| 0.00 | 3.04 | 0.00 | 1.66 | -18.99 | 321.18 | 22.41 | 239.29 | 0.4210 | -906.0 | -798.6 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -19.64 | 320.42 | 21.65 | 237.13 | 0.4154 | -875.0 | -723.6 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -20.03 | 320.48 | 21.70 | 236.35 | 0.4191 | -632.0 | -596.8 | |
| 0.00 | 3.21 | 0.00 | 1.73 | -18.48 | 319.59 | 20.82 | 238.80 | 0.3958 | -816.0 | -577.7 | |
| 0.69 | 19.63 | 0.37 | 10.55 | -18.34 | 319.34 | 20.56 | 238.85 | 0.3913 | -1064.8 | -626.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -19.40 | 319.48 | 20.70 | 236.61 | 0.4010 | -774.0 | -541.6 | |
| 2.26 | -68.00 | 1.21 | -68.00 | -18.26 | 319.16 | 20.39 | 238.84 | 0.3882 | -1186.1 | 999999 | |
| 14.94 | 24.24 | 8.03 | 13.03 | -18.78 | 319.06 | 20.28 | 237.53 | 0.3907 | -1127.9 | -715.3 | |
| 0.78 | 2.00 | 0.42 | 1.07 | -19.22 | 318.78 | 20.00 | 236.21 | 0.3903 | -1070.6 | -901.7 | |
| 0.78 | 52.21 | 0.42 | 28.21 | -20.68 | 318.87 | 20.09 | 233.13 | 0.4035 | -749.6 | -401.3 | |
| 1.13 | -73.00 | 0.61 | -73.00 | -20.66 | 318.73 | 19.95 | 233.01 | 0.4015 | -929.7 | 999999 | |
| 12.94 | -73.00 | 6.98 | -73.00 | -20.70 | 318.46 | 19.69 | 232.59 | 0.3985 | -1235.1 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.79 | -19.98 | 318.10 | 19.32 | 233.69 | 0.3876 | -1152.0 | -1014.8 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -20.13 | 318.12 | 19.34 | 233.38 | 0.3892 | -916.0 | -756.9 | |
| 0.00 | 2.69 | 0.00 | 1.44 | -19.90 | 317.79 | 19.01 | 233.46 | 0.3829 | -1045.0 | -785.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
