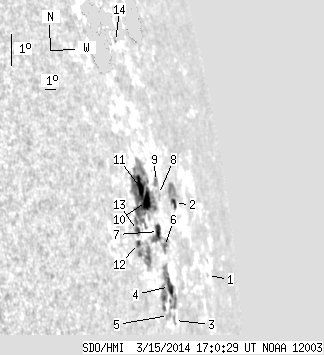

SDO HMI 2014-03-15 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.25 | 219.59 | 71.67 | 381.35 | 5.29 | 11.32 | 72.54 | 277.73 | 0.9596 | 172.5 | 3.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-15 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 2.15 | 4.59 | 17.63 | 78.85 | 276.03 | 0.9843 | -106.0 | -6.2 | |
| 2.43 | 15.81 | 5.01 | 32.55 | 6.31 | 13.88 | 75.11 | 278.35 | 0.9719 | -224.4 | -101.1 | |
| 0.00 | 2.52 | 0.00 | 4.68 | 2.63 | 12.80 | 74.02 | 274.75 | 0.9649 | 145.0 | 173.0 | |
| 7.12 | 39.70 | 13.07 | 71.71 | 3.62 | 12.45 | 73.67 | 275.82 | 0.9639 | -467.7 | -312.0 | |
| 0.00 | 4.17 | 0.00 | 7.45 | 2.71 | 12.16 | 73.38 | 274.92 | 0.9620 | 141.0 | 88.0 | |
| 1.56 | 7.21 | 2.86 | 13.26 | 4.80 | 12.22 | 73.44 | 277.07 | 0.9637 | -285.7 | -378.2 | |
| 5.47 | 11.81 | 9.70 | 20.76 | 5.20 | 11.70 | 72.93 | 277.56 | 0.9616 | 30.0 | -350.9 | |
| 0.00 | 3.47 | 0.00 | 6.41 | 6.37 | 12.11 | 73.33 | 278.69 | 0.9643 | -106.0 | -92.2 | |
| 0.00 | 4.52 | 0.00 | 8.28 | 6.75 | 11.94 | 73.16 | 279.11 | 0.9639 | -260.0 | -206.7 | |
| 11.12 | 103.80 | 18.87 | 172.36 | 5.99 | 10.75 | 71.97 | 278.54 | 0.9576 | 378.5 | 269.9 | |
| 9.99 | -10.00 | 16.54 | -10.00 | 6.36 | 10.29 | 71.51 | 279.00 | 0.9556 | 654.2 | 999999 | |
| 1.30 | 25.02 | 2.05 | 40.41 | 4.58 | 9.58 | 70.81 | 277.27 | 0.9504 | 554.9 | -131.9 | |
| 2.26 | -10.00 | 3.57 | -10.00 | 4.97 | 9.59 | 70.81 | 277.68 | 0.9508 | 637.9 | 999999 | |
| 0.00 | 0.78 | 0.00 | 1.33 | 10.80 | 9.93 | 71.16 | 283.63 | 0.9579 | -29.0 | -119.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
