SDO HMI 2014-03-15 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.11 | 557.93 | 72.41 | 378.28 | 11.77 | 260.39 | -38.39 | 63.43 | 0.6771 | -720.3 | -261.5 | |
|
previous
or next observation for the same group /

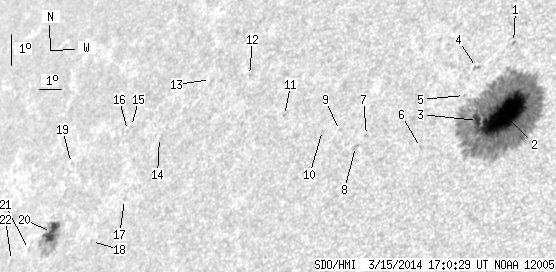

back to the solar disc SDO HMI 2014-03-15 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.21 | 14.26 | 262.99 | -35.79 | 58.87 | 0.6645 | 724.0 | 488.0 | |
| 84.52 | 490.53 | 54.94 | 319.53 | 11.98 | 263.03 | -35.75 | 61.92 | 0.6500 | -1301.9 | -331.8 | |
| 5.82 | -2.00 | 3.83 | -2.00 | 11.87 | 262.03 | -36.75 | 62.74 | 0.6610 | -619.9 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.80 | 13.57 | 261.70 | -37.08 | 60.66 | 0.6746 | -693.0 | -509.9 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 12.71 | 261.39 | -37.39 | 62.01 | 0.6731 | -376.0 | -301.5 | |
| 0.00 | 1.56 | 0.00 | 1.05 | 11.19 | 259.93 | -38.85 | 64.93 | 0.6816 | -515.0 | -320.2 | |
| 0.00 | 1.30 | 0.00 | 0.91 | 11.76 | 257.68 | -41.09 | 65.44 | 0.7098 | -720.0 | -566.2 | |
| 0.00 | 2.35 | 0.00 | 1.65 | 11.45 | 257.29 | -41.48 | 66.05 | 0.7127 | -576.0 | -471.1 | |
| 0.00 | 0.61 | 0.00 | 0.44 | 12.02 | 256.53 | -42.24 | 65.71 | 0.7238 | -545.0 | -482.1 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 12.08 | 255.81 | -42.96 | 66.00 | 0.7319 | -403.0 | -312.5 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 12.71 | 254.06 | -44.71 | 66.07 | 0.7532 | -387.0 | -393.8 | |
| 0.00 | 0.96 | 0.00 | 0.75 | 14.15 | 252.17 | -46.61 | 65.20 | 0.7785 | -510.0 | -358.8 | |
| 0.00 | 0.87 | 0.00 | 0.71 | 14.20 | 250.37 | -48.40 | 65.95 | 0.7962 | 376.0 | 360.3 | |
| 0.00 | 0.52 | 0.00 | 0.44 | 12.56 | 248.41 | -50.36 | 68.68 | 0.8091 | 438.0 | 500.2 | |
| 0.00 | 0.61 | 0.00 | 0.53 | 13.06 | 246.90 | -51.88 | 68.68 | 0.8248 | 353.0 | 376.1 | |
| 0.00 | 1.04 | 0.00 | 0.91 | 12.95 | 246.73 | -52.04 | 68.87 | 0.8260 | 413.0 | 339.8 | |
| 0.00 | 0.87 | 0.00 | 0.74 | 10.75 | 247.17 | -51.60 | 71.27 | 0.8152 | 499.0 | 421.4 | |
| 0.00 | 0.78 | 0.00 | 0.68 | 9.59 | 245.80 | -52.98 | 73.10 | 0.8250 | 354.0 | 253.9 | |
| 0.00 | 0.78 | 0.00 | 0.72 | 12.19 | 244.07 | -54.70 | 70.66 | 0.8475 | 282.0 | 228.2 | |
| 14.77 | 46.47 | 13.64 | 42.94 | 10.10 | 243.60 | -55.18 | 73.20 | 0.8463 | 695.9 | 274.6 | |
| 0.00 | 0.78 | 0.00 | 0.74 | 9.69 | 242.46 | -56.32 | 74.00 | 0.8554 | 220.0 | 201.8 | |
| 0.00 | 0.43 | 0.00 | 0.42 | 9.45 | 241.58 | -57.20 | 74.53 | 0.8624 | -368.0 | -328.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
