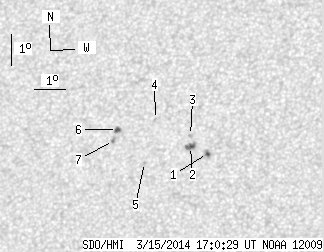

SDO HMI 2014-03-15 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.65 | 17.12 | 3.10 | 9.39 | 12.80 | 282.58 | -16.20 | 38.91 | 0.4346 | 48.5 | 13.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-15 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.22 | 2.78 | 0.66 | 1.51 | 12.38 | 283.97 | -14.80 | 37.08 | 0.4157 | -1074.8 | -850.1 | |
| 2.78 | 5.47 | 1.52 | 2.99 | 12.62 | 283.42 | -15.36 | 37.74 | 0.4240 | -979.0 | -738.9 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 12.97 | 283.40 | -15.38 | 37.26 | 0.4286 | -710.0 | -595.5 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 13.52 | 282.25 | -16.53 | 38.48 | 0.4464 | 660.0 | 575.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 12.16 | 281.99 | -16.79 | 40.93 | 0.4328 | 813.0 | 701.3 | |
| 1.65 | 3.04 | 0.92 | 1.69 | 13.25 | 281.05 | -17.73 | 40.85 | 0.4551 | 881.1 | 703.5 | |
| 0.00 | 2.35 | 0.00 | 1.30 | 12.90 | 280.95 | -17.83 | 41.52 | 0.4521 | 968.0 | 786.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
