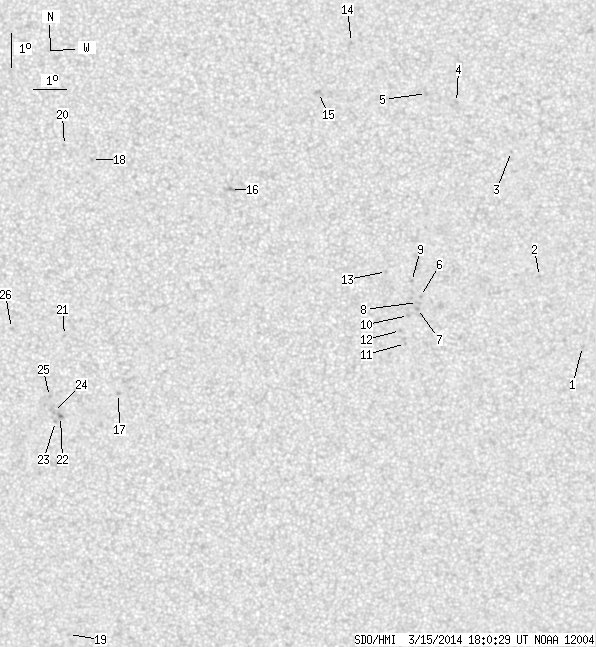

SDO HMI 2014-03-15 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 38.42 | 0.17 | 19.19 | -10.89 | 299.69 | 1.47 | 208.34 | 0.1209 | 166.4 | 114.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-15 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.65 | 0.00 | 0.84 | -13.13 | 308.97 | 10.75 | 239.69 | 0.2114 | 729.0 | 591.8 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -11.06 | 307.57 | 9.34 | 246.35 | 0.1747 | 760.0 | 593.5 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -7.35 | 306.62 | 8.40 | 268.12 | 0.1456 | 807.0 | 621.7 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -5.92 | 304.94 | 6.71 | 280.13 | 0.1187 | 835.0 | 698.4 | |
| 0.00 | 1.74 | 0.00 | 0.87 | -5.66 | 304.03 | 5.81 | 284.19 | 0.1043 | 814.0 | 612.4 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -11.71 | 303.94 | 5.71 | 230.58 | 0.1267 | 948.0 | 745.8 | |
| 0.00 | 1.74 | 0.00 | 0.87 | -12.07 | 303.85 | 5.63 | 228.00 | 0.1296 | 1098.0 | 872.8 | |
| 0.00 | 1.91 | 0.00 | 0.95 | -11.89 | 303.85 | 5.62 | 229.05 | 0.1275 | 852.0 | 739.8 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -11.27 | 303.65 | 5.43 | 232.08 | 0.1181 | 870.0 | 674.1 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -12.29 | 303.58 | 5.35 | 225.39 | 0.1287 | 902.0 | 669.7 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -13.13 | 303.50 | 5.28 | 220.61 | 0.1383 | 886.0 | 689.4 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -12.74 | 303.34 | 5.12 | 221.68 | 0.1315 | 921.0 | 766.6 | |
| 0.00 | 0.61 | 0.00 | 0.30 | -10.98 | 302.89 | 4.66 | 229.95 | 0.1047 | 850.0 | 620.1 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -4.16 | 301.77 | 3.55 | 310.13 | 0.0811 | 930.0 | 779.5 | |
| 0.00 | 3.82 | 0.00 | 1.90 | -5.66 | 300.79 | 2.56 | 300.33 | 0.0518 | 919.0 | 702.6 | |
| 0.00 | 4.43 | 0.00 | 2.19 | -8.55 | 298.15 | -0.07 | 176.97 | 0.0245 | -1235.0 | -818.1 | |
| 0.00 | 1.48 | 0.00 | 0.74 | -14.63 | 294.69 | -3.53 | 155.41 | 0.1440 | -1024.0 | -845.7 | |
| 0.00 | 1.22 | 0.00 | 0.60 | -7.63 | 293.97 | -4.26 | 96.70 | 0.0744 | -839.0 | -586.4 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -21.94 | 292.92 | -5.31 | 161.44 | 0.2709 | 756.0 | 578.4 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -7.20 | 293.16 | -5.06 | 90.88 | 0.0880 | -755.0 | -554.4 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -12.87 | 293.06 | -5.16 | 138.79 | 0.1337 | -856.0 | -707.1 | |
| 0.35 | 2.00 | 0.17 | 1.00 | -15.30 | 292.88 | -5.34 | 147.73 | 0.1690 | -1142.0 | -1014.7 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.45 | 292.72 | -5.50 | 147.46 | 0.1726 | -784.0 | -653.0 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -15.18 | 292.67 | -5.56 | 146.30 | 0.1693 | -901.0 | -759.9 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -14.70 | 292.56 | -5.67 | 144.07 | 0.1636 | -984.0 | -798.1 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -12.64 | 291.44 | -6.78 | 129.93 | 0.1510 | -808.0 | -627.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
