SDO HMI 2014-03-15 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.18 | 166.69 | 56.84 | 294.08 | 11.28 | 9.73 | 71.51 | 284.05 | 0.9595 | -44.8 | -114.1 | |
|
previous
or next observation for the same group /

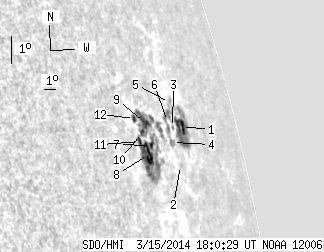

back to the solar disc SDO HMI 2014-03-15 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.77 | 40.56 | 17.94 | 83.83 | 11.79 | 12.20 | 73.98 | 284.10 | 0.9712 | -275.7 | -54.4 | |
| 0.00 | 1.39 | 0.00 | 2.64 | 10.47 | 11.30 | 73.08 | 282.93 | 0.9664 | -202.0 | -181.4 | |
| 0.00 | 1.13 | 0.00 | 2.17 | 11.64 | 11.22 | 73.00 | 284.13 | 0.9670 | -333.0 | -356.5 | |
| 0.00 | 3.91 | 0.00 | 7.26 | 11.13 | 10.88 | 72.66 | 283.68 | 0.9651 | -676.0 | -571.0 | |
| 0.00 | 3.91 | 0.00 | 7.66 | 12.45 | 11.48 | 73.26 | 284.90 | 0.9688 | -82.0 | -116.0 | |
| 0.00 | 13.55 | 0.00 | 25.33 | 11.77 | 10.79 | 72.57 | 284.35 | 0.9653 | -441.0 | -445.0 | |
| 1.65 | 102.24 | 2.69 | 165.19 | 10.77 | 8.62 | 70.40 | 283.75 | 0.9541 | -132.4 | -47.0 | |
| 9.99 | -7.00 | 15.88 | -7.00 | 10.44 | 8.17 | 69.95 | 283.49 | 0.9515 | 556.3 | 999999 | |
| 6.51 | -7.00 | 10.58 | -7.00 | 11.45 | 8.37 | 70.14 | 284.50 | 0.9535 | -554.0 | 999999 | |
| 2.00 | -7.00 | 3.16 | -7.00 | 11.09 | 7.99 | 69.76 | 284.21 | 0.9512 | -348.7 | 999999 | |
| 2.35 | -7.00 | 3.63 | -7.00 | 10.77 | 7.64 | 69.42 | 283.95 | 0.9490 | 499.6 | 999999 | |
| 1.91 | -7.00 | 2.96 | -7.00 | 11.47 | 7.49 | 69.26 | 284.70 | 0.9490 | 195.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
