SDO HMI 2014-03-15 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.38 | 22.41 | 2.94 | 12.23 | 12.74 | 282.68 | -14.99 | 36.83 | 0.4224 | 109.1 | 39.2 | |
|
previous
or next observation for the same group /

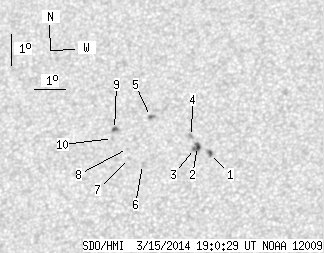

back to the solar disc SDO HMI 2014-03-15 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.13 | 3.65 | 0.61 | 1.97 | 12.36 | 284.10 | -13.57 | 34.72 | 0.4041 | -1089.5 | -803.6 | |
| 2.17 | 5.73 | 1.18 | 3.11 | 12.60 | 283.68 | -13.99 | 35.21 | 0.4110 | -1048.3 | -853.0 | |
| 0.43 | -2.00 | 0.24 | -2.00 | 12.54 | 283.59 | -14.08 | 35.47 | 0.4111 | -1017.6 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.14 | 12.92 | 283.47 | -14.20 | 35.14 | 0.4171 | -564.0 | -399.3 | |
| 0.52 | 2.78 | 0.29 | 1.53 | 13.61 | 282.13 | -15.54 | 36.64 | 0.4382 | 895.3 | 700.5 | |
| 0.00 | 2.00 | 0.00 | 1.09 | 12.09 | 281.97 | -15.70 | 39.14 | 0.4209 | 731.0 | 635.6 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 12.29 | 281.55 | -16.12 | 39.58 | 0.4277 | 874.0 | 666.7 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 12.61 | 281.47 | -16.21 | 39.24 | 0.4324 | 690.0 | 566.0 | |
| 1.13 | 2.61 | 0.62 | 1.44 | 13.23 | 281.01 | -16.66 | 39.11 | 0.4444 | 939.1 | 735.8 | |
| 0.00 | 1.48 | 0.00 | 0.81 | 12.95 | 280.96 | -16.71 | 39.60 | 0.4414 | 780.0 | 589.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
