SDO HMI 2014-03-15 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 17.46 | 0.74 | 17.20 | -11.42 | 357.34 | 60.22 | 260.61 | 0.8633 | -16.4 | 225.3 | |
|
previous
or next observation for the same group /

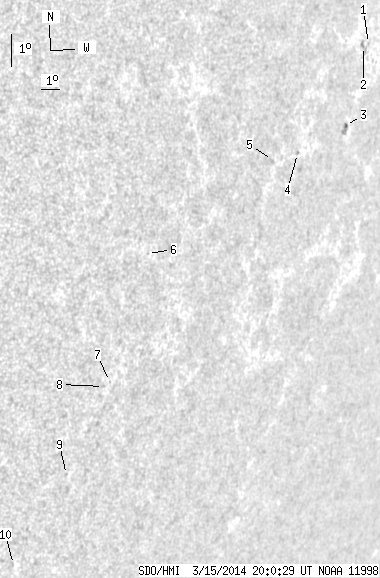

back to the solar disc SDO HMI 2014-03-15 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.86 | -6.97 | 1.06 | 63.94 | 265.76 | 0.8960 | 316.0 | 294.9 | |
| 0.00 | 3.91 | 0.00 | 4.28 | -7.10 | 0.75 | 63.63 | 265.65 | 0.8935 | 556.0 | 490.9 | |
| 0.69 | 4.86 | 0.74 | 5.20 | -9.54 | 0.23 | 63.11 | 262.95 | 0.8882 | 541.1 | 441.2 | |
| 0.00 | 0.87 | 0.00 | 0.85 | -10.68 | 357.51 | 60.39 | 261.79 | 0.8653 | 419.0 | 399.4 | |
| 0.00 | 2.52 | 0.00 | 2.37 | -11.04 | 356.11 | 58.99 | 261.42 | 0.8529 | 176.0 | 171.7 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -14.45 | 350.35 | 53.23 | 257.27 | 0.7976 | -341.0 | -439.0 | |
| 0.00 | 0.78 | 0.00 | 0.64 | -18.41 | 349.93 | 52.81 | 252.25 | 0.7959 | -312.0 | -319.2 | |
| 0.00 | 1.22 | 0.00 | 0.99 | -18.59 | 349.70 | 52.58 | 252.00 | 0.7937 | -614.0 | -483.6 | |
| 0.00 | 0.78 | 0.00 | 0.63 | -21.39 | 349.09 | 51.96 | 248.40 | 0.7910 | -258.0 | -195.4 | |
| 0.00 | 1.48 | 0.00 | 1.17 | -24.34 | 347.89 | 50.77 | 244.46 | 0.7844 | -502.0 | -394.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
