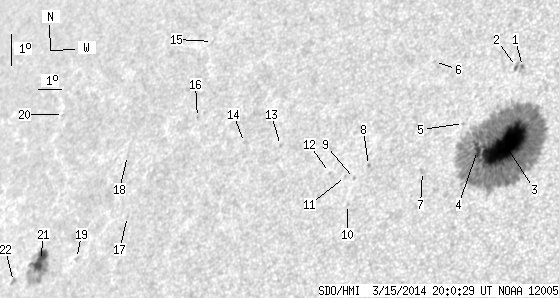

SDO HMI 2014-03-15 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.75 | 569.40 | 68.09 | 377.93 | 11.80 | 260.27 | -36.85 | 62.38 | 0.6598 | -722.1 | -312.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-15 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 1.13 | 0.28 | 0.73 | 14.46 | 263.26 | -33.86 | 57.17 | 0.6444 | 639.4 | 527.8 | |
| 0.00 | 2.69 | 0.00 | 1.74 | 14.48 | 263.03 | -34.09 | 57.33 | 0.6470 | 497.0 | 440.6 | |
| 78.35 | 497.31 | 49.90 | 317.21 | 12.01 | 263.02 | -34.10 | 60.72 | 0.6310 | -1401.6 | -399.7 | |
| 6.51 | -3.00 | 4.20 | -3.00 | 11.90 | 261.99 | -35.13 | 61.61 | 0.6423 | -649.1 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 12.80 | 261.33 | -35.79 | 60.82 | 0.6555 | -292.0 | -245.6 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 14.89 | 259.84 | -37.29 | 59.07 | 0.6848 | -472.0 | -404.5 | |
| 0.00 | 2.17 | 0.00 | 1.43 | 11.40 | 259.99 | -37.13 | 63.62 | 0.6628 | -623.0 | -502.9 | |
| 0.00 | 1.22 | 0.00 | 0.83 | 11.76 | 257.84 | -39.29 | 64.42 | 0.6896 | -781.0 | -689.9 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 11.39 | 257.34 | -39.78 | 65.19 | 0.6933 | -394.0 | -459.7 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 10.59 | 257.20 | -39.93 | 66.34 | 0.6911 | -465.0 | -349.5 | |
| 0.00 | 0.96 | 0.00 | 0.66 | 11.49 | 256.97 | -40.15 | 65.28 | 0.6980 | -567.0 | -458.4 | |
| 0.00 | 1.04 | 0.00 | 0.73 | 11.67 | 256.29 | -40.83 | 65.40 | 0.7065 | -482.0 | -389.8 | |
| 0.00 | 1.04 | 0.00 | 0.76 | 12.71 | 254.08 | -43.05 | 65.23 | 0.7356 | -520.0 | -402.6 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 12.95 | 252.49 | -44.63 | 65.72 | 0.7534 | 628.0 | 570.7 | |
| 0.00 | 0.52 | 0.00 | 0.42 | 16.39 | 250.14 | -46.98 | 62.73 | 0.7914 | -425.0 | -416.5 | |
| 0.00 | 0.87 | 0.00 | 0.69 | 13.96 | 250.17 | -46.95 | 65.59 | 0.7812 | 378.0 | 347.0 | |
| 0.00 | 0.78 | 0.00 | 0.64 | 11.09 | 247.66 | -49.47 | 70.07 | 0.7956 | 577.0 | 520.8 | |
| 0.00 | 0.61 | 0.00 | 0.51 | 13.05 | 247.16 | -49.96 | 67.94 | 0.8070 | 354.0 | 314.1 | |
| 0.00 | 1.56 | 0.00 | 1.33 | 10.01 | 245.45 | -51.67 | 72.16 | 0.8137 | 563.0 | 412.6 | |
| 0.00 | 1.30 | 0.00 | 1.20 | 14.73 | 243.43 | -53.69 | 67.44 | 0.8460 | 487.0 | 340.6 | |
| 15.46 | 49.08 | 13.71 | 43.54 | 10.14 | 243.62 | -53.50 | 72.62 | 0.8313 | 736.3 | 275.9 | |
| 0.00 | 2.78 | 0.00 | 2.54 | 9.62 | 242.34 | -54.78 | 73.62 | 0.8417 | 401.0 | 239.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
