SDO HMI 2014-03-15 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.87 | 14.15 | 0.95 | 14.76 | -9.77 | 358.78 | 62.21 | 262.61 | 0.8799 | 57.0 | 310.3 | |
|
previous
or next observation for the same group /

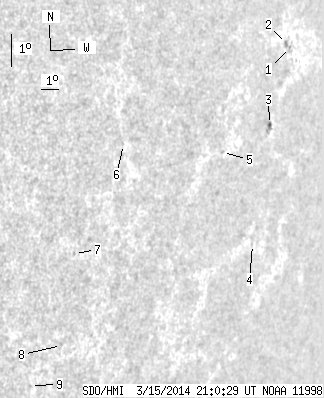

back to the solar disc SDO HMI 2014-03-15 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.43 | 0.00 | 2.72 | -7.14 | 0.91 | 64.34 | 265.54 | 0.8990 | 512.0 | 500.5 | |
| 0.00 | 2.17 | 0.00 | 2.41 | -7.05 | 0.68 | 64.11 | 265.67 | 0.8973 | 604.0 | 497.2 | |
| 0.87 | 5.30 | 0.95 | 5.78 | -9.54 | 0.24 | 63.67 | 262.91 | 0.8926 | 502.7 | 420.3 | |
| 0.00 | 0.35 | 0.00 | 0.38 | -13.15 | 0.53 | 63.96 | 258.85 | 0.8937 | 225.0 | 223.2 | |
| 0.00 | 1.30 | 0.00 | 1.30 | -10.68 | 357.54 | 60.97 | 261.76 | 0.8702 | 508.0 | 398.5 | |
| 0.00 | 0.43 | 0.00 | 0.37 | -11.03 | 351.90 | 55.33 | 261.54 | 0.8184 | -536.0 | -491.0 | |
| 0.00 | 0.96 | 0.00 | 0.79 | -14.48 | 350.40 | 53.83 | 257.25 | 0.8036 | -511.0 | -407.5 | |
| 0.00 | 0.52 | 0.00 | 0.44 | -17.26 | 350.80 | 54.23 | 253.82 | 0.8090 | -137.0 | -222.5 | |
| 0.00 | 0.69 | 0.00 | 0.57 | -18.60 | 349.74 | 53.17 | 252.06 | 0.7996 | -632.0 | -534.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
