SDO HMI 2014-03-15 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.16 | 151.32 | 49.58 | 294.19 | 11.12 | 9.62 | 73.05 | 283.61 | 0.9663 | 25.2 | -111.6 | |
|
previous
or next observation for the same group /

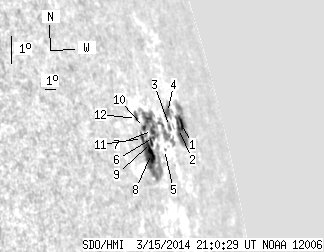

back to the solar disc SDO HMI 2014-03-15 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.65 | 33.79 | 8.62 | 79.46 | 11.85 | 12.55 | 75.98 | 283.81 | 0.9787 | 11.6 | -66.9 | |
| 1.13 | -1.00 | 2.56 | -1.00 | 11.63 | 11.98 | 75.41 | 283.68 | 0.9766 | -461.5 | 999999 | |
| 0.00 | 3.47 | 0.00 | 7.20 | 11.55 | 10.85 | 74.28 | 283.81 | 0.9723 | -503.0 | -423.3 | |
| 2.87 | 8.17 | 6.02 | 17.32 | 12.00 | 10.97 | 74.40 | 284.24 | 0.9730 | -361.4 | -357.9 | |
| 0.00 | 1.04 | 0.00 | 2.00 | 10.70 | 9.72 | 73.15 | 283.15 | 0.9669 | -173.0 | -186.8 | |
| 0.96 | 101.03 | 1.72 | 181.81 | 10.95 | 8.73 | 72.17 | 283.59 | 0.9628 | -292.6 | -108.8 | |
| 3.39 | -6.00 | 6.16 | -6.00 | 11.17 | 8.77 | 72.20 | 283.81 | 0.9631 | -535.7 | 999999 | |
| 8.17 | -6.00 | 14.17 | -6.00 | 10.39 | 8.21 | 71.64 | 283.12 | 0.9598 | 532.1 | 999999 | |
| 2.08 | -6.00 | 3.68 | -6.00 | 10.76 | 8.42 | 71.85 | 283.46 | 0.9611 | 27.0 | 999999 | |
| 1.65 | -6.00 | 2.85 | -6.00 | 11.17 | 7.98 | 71.41 | 283.96 | 0.9595 | -99.2 | 999999 | |
| 1.65 | -6.00 | 2.78 | -6.00 | 10.78 | 7.56 | 70.99 | 283.64 | 0.9571 | 522.8 | 999999 | |
| 0.61 | 3.82 | 1.02 | 6.40 | 11.37 | 7.34 | 70.77 | 284.30 | 0.9566 | 224.1 | 205.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
