SDO HMI 2014-03-15 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.38 | 21.97 | 3.99 | 11.94 | 12.84 | 282.78 | -13.79 | 34.40 | 0.4125 | 98.0 | 225.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-15 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

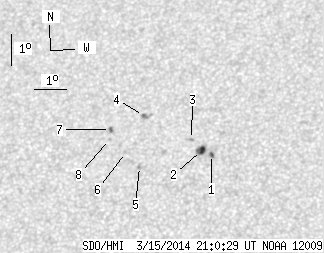

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.30 | 2.43 | 0.70 | 1.31 | 12.38 | 284.22 | -12.34 | 32.19 | 0.3937 | -980.6 | -785.0 | |
| 4.60 | 7.21 | 2.48 | 3.89 | 12.52 | 283.91 | -12.66 | 32.66 | 0.3983 | -961.7 | -617.5 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 12.88 | 283.57 | -13.00 | 32.84 | 0.4059 | -672.0 | -510.2 | |
| 0.61 | 4.69 | 0.33 | 2.57 | 13.69 | 282.01 | -14.56 | 34.74 | 0.4303 | 934.0 | 751.6 | |
| 0.00 | 1.82 | 0.00 | 0.99 | 12.08 | 281.98 | -14.59 | 37.11 | 0.4100 | 812.0 | 654.1 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 12.53 | 281.51 | -15.06 | 37.30 | 0.4202 | 538.0 | 454.8 | |
| 0.87 | 2.17 | 0.48 | 1.19 | 13.28 | 280.99 | -15.58 | 37.16 | 0.4345 | 904.6 | 719.4 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 12.97 | 280.98 | -15.59 | 37.63 | 0.4307 | 791.0 | 589.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
