SDO HMI 2014-03-15 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.96 | 12.00 | 1.08 | 12.56 | -8.47 | 357.73 | 62.26 | 264.13 | 0.8779 | 114.0 | 230.3 | |
|
previous
or next observation for the same group /

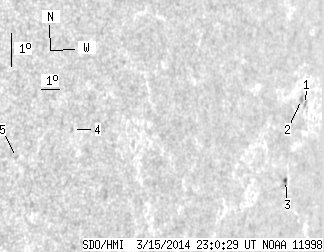

back to the solar disc SDO HMI 2014-03-15 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 2.74 | -7.16 | 0.98 | 65.51 | 265.42 | 0.9076 | 479.0 | 408.3 | |
| 0.00 | 2.61 | 0.00 | 3.01 | -7.05 | 0.66 | 65.19 | 265.57 | 0.9054 | 536.0 | 453.8 | |
| 0.96 | 3.74 | 1.08 | 4.23 | -9.53 | 0.28 | 64.81 | 262.85 | 0.9013 | 371.6 | 344.0 | |
| 0.00 | 1.82 | 0.00 | 1.46 | -9.31 | 347.76 | 52.29 | 263.77 | 0.7876 | -459.0 | -384.4 | |
| 0.00 | 1.48 | 0.00 | 1.12 | -10.39 | 345.28 | 49.81 | 262.44 | 0.7603 | -378.0 | -324.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
