SDO HMI 2014-03-15 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.02 | 645.00 | 81.72 | 376.84 | -17.95 | 326.08 | 30.61 | 246.72 | 0.5284 | 87.9 | 109.9 | |
|
previous
or next observation for the same group /

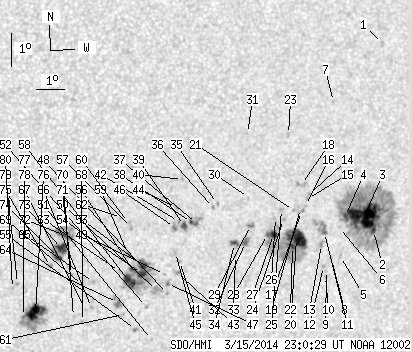

back to the solar disc SDO HMI 2014-03-15 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.43 | 0.00 | 1.45 | -11.85 | 329.47 | 34.00 | 259.39 | 0.5590 | 570.0 | 520.5 | |
| 1.82 | 261.21 | 1.11 | 157.85 | -17.46 | 330.13 | 34.66 | 249.78 | 0.5804 | 650.1 | 297.2 | |
| 39.36 | -2.00 | 23.75 | -2.00 | -17.03 | 329.70 | 34.23 | 250.35 | 0.5733 | 965.7 | 999999 | |
| 2.43 | -2.00 | 1.46 | -2.00 | -17.08 | 328.99 | 33.52 | 250.01 | 0.5639 | 1111.8 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.20 | -18.33 | 329.07 | 33.60 | 247.90 | 0.5692 | 450.0 | 472.9 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -17.45 | 328.84 | 33.38 | 249.31 | 0.5632 | 612.0 | 467.2 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -13.69 | 327.95 | 32.48 | 255.73 | 0.5404 | 575.0 | 459.1 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -18.41 | 328.74 | 33.28 | 247.62 | 0.5652 | 755.0 | 575.5 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -18.78 | 328.64 | 33.17 | 246.93 | 0.5652 | 566.0 | 516.5 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -18.97 | 328.64 | 33.17 | 246.62 | 0.5660 | 667.0 | 591.0 | |
| 0.96 | 12.25 | 0.57 | 7.28 | -17.64 | 328.32 | 32.85 | 248.77 | 0.5568 | 808.1 | 741.1 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -18.67 | 328.50 | 33.03 | 247.06 | 0.5630 | 736.0 | 566.2 | |
| 0.00 | 3.22 | 0.00 | 1.92 | -18.01 | 328.28 | 32.82 | 248.11 | 0.5576 | 784.0 | 613.9 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -16.50 | 327.54 | 32.08 | 250.48 | 0.5424 | 617.0 | 558.9 | |
| 0.00 | 1.65 | 0.00 | 0.97 | -16.66 | 327.50 | 32.03 | 250.18 | 0.5422 | 759.0 | 665.4 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -16.87 | 327.47 | 32.00 | 249.78 | 0.5425 | 560.0 | 520.1 | |
| 0.00 | 2.43 | 0.00 | 1.43 | -17.06 | 327.35 | 31.89 | 249.39 | 0.5416 | 832.0 | 709.0 | |
| 0.00 | 5.04 | 0.00 | 2.95 | -16.25 | 327.20 | 31.74 | 250.80 | 0.5369 | 641.0 | 637.8 | |
| 0.00 | 0.43 | 0.00 | 0.26 | -16.98 | 327.30 | 31.83 | 249.53 | 0.5406 | 582.0 | 672.0 | |
| 23.11 | 98.54 | 13.63 | 57.95 | -17.89 | 327.33 | 31.86 | 247.91 | 0.5443 | 902.0 | 387.7 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -17.05 | 327.06 | 31.59 | 249.29 | 0.5375 | 820.0 | 743.1 | |
| 4.08 | -20.00 | 2.41 | -20.00 | -18.14 | 327.23 | 31.77 | 247.42 | 0.5440 | 790.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.06 | -14.78 | 326.48 | 31.02 | 253.27 | 0.5224 | 718.0 | 552.5 | |
| 0.00 | 1.39 | 0.00 | 0.81 | -17.34 | 326.75 | 31.28 | 248.62 | 0.5344 | 876.0 | 767.6 | |
| 0.00 | 1.74 | 0.00 | 1.01 | -17.05 | 326.62 | 31.15 | 249.10 | 0.5315 | 845.0 | 690.7 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -17.30 | 326.45 | 30.98 | 248.56 | 0.5301 | 217.0 | 198.4 | |
| 4.08 | -20.00 | 2.39 | -20.00 | -17.82 | 326.47 | 31.00 | 247.63 | 0.5324 | 982.9 | 999999 | |
| 1.13 | -20.00 | 0.66 | -20.00 | -17.83 | 326.25 | 30.79 | 247.50 | 0.5295 | 951.6 | 999999 | |
| 0.00 | 3.30 | 0.00 | 1.91 | -17.60 | 325.59 | 30.13 | 247.61 | 0.5195 | 979.0 | 797.9 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -16.76 | 325.37 | 29.90 | 249.07 | 0.5132 | 754.0 | 654.1 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -14.84 | 325.03 | 29.56 | 252.62 | 0.5017 | 779.0 | 654.6 | |
| 1.82 | 4.95 | 1.06 | 2.87 | -18.12 | 325.51 | 30.04 | 246.59 | 0.5205 | 960.4 | 828.9 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -18.53 | 325.22 | 29.76 | 245.67 | 0.5185 | 560.0 | 514.9 | |
| 2.35 | 5.21 | 1.35 | 3.01 | -18.17 | 325.12 | 29.65 | 246.29 | 0.5155 | 993.0 | 799.8 | |
| 0.00 | 1.56 | 0.00 | 0.89 | -17.00 | 324.30 | 28.84 | 248.07 | 0.4992 | -295.0 | -315.9 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -17.13 | 324.18 | 28.72 | 247.76 | 0.4981 | -626.0 | -556.8 | |
| 0.87 | 9.30 | 0.49 | 5.28 | -17.65 | 323.66 | 28.20 | 246.47 | 0.4931 | -466.2 | -205.7 | |
| 1.22 | -37.00 | 0.69 | -37.00 | -17.63 | 323.48 | 28.02 | 246.41 | 0.4905 | -535.7 | 999999 | |
| 2.35 | 4.17 | 1.33 | 2.36 | -17.73 | 323.25 | 27.79 | 246.07 | 0.4878 | -791.7 | -658.5 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -16.35 | 322.96 | 27.50 | 248.65 | 0.4776 | 706.0 | 552.2 | |
| 0.00 | 1.48 | 0.00 | 0.84 | -18.83 | 323.27 | 27.80 | 243.95 | 0.4933 | -642.0 | -548.5 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -17.62 | 323.02 | 27.56 | 246.14 | 0.4841 | -790.0 | -745.8 | |
| 0.00 | 2.52 | 0.00 | 1.43 | -19.17 | 323.22 | 27.75 | 243.27 | 0.4945 | -734.0 | -613.7 | |
| 0.00 | 2.26 | 0.00 | 1.27 | -17.20 | 322.88 | 27.42 | 246.89 | 0.4802 | -621.0 | -499.3 | |
| 0.00 | 1.74 | 0.00 | 0.99 | -18.56 | 323.08 | 27.61 | 244.33 | 0.4894 | -736.0 | -602.5 | |
| 0.00 | 3.22 | 0.00 | 1.82 | -17.81 | 322.91 | 27.45 | 245.70 | 0.4834 | -922.0 | -770.8 | |
| 0.35 | 2.17 | 0.20 | 1.24 | -19.52 | 322.96 | 27.50 | 242.43 | 0.4929 | 515.8 | 219.8 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -19.82 | 323.02 | 27.55 | 241.89 | 0.4954 | 613.0 | 558.0 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -19.25 | 322.81 | 27.34 | 242.83 | 0.4894 | -523.0 | -412.7 | |
| 0.00 | 6.43 | 0.00 | 3.65 | -19.75 | 322.61 | 27.15 | 241.74 | 0.4895 | 300.0 | 212.0 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -21.26 | 322.72 | 27.26 | 239.01 | 0.4999 | 590.0 | 476.7 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -20.26 | 322.35 | 26.88 | 240.58 | 0.4890 | -450.0 | -404.0 | |
| 6.17 | 64.91 | 3.47 | 36.57 | -19.02 | 321.99 | 26.52 | 242.70 | 0.4770 | -886.8 | -443.7 | |
| 6.43 | -53.00 | 3.62 | -53.00 | -19.26 | 321.99 | 26.53 | 242.23 | 0.4785 | -856.5 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -20.98 | 322.09 | 26.63 | 239.03 | 0.4900 | -757.0 | -637.8 | |
| 1.30 | -53.00 | 0.73 | -53.00 | -19.16 | 321.66 | 26.19 | 242.19 | 0.4733 | -1068.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -17.89 | 321.42 | 25.95 | 244.56 | 0.4630 | -599.0 | -579.5 | |
| 10.34 | -53.00 | 5.81 | -53.00 | -19.53 | 321.62 | 26.15 | 241.43 | 0.4749 | -865.6 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.22 | -18.71 | 321.44 | 25.98 | 242.92 | 0.4679 | -784.0 | -735.4 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -17.74 | 321.29 | 25.82 | 244.77 | 0.4605 | -701.0 | -566.1 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -20.55 | 321.58 | 26.12 | 239.45 | 0.4807 | -611.0 | -459.5 | |
| 0.00 | 1.39 | 0.00 | 0.77 | -17.61 | 321.02 | 25.56 | 244.87 | 0.4561 | -700.0 | -600.8 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -19.24 | 321.22 | 25.75 | 241.69 | 0.4678 | -775.0 | -566.7 | |
| 0.00 | 7.21 | 0.00 | 4.05 | -20.19 | 321.31 | 25.84 | 239.91 | 0.4748 | -759.0 | -640.0 | |
| 0.00 | 1.65 | 0.00 | 0.92 | -19.62 | 320.37 | 24.90 | 240.25 | 0.4587 | -931.0 | -674.8 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -20.39 | 320.43 | 24.96 | 238.79 | 0.4644 | -685.0 | -543.8 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -20.46 | 320.23 | 24.76 | 238.48 | 0.4623 | -578.0 | -526.1 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -20.83 | 320.19 | 24.72 | 237.72 | 0.4643 | -625.0 | -497.8 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -19.73 | 320.00 | 24.54 | 239.72 | 0.4545 | -712.0 | -661.0 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -20.69 | 319.85 | 24.38 | 237.68 | 0.4589 | -673.0 | -554.3 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -19.42 | 319.57 | 24.10 | 239.99 | 0.4467 | -633.0 | -519.8 | |
| 2.78 | 19.20 | 1.53 | 10.54 | -18.25 | 319.15 | 23.69 | 242.08 | 0.4336 | -1068.1 | -611.7 | |
| 7.30 | 19.99 | 4.01 | 10.98 | -18.64 | 319.11 | 23.64 | 241.19 | 0.4355 | -991.1 | -845.3 | |
| 2.52 | -73.00 | 1.39 | -73.00 | -18.92 | 319.05 | 23.58 | 240.55 | 0.4364 | -885.6 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -19.21 | 318.81 | 23.35 | 239.74 | 0.4351 | -877.0 | -722.2 | |
| 17.90 | 47.97 | 9.87 | 26.46 | -20.63 | 318.52 | 23.05 | 236.53 | 0.4411 | -989.2 | -416.4 | |
| 0.35 | -76.00 | 0.19 | -76.00 | -20.77 | 318.12 | 22.66 | 235.85 | 0.4370 | -792.5 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -19.89 | 317.99 | 22.52 | 237.53 | 0.4287 | -816.0 | -661.5 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -19.78 | 317.76 | 22.30 | 237.54 | 0.4249 | -876.0 | -777.2 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -19.94 | 317.62 | 22.15 | 237.05 | 0.4242 | -816.0 | -655.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
