SDO HMI 2014-03-16 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.81 | 596.55 | 69.98 | 381.70 | 11.83 | 260.81 | -34.11 | 60.51 | 0.6287 | -689.6 | -319.8 | |
|
previous
or next observation for the same group /

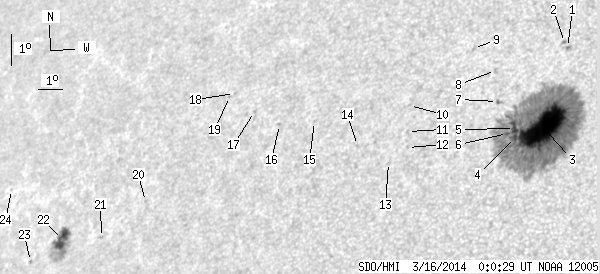

back to the solar disc SDO HMI 2014-03-16 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.60 | 14.48 | 263.50 | -31.41 | 55.17 | 0.6171 | 707.0 | 654.5 | |
| 0.00 | 1.65 | 0.00 | 1.04 | 14.65 | 263.37 | -31.55 | 55.06 | 0.6199 | 586.0 | 442.1 | |
| 81.43 | 534.14 | 50.56 | 332.06 | 11.98 | 263.00 | -31.92 | 59.11 | 0.6050 | -1358.7 | -394.4 | |
| 2.00 | -3.00 | 1.25 | -3.00 | 11.73 | 262.02 | -32.90 | 60.22 | 0.6150 | -750.4 | 999999 | |
| 5.48 | -3.00 | 3.44 | -3.00 | 12.02 | 261.94 | -32.97 | 59.87 | 0.6178 | -599.3 | 999999 | |
| 1.30 | -3.00 | 0.82 | -3.00 | 11.88 | 261.71 | -33.21 | 60.25 | 0.6196 | -344.0 | 999999 | |
| 0.35 | 2.69 | 0.22 | 1.72 | 12.93 | 261.19 | -33.73 | 59.16 | 0.6326 | -544.5 | -410.1 | |
| 0.00 | 1.48 | 0.00 | 0.95 | 13.93 | 260.95 | -33.96 | 57.97 | 0.6419 | -609.0 | -569.9 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 14.70 | 260.00 | -34.92 | 57.65 | 0.6578 | -625.0 | -486.0 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 13.06 | 257.85 | -37.06 | 61.32 | 0.6715 | -413.0 | -379.3 | |
| 0.00 | 1.13 | 0.00 | 0.75 | 12.23 | 257.92 | -37.00 | 62.39 | 0.6660 | -524.0 | -435.1 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 11.72 | 258.00 | -36.92 | 63.04 | 0.6622 | -741.0 | -627.4 | |
| 0.00 | 0.61 | 0.00 | 0.40 | 11.30 | 257.33 | -37.58 | 64.02 | 0.6676 | -621.0 | -576.0 | |
| 0.00 | 0.96 | 0.00 | 0.65 | 11.94 | 256.03 | -38.89 | 63.94 | 0.6861 | -478.0 | -391.4 | |
| 0.00 | 1.22 | 0.00 | 0.86 | 12.86 | 254.14 | -40.77 | 63.83 | 0.7118 | -482.0 | -420.3 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 12.89 | 252.70 | -42.21 | 64.57 | 0.7276 | 557.0 | 541.8 | |
| 0.00 | 1.13 | 0.00 | 0.83 | 13.40 | 251.54 | -43.37 | 64.53 | 0.7423 | 567.0 | 475.1 | |
| 0.00 | 0.61 | 0.00 | 0.46 | 14.06 | 250.53 | -44.38 | 64.23 | 0.7558 | 643.0 | 526.3 | |
| 0.00 | 0.87 | 0.00 | 0.66 | 13.99 | 250.34 | -44.58 | 64.42 | 0.7574 | 571.0 | 482.8 | |
| 0.00 | 0.78 | 0.00 | 0.61 | 10.97 | 247.31 | -47.60 | 69.48 | 0.7764 | 540.0 | 469.6 | |
| 0.00 | 1.65 | 0.00 | 1.33 | 10.03 | 245.49 | -49.43 | 71.33 | 0.7918 | 604.0 | 506.5 | |
| 16.25 | 40.93 | 13.69 | 34.46 | 10.16 | 243.59 | -51.32 | 71.86 | 0.8108 | 753.7 | 417.8 | |
| 0.00 | 1.30 | 0.00 | 1.13 | 9.63 | 242.13 | -52.79 | 72.98 | 0.8233 | 445.0 | 384.5 | |
| 0.00 | 0.78 | 0.00 | 0.72 | 12.03 | 240.52 | -54.39 | 70.74 | 0.8444 | 236.0 | 201.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
