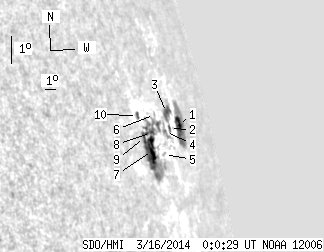

SDO HMI 2014-03-16 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.42 | 124.62 | 62.77 | 274.28 | 11.20 | 9.93 | 75.01 | 283.33 | 0.9742 | -8.0 | -36.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-16 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.04 | 30.94 | 18.92 | 84.24 | 11.82 | 12.41 | 77.49 | 283.52 | 0.9836 | -110.1 | 5.7 | |
| 1.04 | 14.08 | 2.46 | 33.70 | 11.51 | 10.91 | 75.99 | 283.46 | 0.9786 | -350.7 | -294.9 | |
| 5.13 | -2.00 | 12.27 | -2.00 | 12.01 | 10.95 | 76.04 | 283.96 | 0.9790 | -312.6 | 999999 | |
| 0.00 | 5.82 | 0.00 | 13.01 | 11.34 | 10.27 | 75.35 | 283.40 | 0.9762 | -468.0 | -464.4 | |
| 0.00 | 1.30 | 0.00 | 2.74 | 10.54 | 9.56 | 74.64 | 282.72 | 0.9729 | -129.0 | -130.2 | |
| 0.00 | 1.22 | 0.00 | 2.55 | 11.75 | 9.28 | 74.36 | 283.99 | 0.9727 | -403.0 | -385.7 | |
| 11.39 | 68.22 | 21.82 | 132.48 | 10.50 | 8.19 | 73.27 | 282.92 | 0.9673 | 345.1 | 39.9 | |
| 1.91 | -7.00 | 3.78 | -7.00 | 11.09 | 8.47 | 73.55 | 283.47 | 0.9689 | -414.8 | 999999 | |
| 0.87 | -7.00 | 1.61 | -7.00 | 10.82 | 7.55 | 72.63 | 283.37 | 0.9648 | 490.8 | 999999 | |
| 1.04 | 3.04 | 1.91 | 5.56 | 11.47 | 7.24 | 72.33 | 284.09 | 0.9640 | 264.0 | 175.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
