SDO HMI 2014-03-16 01:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.77 | 628.82 | 83.30 | 371.31 | -17.98 | 326.04 | 31.68 | 247.22 | 0.5427 | 167.2 | 82.9 | |
|
previous
or next observation for the same group /

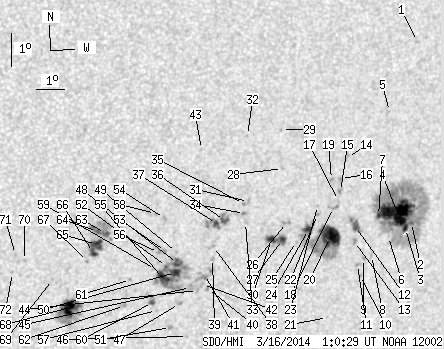

back to the solar disc SDO HMI 2014-03-16 01:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.74 | 0.00 | 1.05 | -11.86 | 329.52 | 35.16 | 259.53 | 0.5753 | 725.0 | 596.7 | |
| 1.30 | 247.04 | 0.80 | 151.26 | -17.28 | 330.30 | 35.93 | 250.51 | 0.5966 | 271.1 | 287.7 | |
| 2.52 | -2.00 | 1.55 | -2.00 | -17.48 | 330.11 | 35.74 | 250.12 | 0.5947 | 596.5 | 999999 | |
| 38.42 | -2.00 | 23.48 | -2.00 | -17.02 | 329.70 | 35.34 | 250.75 | 0.5880 | 918.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -14.02 | 328.82 | 34.45 | 255.64 | 0.5688 | 610.0 | 511.0 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -17.76 | 329.52 | 35.15 | 249.45 | 0.5878 | 267.0 | 258.4 | |
| 1.56 | -2.00 | 0.95 | -2.00 | -17.16 | 329.01 | 34.64 | 250.28 | 0.5792 | 912.0 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.95 | -18.38 | 329.01 | 34.64 | 248.23 | 0.5831 | 617.0 | 488.4 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -18.49 | 328.73 | 34.36 | 247.93 | 0.5798 | 703.0 | 653.9 | |
| 0.00 | 1.39 | 0.00 | 0.85 | -19.01 | 328.74 | 34.37 | 247.06 | 0.5818 | 559.0 | 468.9 | |
| 0.00 | 1.91 | 0.00 | 1.16 | -18.69 | 328.55 | 34.18 | 247.52 | 0.5781 | 677.0 | 530.5 | |
| 4.09 | 11.82 | 2.46 | 7.11 | -17.55 | 328.22 | 33.85 | 249.33 | 0.5699 | 839.2 | 689.7 | |
| 0.00 | 2.26 | 0.00 | 1.36 | -18.00 | 328.28 | 33.91 | 248.58 | 0.5722 | 704.0 | 604.0 | |
| 0.00 | 2.26 | 0.00 | 1.34 | -15.49 | 327.52 | 33.15 | 252.67 | 0.5542 | 611.0 | 513.6 | |
| 0.00 | 2.43 | 0.00 | 1.45 | -16.53 | 327.45 | 33.09 | 250.81 | 0.5563 | 753.0 | 660.5 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -16.14 | 327.38 | 33.01 | 251.47 | 0.5541 | 629.0 | 636.6 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -16.81 | 327.43 | 33.06 | 250.32 | 0.5568 | 622.0 | 559.3 | |
| 0.00 | 3.65 | 0.00 | 2.17 | -17.03 | 327.29 | 32.92 | 249.87 | 0.5556 | 700.0 | 643.4 | |
| 0.00 | 1.74 | 0.00 | 1.03 | -16.19 | 327.05 | 32.69 | 251.27 | 0.5498 | 694.0 | 589.8 | |
| 29.47 | 95.01 | 17.58 | 56.52 | -17.91 | 327.36 | 32.99 | 248.36 | 0.5596 | 819.8 | 385.4 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -20.37 | 327.80 | 33.43 | 244.38 | 0.5750 | 559.0 | 404.0 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -17.28 | 326.74 | 32.38 | 249.21 | 0.5491 | 856.0 | 710.5 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -17.01 | 326.69 | 32.32 | 249.67 | 0.5474 | 774.0 | 623.0 | |
| 4.69 | -20.00 | 2.77 | -20.00 | -17.75 | 326.50 | 32.14 | 248.27 | 0.5475 | 975.6 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -18.14 | 326.14 | 31.77 | 247.42 | 0.5441 | 233.0 | 187.8 | |
| 0.00 | 2.17 | 0.00 | 1.27 | -17.59 | 325.66 | 31.30 | 248.18 | 0.5355 | 885.0 | 727.4 | |
| 2.78 | 15.12 | 1.63 | 8.85 | -18.11 | 325.62 | 31.25 | 247.22 | 0.5369 | 849.1 | 726.5 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -15.97 | 325.22 | 30.86 | 250.97 | 0.5237 | 644.0 | 510.7 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -14.81 | 325.00 | 30.63 | 253.08 | 0.5169 | 667.0 | 587.2 | |
| 4.26 | -27.00 | 2.49 | -27.00 | -18.13 | 325.22 | 30.85 | 246.98 | 0.5316 | 969.5 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -17.04 | 324.18 | 29.81 | 248.50 | 0.5130 | -445.0 | -405.9 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -15.06 | 323.82 | 29.46 | 252.15 | 0.5009 | 607.0 | 534.2 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -17.68 | 324.19 | 29.82 | 247.30 | 0.5156 | 149.0 | 141.5 | |
| 0.00 | 1.83 | 0.00 | 1.05 | -17.41 | 324.10 | 29.74 | 247.76 | 0.5134 | -558.0 | -369.7 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -17.11 | 324.01 | 29.65 | 248.28 | 0.5109 | -736.0 | -645.1 | |
| 2.69 | 6.87 | 1.54 | 3.94 | -17.66 | 323.43 | 29.06 | 246.93 | 0.5051 | -605.1 | -464.1 | |
| 2.26 | 9.47 | 1.29 | 5.41 | -17.77 | 323.16 | 28.79 | 246.58 | 0.5019 | -766.9 | -686.4 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -18.47 | 323.18 | 28.81 | 245.26 | 0.5054 | -427.0 | -354.7 | |
| 0.00 | 2.17 | 0.00 | 1.25 | -18.83 | 323.21 | 28.84 | 244.59 | 0.5075 | -598.0 | -510.8 | |
| 0.00 | 1.83 | 0.00 | 1.05 | -19.75 | 323.21 | 28.84 | 242.88 | 0.5121 | 672.0 | 575.2 | |
| 0.00 | 11.65 | 0.00 | 6.69 | -19.33 | 323.02 | 28.65 | 243.53 | 0.5074 | -51.0 | -166.7 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -19.64 | 323.00 | 28.64 | 242.96 | 0.5088 | 646.0 | 475.2 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -15.57 | 322.28 | 27.91 | 250.45 | 0.4805 | 696.0 | 523.5 | |
| 0.00 | 1.39 | 0.00 | 0.80 | -19.83 | 322.86 | 28.49 | 242.51 | 0.5079 | 216.0 | 251.9 | |
| 0.00 | 3.82 | 0.00 | 2.19 | -19.76 | 322.59 | 28.23 | 242.47 | 0.5040 | 228.0 | 76.7 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -21.26 | 322.79 | 28.42 | 239.86 | 0.5149 | 603.0 | 376.3 | |
| 0.00 | 2.35 | 0.00 | 1.34 | -20.27 | 322.30 | 27.93 | 241.33 | 0.5028 | 60.0 | -22.5 | |
| 4.43 | 68.32 | 2.52 | 38.84 | -19.05 | 322.00 | 27.63 | 243.40 | 0.4922 | -833.8 | -445.5 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -18.72 | 321.90 | 27.54 | 243.98 | 0.4892 | -643.0 | -542.9 | |
| 6.00 | -48.00 | 3.41 | -48.00 | -19.33 | 321.98 | 27.61 | 242.86 | 0.4934 | -755.7 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.34 | -21.02 | 322.12 | 27.75 | 239.82 | 0.5049 | -690.0 | -607.1 | |
| 0.70 | -48.00 | 0.39 | -48.00 | -19.17 | 321.63 | 27.26 | 242.94 | 0.4878 | -1019.0 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.84 | -18.71 | 321.51 | 27.14 | 243.74 | 0.4838 | -895.0 | -754.8 | |
| 0.00 | 2.52 | 0.00 | 1.42 | -17.72 | 321.31 | 26.94 | 245.57 | 0.4760 | -750.0 | -596.9 | |
| 9.39 | -48.00 | 5.33 | -48.00 | -19.54 | 321.58 | 27.22 | 242.20 | 0.4893 | -855.3 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.03 | -18.76 | 321.27 | 26.90 | 243.49 | 0.4808 | -869.0 | -743.8 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -20.52 | 321.52 | 27.15 | 240.29 | 0.4941 | -448.0 | -382.4 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -17.58 | 320.97 | 26.60 | 245.63 | 0.4706 | -728.0 | -584.4 | |
| 0.00 | 2.09 | 0.00 | 1.18 | -19.28 | 321.25 | 26.89 | 242.46 | 0.4834 | -757.0 | -586.0 | |
| 1.48 | 7.13 | 0.84 | 4.04 | -20.29 | 321.33 | 26.96 | 240.59 | 0.4902 | -630.1 | -576.4 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -19.63 | 320.43 | 26.06 | 241.18 | 0.4743 | -787.0 | -694.1 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -20.43 | 320.36 | 25.99 | 239.57 | 0.4783 | -642.0 | -562.8 | |
| 2.00 | 21.99 | 1.11 | 12.18 | -18.28 | 319.34 | 24.97 | 243.05 | 0.4516 | -846.8 | -526.8 | |
| 1.30 | -63.00 | 0.72 | -63.00 | -18.23 | 319.05 | 24.69 | 242.93 | 0.4474 | -1057.7 | 999999 | |
| 7.65 | 15.73 | 4.24 | 8.72 | -18.62 | 319.08 | 24.71 | 242.13 | 0.4500 | -996.1 | -761.2 | |
| 3.74 | -65.00 | 2.07 | -65.00 | -18.87 | 319.01 | 24.65 | 241.57 | 0.4506 | -976.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -19.16 | 318.85 | 24.48 | 240.85 | 0.4501 | -836.0 | -674.2 | |
| 11.04 | 43.46 | 6.13 | 24.16 | -20.59 | 318.45 | 24.09 | 237.62 | 0.4543 | -1034.9 | -525.9 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -19.76 | 317.73 | 23.36 | 238.62 | 0.4390 | -858.0 | -722.1 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -19.23 | 316.69 | 22.32 | 238.73 | 0.4214 | -724.0 | -629.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -19.06 | 316.36 | 21.99 | 238.77 | 0.4157 | -653.0 | -605.0 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -19.61 | 316.34 | 21.97 | 237.56 | 0.4194 | -797.0 | -595.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
