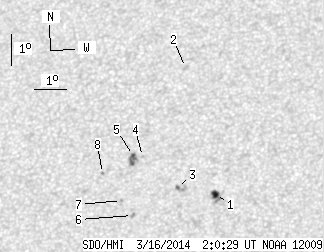

SDO HMI 2014-03-16 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.13 | 28.78 | 2.75 | 15.50 | 13.35 | 283.06 | -10.76 | 27.54 | 0.3947 | 192.8 | 120.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-16 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.65 | 8.78 | 1.95 | 4.68 | 12.54 | 284.51 | -9.31 | 25.21 | 0.3724 | -787.1 | -690.1 | |
| 0.00 | 2.87 | 0.00 | 1.58 | 16.64 | 283.39 | -10.43 | 23.36 | 0.4393 | 217.0 | 274.0 | |
| 0.61 | 5.13 | 0.33 | 2.75 | 12.79 | 283.32 | -10.50 | 27.65 | 0.3845 | -812.6 | -672.4 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 13.80 | 282.18 | -11.64 | 28.87 | 0.4075 | 626.0 | 406.6 | |
| 0.87 | 7.13 | 0.47 | 3.87 | 13.84 | 281.89 | -11.92 | 29.41 | 0.4102 | 830.9 | 887.1 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 11.94 | 281.95 | -11.86 | 31.79 | 0.3835 | 841.0 | 660.3 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 12.42 | 281.59 | -12.23 | 31.89 | 0.3932 | 833.0 | 725.7 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 13.30 | 280.95 | -12.87 | 32.03 | 0.4104 | 757.0 | 610.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
