SDO HMI 2014-03-16 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.56 | 64.61 | 1.77 | 32.46 | -11.17 | 299.00 | 6.27 | 231.28 | 0.1490 | -222.8 | -257.8 | |
|
previous
or next observation for the same group /

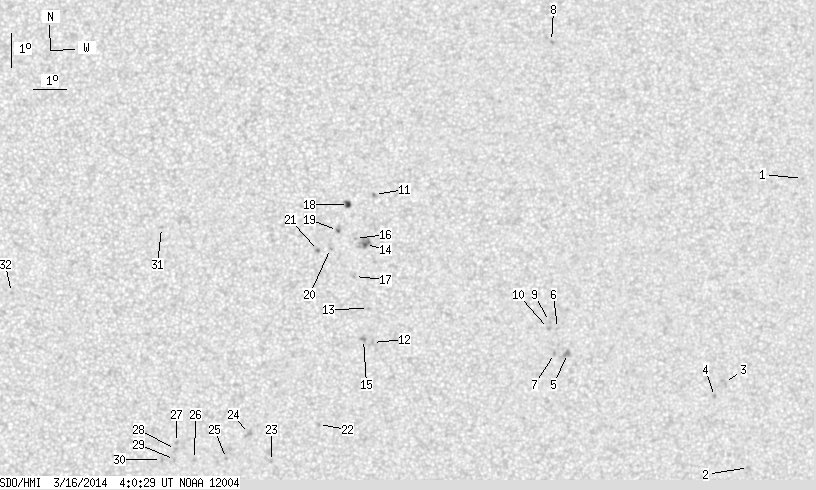

back to the solar disc SDO HMI 2014-03-16 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.41 | -6.57 | 311.72 | 19.00 | 270.61 | 0.3249 | 732.0 | 606.0 | |
| 0.00 | 1.65 | 0.00 | 0.87 | -15.27 | 310.54 | 17.82 | 243.54 | 0.3312 | 739.0 | 552.9 | |
| 0.00 | 2.96 | 0.00 | 1.54 | -12.75 | 309.57 | 16.85 | 250.05 | 0.3022 | 558.0 | 565.4 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -13.18 | 309.28 | 16.56 | 248.39 | 0.2999 | 832.0 | 703.7 | |
| 0.00 | 3.83 | 0.00 | 1.94 | -12.03 | 304.58 | 11.86 | 246.49 | 0.2203 | 1037.0 | 815.9 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -11.29 | 304.24 | 11.52 | 249.19 | 0.2105 | 819.0 | 675.1 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -12.03 | 304.18 | 11.46 | 245.77 | 0.2140 | 1027.0 | 826.4 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -2.73 | 303.86 | 11.14 | 291.21 | 0.2079 | 845.0 | 735.6 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -11.08 | 303.99 | 11.26 | 249.73 | 0.2053 | 796.0 | 696.6 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -11.29 | 303.96 | 11.24 | 248.73 | 0.2061 | 883.0 | 681.3 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -7.38 | 298.55 | 5.83 | 267.38 | 0.1013 | 1022.0 | 899.1 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -11.80 | 298.56 | 5.84 | 230.67 | 0.1294 | -863.0 | -702.8 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -10.79 | 298.42 | 5.70 | 236.76 | 0.1172 | -903.0 | -680.3 | |
| 1.04 | 10.70 | 0.52 | 5.33 | -8.88 | 298.30 | 5.58 | 252.32 | 0.1012 | -1103.6 | -851.3 | |
| 0.00 | 2.78 | 0.00 | 1.39 | -11.72 | 298.28 | 5.56 | 229.86 | 0.1247 | -1101.0 | -858.0 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -8.70 | 297.99 | 5.27 | 253.16 | 0.0953 | -841.0 | -663.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -9.84 | 297.98 | 5.26 | 242.37 | 0.1024 | -715.0 | -452.0 | |
| 2.17 | 4.00 | 1.08 | 1.99 | -7.69 | 297.77 | 5.05 | 263.59 | 0.0881 | 1025.9 | 742.9 | |
| 0.35 | 3.22 | 0.17 | 1.60 | -8.47 | 297.45 | 4.72 | 254.03 | 0.0851 | -783.2 | -650.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -9.01 | 297.24 | 4.52 | 247.22 | 0.0848 | -955.0 | -706.0 | |
| 0.00 | 1.57 | 0.00 | 0.78 | -9.07 | 296.88 | 4.16 | 244.78 | 0.0795 | -1038.0 | -861.7 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -14.27 | 296.95 | 4.23 | 209.90 | 0.1440 | -924.0 | -738.3 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -15.40 | 295.51 | 2.79 | 198.13 | 0.1516 | -768.0 | -531.1 | |
| 0.00 | 4.00 | 0.00 | 2.00 | -14.56 | 294.80 | 2.07 | 195.20 | 0.1342 | -923.0 | -777.7 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -15.31 | 294.12 | 1.40 | 189.43 | 0.1445 | -844.0 | -708.5 | |
| 0.00 | 1.48 | 0.00 | 0.74 | -15.34 | 293.13 | 0.41 | 182.78 | 0.1432 | -909.0 | -673.2 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -14.83 | 292.58 | -0.14 | 178.95 | 0.1341 | -1009.0 | -704.9 | |
| 0.00 | 2.09 | 0.00 | 1.04 | -15.04 | 292.55 | -0.18 | 178.76 | 0.1378 | -870.0 | -689.4 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -15.34 | 292.51 | -0.21 | 178.59 | 0.1431 | -989.0 | -822.7 | |
| 0.00 | 1.83 | 0.00 | 0.91 | -15.34 | 292.11 | -0.61 | 175.88 | 0.1434 | -748.0 | -698.0 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -8.40 | 292.14 | -0.59 | 154.95 | 0.0240 | -757.0 | -620.2 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -10.30 | 287.58 | -5.14 | 122.12 | 0.1046 | -829.0 | -698.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
