SDO HMI 2014-03-16 06:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.87 | 31.75 | 5.81 | 16.94 | 13.04 | 283.11 | -8.52 | 22.65 | 0.3749 | 117.8 | -103.9 | |
|
previous
or next observation for the same group /

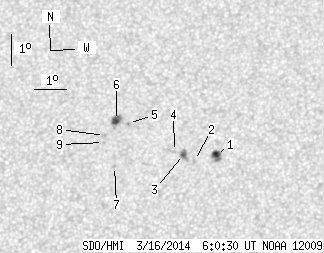

back to the solar disc SDO HMI 2014-03-16 06:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.83 | 8.18 | 2.03 | 4.33 | 12.63 | 284.84 | -6.79 | 18.86 | 0.3584 | -1069.2 | -873.3 | |
| 0.00 | 1.74 | 0.00 | 0.92 | 12.46 | 284.17 | -7.46 | 20.76 | 0.3593 | -748.0 | -658.5 | |
| 2.00 | 6.09 | 1.06 | 3.24 | 12.65 | 283.82 | -7.81 | 21.43 | 0.3643 | -1029.5 | -805.0 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 12.75 | 283.54 | -8.09 | 22.02 | 0.3675 | -695.0 | -445.6 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 13.68 | 282.08 | -9.55 | 24.48 | 0.3905 | 927.0 | 752.6 | |
| 5.04 | 9.13 | 2.72 | 4.92 | 13.78 | 281.70 | -9.92 | 25.22 | 0.3946 | 1007.1 | 741.4 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 12.32 | 281.70 | -9.93 | 26.94 | 0.3734 | 928.0 | 748.0 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 13.31 | 281.35 | -10.28 | 26.54 | 0.3903 | 767.0 | 597.1 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 13.09 | 281.33 | -10.30 | 26.85 | 0.3872 | 734.0 | 630.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
