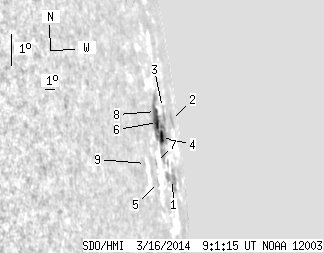

SDO HMI 2014-03-16 09:01:15 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.40 | 72.30 | 37.61 | 265.65 | 5.82 | 11.25 | 81.27 | 276.93 | 0.9909 | 235.3 | -63.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-16 09:01:15 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.44 | 0.00 | 60.01 | 4.77 | 12.46 | 82.48 | 275.71 | 0.9934 | -288.0 | -413.0 | |
| 0.00 | 4.44 | 0.00 | 25.73 | 6.79 | 14.03 | 84.05 | 277.50 | 0.9966 | 18.0 | 2.3 | |
| 0.00 | 1.22 | 0.00 | 4.87 | 6.88 | 11.83 | 81.85 | 277.90 | 0.9927 | -383.0 | -310.6 | |
| 4.00 | 47.93 | 13.88 | 163.09 | 5.84 | 10.83 | 80.85 | 277.00 | 0.9902 | 73.0 | 69.3 | |
| 0.00 | 1.57 | 0.00 | 4.52 | 4.31 | 9.46 | 79.48 | 275.66 | 0.9860 | 322.0 | 238.9 | |
| 6.70 | -4.00 | 21.46 | -4.00 | 6.24 | 10.33 | 80.35 | 277.47 | 0.9891 | 390.1 | 999999 | |
| 0.00 | 1.83 | 0.00 | 5.30 | 4.91 | 9.40 | 79.42 | 276.27 | 0.9861 | 375.0 | 343.5 | |
| 0.70 | -4.00 | 2.27 | -4.00 | 6.55 | 10.18 | 80.20 | 277.81 | 0.9888 | 313.1 | 999999 | |
| 0.00 | 0.87 | 0.00 | 2.13 | 4.65 | 7.59 | 77.61 | 276.28 | 0.9803 | 124.0 | 96.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
