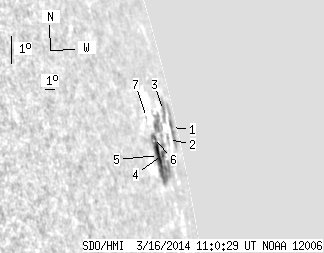

SDO HMI 2014-03-16 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.91 | 86.71 | 36.41 | 342.79 | 11.12 | 9.68 | 80.79 | 282.28 | 0.9912 | 158.6 | -105.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-16 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.78 | 0.00 | 93.04 | 11.87 | 12.51 | 83.62 | 282.61 | 0.9970 | 221.0 | 119.7 | |
| 0.00 | 3.57 | 0.00 | 15.38 | 11.28 | 10.77 | 81.87 | 282.28 | 0.9941 | -497.0 | -493.7 | |
| 0.00 | 8.61 | 0.00 | 40.21 | 12.22 | 11.08 | 82.18 | 283.16 | 0.9949 | -349.0 | -246.4 | |
| 1.48 | 58.97 | 4.89 | 191.94 | 10.56 | 8.69 | 79.80 | 281.87 | 0.9894 | -385.7 | -168.1 | |
| 9.04 | -4.00 | 27.37 | -4.00 | 10.43 | 7.88 | 78.99 | 281.87 | 0.9872 | 268.5 | 999999 | |
| 1.39 | -4.00 | 4.15 | -4.00 | 10.95 | 7.59 | 78.69 | 282.44 | 0.9866 | 334.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 2.22 | 11.50 | 7.05 | 78.16 | 283.07 | 0.9854 | 180.0 | 134.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
