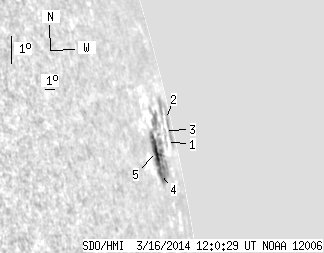

SDO HMI 2014-03-16 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.39 | 85.48 | 42.93 | 360.55 | 11.06 | 9.53 | 81.18 | 282.17 | 0.9921 | 193.8 | -140.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-16 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.96 | 0.00 | 13.76 | 11.19 | 10.74 | 82.39 | 282.11 | 0.9950 | -465.0 | -451.6 | |
| 0.00 | 20.70 | 0.00 | 131.42 | 12.01 | 11.93 | 83.58 | 282.76 | 0.9970 | 50.0 | -11.2 | |
| 0.00 | 1.04 | 0.00 | 5.20 | 11.53 | 10.81 | 82.46 | 282.44 | 0.9952 | -398.0 | -375.9 | |
| 1.65 | 60.78 | 5.26 | 210.17 | 9.85 | 7.91 | 79.57 | 281.20 | 0.9885 | 345.5 | -209.7 | |
| 11.74 | -4.00 | 37.67 | -4.00 | 10.52 | 7.91 | 79.57 | 281.88 | 0.9888 | 209.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
