SDO HMI 2014-03-16 13:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.69 | 39.13 | 5.68 | 20.73 | 13.13 | 283.36 | -4.44 | 12.17 | 0.3563 | 195.2 | -119.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-16 13:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

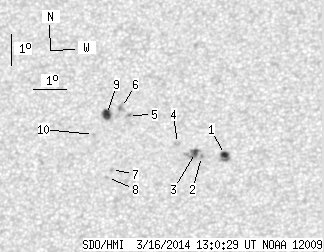

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.30 | 8.52 | 1.74 | 4.49 | 12.63 | 285.21 | -2.58 | 7.41 | 0.3424 | -1013.8 | -783.9 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 12.58 | 284.51 | -3.28 | 9.42 | 0.3431 | -1019.0 | -862.2 | |
| 2.17 | 9.22 | 1.15 | 4.86 | 12.70 | 284.33 | -3.47 | 9.88 | 0.3457 | -1001.8 | -729.8 | |
| 0.00 | 2.78 | 0.00 | 1.47 | 13.00 | 283.77 | -4.03 | 11.25 | 0.3520 | -598.0 | -573.0 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 13.91 | 282.25 | -5.55 | 14.68 | 0.3721 | 926.0 | 830.9 | |
| 0.00 | 4.26 | 0.00 | 2.28 | 14.17 | 282.02 | -5.77 | 15.06 | 0.3771 | 858.0 | 702.0 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 12.20 | 281.76 | -6.03 | 17.28 | 0.3474 | 742.0 | 655.6 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 11.95 | 281.64 | -6.15 | 17.82 | 0.3441 | 968.0 | 753.6 | |
| 5.22 | 7.30 | 2.79 | 3.90 | 13.95 | 281.57 | -6.23 | 16.36 | 0.3757 | 1007.0 | 723.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 13.32 | 281.18 | -6.62 | 17.83 | 0.3677 | 705.0 | 622.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
