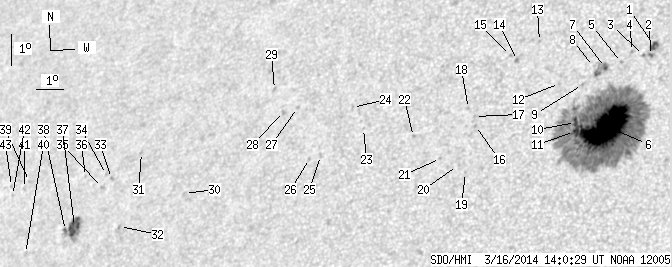

SDO HMI 2014-03-16 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.23 | 619.56 | 64.59 | 365.58 | 12.05 | 260.93 | -26.31 | 53.27 | 0.5387 | -550.5 | -332.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-16 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.78 | 5.91 | 1.62 | 3.43 | 14.55 | 264.28 | -22.96 | 46.38 | 0.5237 | 808.6 | 711.3 | |
| 0.61 | 1.91 | 0.35 | 1.11 | 14.23 | 264.22 | -23.03 | 46.92 | 0.5213 | 816.1 | 649.3 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 14.25 | 263.95 | -23.30 | 47.23 | 0.5243 | 489.0 | 356.5 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 14.39 | 263.56 | -23.69 | 47.48 | 0.5300 | 580.0 | 460.5 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 14.06 | 263.23 | -24.02 | 48.36 | 0.5304 | -678.0 | -513.6 | |
| 86.59 | 529.27 | 49.96 | 305.68 | 12.05 | 262.93 | -24.31 | 51.73 | 0.5150 | -1291.2 | -419.0 | |
| 0.87 | 11.04 | 0.51 | 6.47 | 13.93 | 262.70 | -24.54 | 49.17 | 0.5350 | -839.3 | -592.3 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 13.98 | 262.29 | -24.96 | 49.56 | 0.5401 | -481.0 | -440.8 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 13.43 | 261.98 | -25.27 | 50.72 | 0.5385 | -498.0 | -377.5 | |
| 2.52 | -6.00 | 1.47 | -6.00 | 12.23 | 261.87 | -25.38 | 52.63 | 0.5291 | -589.7 | 999999 | |
| 0.78 | -6.00 | 0.46 | -6.00 | 11.95 | 261.87 | -25.38 | 53.08 | 0.5267 | -762.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 13.51 | 261.19 | -26.06 | 51.47 | 0.5482 | -567.0 | -472.3 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 14.90 | 260.32 | -26.92 | 50.39 | 0.5701 | -552.0 | -448.6 | |
| 0.00 | 2.35 | 0.00 | 1.42 | 14.33 | 259.64 | -27.61 | 51.89 | 0.5729 | -802.0 | -708.4 | |
| 0.00 | 1.30 | 0.00 | 0.79 | 14.51 | 259.37 | -27.88 | 51.91 | 0.5774 | -595.0 | -474.4 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 12.35 | 258.43 | -28.82 | 55.94 | 0.5706 | -817.0 | -774.2 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 12.63 | 258.36 | -28.89 | 55.58 | 0.5737 | -717.0 | -618.4 | |
| 0.00 | 1.30 | 0.00 | 0.79 | 12.90 | 258.11 | -29.14 | 55.41 | 0.5787 | -450.0 | -372.4 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 10.88 | 258.24 | -29.00 | 58.32 | 0.5617 | -621.0 | -517.8 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 11.12 | 257.94 | -29.31 | 58.22 | 0.5672 | -440.0 | -463.5 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 11.38 | 257.31 | -29.93 | 58.38 | 0.5767 | -651.0 | -597.2 | |
| 0.00 | 1.30 | 0.00 | 0.80 | 12.14 | 256.26 | -30.98 | 58.15 | 0.5947 | -664.0 | -580.1 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 12.52 | 254.41 | -32.84 | 59.09 | 0.6192 | -523.0 | -462.4 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 13.22 | 253.90 | -33.34 | 58.50 | 0.6298 | -499.0 | -386.3 | |
| 0.00 | 2.26 | 0.00 | 1.44 | 11.78 | 252.94 | -34.31 | 61.23 | 0.6317 | 502.0 | 346.1 | |
| 0.00 | 1.22 | 0.00 | 0.78 | 11.71 | 252.54 | -34.71 | 61.61 | 0.6360 | 576.0 | 448.7 | |
| 0.00 | 1.39 | 0.00 | 0.91 | 13.38 | 251.83 | -35.41 | 59.81 | 0.6545 | 662.0 | 466.6 | |
| 0.00 | 1.56 | 0.00 | 1.03 | 13.29 | 251.32 | -35.93 | 60.29 | 0.6598 | 699.0 | 630.6 | |
| 0.00 | 1.56 | 0.00 | 1.04 | 14.02 | 250.84 | -36.40 | 59.63 | 0.6697 | 631.0 | 504.6 | |
| 0.00 | 1.74 | 0.00 | 1.18 | 10.99 | 247.87 | -39.37 | 65.54 | 0.6865 | 553.0 | 435.8 | |
| 0.00 | 1.13 | 0.00 | 0.80 | 12.44 | 245.89 | -41.35 | 64.72 | 0.7159 | 524.0 | 462.3 | |
| 0.00 | 1.22 | 0.00 | 0.85 | 10.17 | 245.40 | -41.85 | 67.94 | 0.7109 | 624.0 | 547.8 | |
| 0.00 | 1.30 | 0.00 | 0.93 | 11.72 | 244.80 | -42.45 | 66.22 | 0.7245 | 676.0 | 606.1 | |
| 0.00 | 1.39 | 0.00 | 1.00 | 11.86 | 244.56 | -42.69 | 66.15 | 0.7278 | 506.0 | 376.7 | |
| 0.00 | 1.74 | 0.00 | 1.25 | 11.47 | 244.47 | -42.78 | 66.71 | 0.7270 | 664.0 | 497.4 | |
| 0.00 | 1.04 | 0.00 | 0.76 | 11.88 | 243.68 | -43.57 | 66.57 | 0.7374 | 337.0 | 298.6 | |
| 13.04 | 27.04 | 9.46 | 19.61 | 10.34 | 243.50 | -43.74 | 68.63 | 0.7328 | 758.1 | 536.9 | |
| 1.04 | -37.00 | 0.76 | -37.00 | 10.24 | 243.14 | -44.11 | 68.91 | 0.7364 | 398.3 | 999999 | |
| 0.00 | 1.48 | 0.00 | 1.13 | 11.95 | 241.25 | -46.00 | 67.62 | 0.7634 | 513.0 | 383.4 | |
| 0.00 | 2.09 | 0.00 | 1.56 | 9.68 | 241.52 | -45.73 | 70.34 | 0.7519 | 551.0 | 373.2 | |
| 0.00 | 1.74 | 0.00 | 1.33 | 11.74 | 241.07 | -46.17 | 67.95 | 0.7644 | 560.0 | 498.4 | |
| 0.00 | 0.78 | 0.00 | 0.60 | 11.57 | 240.58 | -46.67 | 68.38 | 0.7689 | 571.0 | 510.0 | |
| 0.00 | 1.22 | 0.00 | 0.94 | 11.86 | 240.47 | -46.78 | 68.07 | 0.7711 | 439.0 | 362.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
