SDO HMI 2014-03-16 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.48 | 33.46 | 7.34 | 207.86 | 5.70 | 11.17 | 84.47 | 276.37 | 0.9968 | 185.7 | -33.2 | |
|
previous
or next observation for the same group /

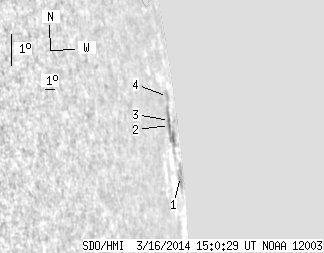

back to the solar disc SDO HMI 2014-03-16 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.04 | 0.00 | 89.15 | 4.84 | 12.39 | 85.70 | 275.35 | 0.9983 | -327.0 | -276.2 | |
| 0.70 | 18.60 | 3.43 | 98.05 | 6.10 | 10.09 | 83.40 | 276.91 | 0.9954 | 262.0 | 191.3 | |
| 0.78 | -2.00 | 3.91 | -2.00 | 6.28 | 10.27 | 83.57 | 277.06 | 0.9957 | 293.0 | 999999 | |
| 0.00 | 3.82 | 0.00 | 20.66 | 7.04 | 10.56 | 83.86 | 277.78 | 0.9963 | 17.0 | 29.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
