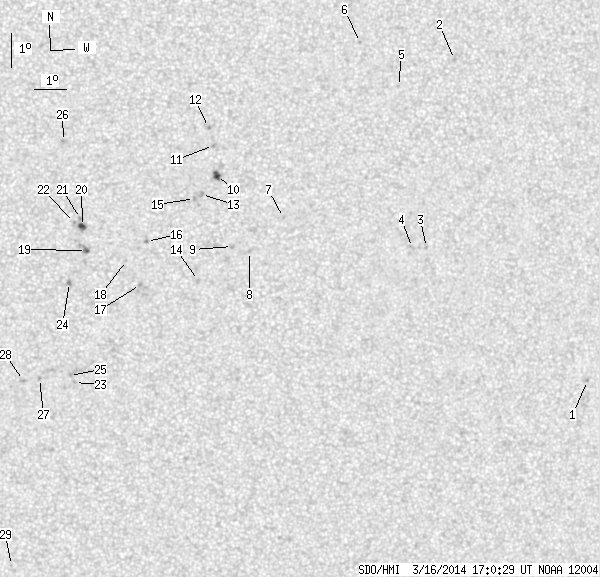

SDO HMI 2014-03-16 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.35 | 52.79 | 3.21 | 26.86 | -10.91 | 297.54 | 11.95 | 249.56 | 0.2219 | -369.8 | -359.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-16 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.67 | -14.72 | 310.72 | 25.13 | 250.75 | 0.4369 | 727.0 | 652.6 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -5.34 | 305.66 | 20.07 | 273.97 | 0.3440 | 903.0 | 714.5 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -10.98 | 305.05 | 19.45 | 257.23 | 0.3367 | 843.0 | 684.2 | |
| 0.00 | 2.52 | 0.00 | 1.32 | -11.00 | 304.60 | 19.01 | 256.95 | 0.3296 | 863.0 | 682.0 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -6.22 | 303.92 | 18.32 | 271.78 | 0.3140 | 777.0 | 627.2 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -4.95 | 302.68 | 17.09 | 276.36 | 0.2959 | 882.0 | 652.4 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -10.24 | 300.47 | 14.87 | 256.98 | 0.2604 | -816.0 | -650.7 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -11.29 | 299.45 | 13.86 | 252.06 | 0.2480 | -784.0 | -569.9 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -11.16 | 298.91 | 13.32 | 252.00 | 0.2387 | -818.0 | -683.4 | |
| 3.13 | 4.95 | 1.59 | 2.52 | -9.05 | 298.33 | 12.74 | 260.49 | 0.2218 | -1101.0 | -817.3 | |
| 0.00 | 1.74 | 0.00 | 0.88 | -8.16 | 298.21 | 12.61 | 264.48 | 0.2182 | -909.0 | -715.8 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -7.63 | 298.04 | 12.44 | 266.91 | 0.2149 | 908.0 | 771.8 | |
| 0.00 | 2.78 | 0.00 | 1.41 | -9.63 | 297.89 | 12.29 | 257.55 | 0.2159 | -959.0 | -816.2 | |
| 0.00 | 1.83 | 0.00 | 0.93 | -12.20 | 297.90 | 12.30 | 246.38 | 0.2284 | -902.0 | -701.4 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -9.75 | 297.68 | 12.08 | 256.78 | 0.2128 | -1021.0 | -858.2 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -11.07 | 296.24 | 10.64 | 248.67 | 0.1955 | 1061.0 | 902.4 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -12.36 | 296.10 | 10.51 | 242.40 | 0.2019 | -999.0 | -765.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -11.65 | 295.64 | 10.05 | 244.73 | 0.1898 | 693.0 | 493.1 | |
| 0.87 | 6.26 | 0.44 | 3.14 | -11.37 | 294.40 | 8.80 | 243.32 | 0.1687 | -1025.6 | -819.1 | |
| 2.35 | 3.74 | 1.18 | 1.88 | -10.66 | 294.26 | 8.66 | 246.96 | 0.1615 | -1159.9 | -997.9 | |
| 0.00 | 1.74 | 0.00 | 0.87 | -10.42 | 294.19 | 8.59 | 248.20 | 0.1590 | -1061.0 | -787.2 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -10.55 | 294.01 | 8.41 | 247.07 | 0.1569 | -986.0 | -776.4 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -15.34 | 294.17 | 8.57 | 224.93 | 0.2044 | -868.0 | -646.4 | |
| 0.00 | 2.17 | 0.00 | 1.09 | -12.34 | 293.90 | 8.31 | 236.90 | 0.1693 | -1104.0 | -865.4 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -15.13 | 294.00 | 8.41 | 225.14 | 0.2000 | -875.0 | -807.3 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -8.14 | 293.62 | 8.02 | 262.29 | 0.1401 | -953.0 | -844.8 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -15.23 | 293.07 | 7.47 | 221.48 | 0.1904 | -1047.0 | -786.5 | |
| 0.00 | 2.35 | 0.00 | 1.18 | -15.30 | 292.57 | 6.98 | 219.34 | 0.1857 | -953.0 | -762.3 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -20.93 | 292.41 | 6.82 | 204.86 | 0.2649 | 822.0 | 640.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
