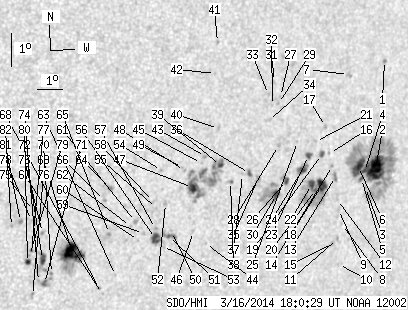

SDO HMI 2014-03-16 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.63 | 523.66 | 69.91 | 344.42 | -17.85 | 325.53 | 40.49 | 250.59 | 0.6561 | 158.8 | 89.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-16 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.96 | -13.63 | 329.34 | 44.30 | 257.74 | 0.6969 | 591.0 | 583.5 | |
| 22.25 | 179.90 | 15.52 | 125.32 | -16.88 | 329.82 | 44.77 | 253.18 | 0.7064 | 930.5 | 259.6 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -17.48 | 329.56 | 44.52 | 252.28 | 0.7044 | 424.0 | 440.0 | |
| 1.30 | -2.00 | 0.90 | -2.00 | -17.01 | 329.37 | 44.33 | 252.92 | 0.7014 | 870.2 | 999999 | |
| 1.39 | -2.00 | 0.96 | -2.00 | -17.23 | 329.31 | 44.26 | 252.60 | 0.7010 | 573.1 | 999999 | |
| 11.73 | -2.00 | 8.09 | -2.00 | -16.88 | 329.07 | 44.03 | 253.05 | 0.6976 | 1016.0 | 999999 | |
| 0.00 | 3.04 | 0.00 | 2.05 | -14.17 | 327.94 | 42.89 | 256.80 | 0.6801 | 593.0 | 445.9 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -18.67 | 328.93 | 43.89 | 250.47 | 0.6991 | 265.0 | 209.0 | |
| 0.00 | 2.00 | 0.00 | 1.37 | -18.24 | 328.62 | 43.57 | 251.03 | 0.6946 | 296.0 | 312.1 | |
| 0.00 | 1.04 | 0.00 | 0.73 | -19.89 | 329.16 | 44.12 | 248.82 | 0.7044 | 519.0 | 431.5 | |
| 0.00 | 1.13 | 0.00 | 0.78 | -19.11 | 328.85 | 43.81 | 249.84 | 0.6992 | 673.0 | 597.3 | |
| 0.00 | 1.48 | 0.00 | 1.01 | -17.94 | 328.48 | 43.44 | 251.42 | 0.6924 | 363.0 | 298.8 | |
| 0.00 | 3.48 | 0.00 | 2.36 | -17.26 | 328.19 | 43.15 | 252.34 | 0.6877 | 764.0 | 531.6 | |
| 0.00 | 1.13 | 0.00 | 0.77 | -16.94 | 327.97 | 42.93 | 252.76 | 0.6845 | 434.0 | 382.8 | |
| 0.00 | 1.83 | 0.00 | 1.26 | -19.28 | 328.69 | 43.65 | 249.56 | 0.6976 | 687.0 | 523.7 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -16.59 | 327.75 | 42.70 | 253.23 | 0.6812 | 448.0 | 377.9 | |
| 0.00 | 1.13 | 0.00 | 0.76 | -15.80 | 327.37 | 42.32 | 254.32 | 0.6752 | 426.0 | 442.5 | |
| 8.08 | 53.54 | 5.46 | 36.05 | -17.58 | 327.68 | 42.64 | 251.78 | 0.6822 | 811.3 | 340.7 | |
| 1.65 | 3.39 | 1.11 | 2.28 | -16.65 | 327.42 | 42.38 | 253.08 | 0.6773 | 713.7 | 528.0 | |
| 1.13 | -18.00 | 0.76 | -18.00 | -17.72 | 327.47 | 42.43 | 251.53 | 0.6799 | 793.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.75 | -16.28 | 327.07 | 42.03 | 253.56 | 0.6724 | 822.0 | 752.8 | |
| 4.08 | -18.00 | 2.74 | -18.00 | -17.58 | 327.26 | 42.22 | 251.69 | 0.6771 | 947.3 | 999999 | |
| 2.26 | 3.91 | 1.51 | 2.61 | -16.72 | 326.90 | 41.85 | 252.87 | 0.6710 | 807.9 | 656.0 | |
| 4.52 | 8.86 | 3.01 | 5.90 | -17.16 | 326.76 | 41.72 | 252.20 | 0.6702 | 907.8 | 743.4 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -16.34 | 326.34 | 41.29 | 253.33 | 0.6633 | 598.0 | 529.0 | |
| 2.52 | 4.95 | 1.66 | 3.27 | -17.54 | 326.20 | 41.16 | 251.50 | 0.6640 | 865.2 | 712.1 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -15.05 | 325.33 | 40.28 | 255.10 | 0.6484 | 400.0 | 394.2 | |
| 0.00 | 1.74 | 0.00 | 1.14 | -16.52 | 325.60 | 40.55 | 252.91 | 0.6544 | 464.0 | 519.9 | |
| 0.00 | 1.30 | 0.00 | 0.85 | -15.26 | 325.29 | 40.25 | 254.76 | 0.6484 | 538.0 | 445.3 | |
| 4.17 | 27.38 | 2.75 | 17.97 | -17.99 | 325.91 | 40.86 | 250.76 | 0.6614 | 886.7 | 533.9 | |
| 0.00 | 1.13 | 0.00 | 0.73 | -14.62 | 324.99 | 39.95 | 255.70 | 0.6434 | 626.0 | 508.2 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -15.34 | 325.07 | 40.03 | 254.60 | 0.6456 | 611.0 | 549.9 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -15.03 | 324.84 | 39.79 | 255.05 | 0.6421 | 579.0 | 626.3 | |
| 0.00 | 2.87 | 0.00 | 1.86 | -15.80 | 325.01 | 39.97 | 253.88 | 0.6457 | 710.0 | 579.1 | |
| 0.00 | 3.65 | 0.00 | 2.37 | -17.60 | 325.02 | 39.97 | 251.13 | 0.6495 | 573.0 | 581.2 | |
| 1.22 | 3.22 | 0.79 | 2.08 | -17.45 | 324.65 | 39.61 | 251.27 | 0.6445 | 864.4 | 727.4 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -17.50 | 324.38 | 39.34 | 251.12 | 0.6412 | 358.0 | 304.7 | |
| 0.00 | 2.35 | 0.00 | 1.50 | -17.74 | 323.96 | 38.91 | 250.63 | 0.6365 | 649.0 | 582.7 | |
| 2.00 | 63.71 | 1.27 | 40.26 | -17.29 | 323.44 | 38.40 | 251.19 | 0.6288 | -416.9 | -306.9 | |
| 0.00 | 1.74 | 0.00 | 1.10 | -16.19 | 323.10 | 38.06 | 252.85 | 0.6219 | 613.0 | 540.8 | |
| 0.00 | 1.48 | 0.00 | 0.92 | -13.63 | 322.54 | 37.49 | 256.87 | 0.6097 | 371.0 | 441.8 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -14.56 | 322.64 | 37.59 | 255.37 | 0.6125 | 559.0 | 488.2 | |
| 0.00 | 1.56 | 0.00 | 0.99 | -17.07 | 322.79 | 37.75 | 251.37 | 0.6199 | -661.0 | -575.9 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -19.68 | 323.47 | 38.43 | 247.48 | 0.6358 | 375.0 | 386.1 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -17.29 | 322.69 | 37.64 | 250.99 | 0.6191 | -562.0 | -452.0 | |
| 0.00 | 1.39 | 0.00 | 0.88 | -19.36 | 322.90 | 37.85 | 247.79 | 0.6276 | -561.0 | -381.4 | |
| 5.39 | -39.00 | 3.39 | -39.00 | -18.03 | 322.51 | 37.47 | 249.75 | 0.6188 | -871.5 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -17.55 | 322.08 | 37.03 | 250.39 | 0.6119 | -627.0 | -606.1 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -17.46 | 321.98 | 36.94 | 250.50 | 0.6104 | -705.0 | -622.0 | |
| 0.00 | 1.65 | 0.00 | 1.04 | -19.42 | 322.04 | 36.99 | 247.39 | 0.6170 | -534.0 | -462.6 | |
| 0.87 | 6.52 | 0.55 | 4.09 | -19.58 | 321.96 | 36.92 | 247.11 | 0.6166 | -726.6 | -549.9 | |
| 0.00 | 2.35 | 0.00 | 1.46 | -18.59 | 321.59 | 36.54 | 248.55 | 0.6086 | -805.0 | -612.7 | |
| 0.00 | 2.78 | 0.00 | 1.74 | -19.90 | 321.81 | 36.76 | 246.55 | 0.6157 | -197.0 | -227.0 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -17.61 | 321.19 | 36.15 | 250.01 | 0.6006 | -731.0 | -533.2 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -18.77 | 321.28 | 36.23 | 248.16 | 0.6052 | -576.0 | -386.1 | |
| 5.39 | 9.30 | 3.36 | 5.81 | -19.67 | 321.47 | 36.43 | 246.77 | 0.6107 | -816.7 | -571.0 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -19.37 | 321.39 | 36.35 | 247.22 | 0.6087 | -850.0 | -732.8 | |
| 0.00 | 1.30 | 0.00 | 0.81 | -18.56 | 321.11 | 36.07 | 248.42 | 0.6024 | -603.0 | -553.8 | |
| 0.00 | 1.83 | 0.00 | 1.13 | -19.56 | 320.97 | 35.92 | 246.77 | 0.6039 | -593.0 | -521.3 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -19.78 | 320.83 | 35.79 | 246.35 | 0.6030 | -636.0 | -517.5 | |
| 0.00 | 2.52 | 0.00 | 1.55 | -19.21 | 320.57 | 35.53 | 247.16 | 0.5976 | -825.0 | -782.8 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -19.38 | 320.42 | 35.37 | 246.83 | 0.5962 | -868.0 | -774.7 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -20.90 | 320.23 | 35.18 | 244.29 | 0.5997 | 629.0 | 454.9 | |
| 0.00 | 2.69 | 0.00 | 1.63 | -18.28 | 319.39 | 34.34 | 248.23 | 0.5790 | -955.0 | -825.6 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -19.64 | 319.67 | 34.63 | 246.08 | 0.5876 | -611.0 | -440.2 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -18.66 | 319.24 | 34.20 | 247.54 | 0.5785 | -1000.0 | -797.6 | |
| 0.00 | 1.13 | 0.00 | 0.70 | -21.48 | 319.88 | 34.83 | 243.19 | 0.5977 | -576.0 | -454.2 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -21.34 | 319.72 | 34.68 | 243.35 | 0.5952 | -660.0 | -449.4 | |
| 19.55 | 51.10 | 11.81 | 30.85 | -20.31 | 318.41 | 33.37 | 244.40 | 0.5742 | -1032.8 | -476.4 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -21.00 | 317.78 | 32.74 | 242.93 | 0.5692 | -839.0 | -700.9 | |
| 1.48 | 4.61 | 0.89 | 2.77 | -21.32 | 317.60 | 32.55 | 242.29 | 0.5684 | -601.5 | -446.1 | |
| 3.39 | 12.69 | 2.03 | 7.59 | -20.60 | 317.34 | 32.30 | 243.37 | 0.5617 | -910.0 | -621.0 | |
| 0.00 | 1.56 | 0.00 | 0.93 | -19.78 | 317.16 | 32.11 | 244.67 | 0.5556 | 683.0 | 556.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -21.28 | 317.36 | 32.31 | 242.24 | 0.5651 | -359.0 | -352.7 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -19.13 | 316.68 | 31.63 | 245.55 | 0.5465 | -640.0 | -587.6 | |
| 0.00 | 2.52 | 0.00 | 1.51 | -21.72 | 317.24 | 32.20 | 241.43 | 0.5658 | 717.0 | 455.8 | |
| 0.35 | 1.39 | 0.21 | 0.83 | -20.35 | 316.87 | 31.83 | 243.54 | 0.5545 | 542.8 | 339.8 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -19.44 | 316.67 | 31.63 | 245.01 | 0.5477 | -756.0 | -725.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -20.50 | 316.83 | 31.79 | 243.25 | 0.5547 | 671.0 | 520.9 | |
| 1.91 | 3.22 | 1.14 | 1.91 | -20.72 | 316.81 | 31.77 | 242.87 | 0.5554 | 730.6 | 492.9 | |
| 0.00 | 2.17 | 0.00 | 1.28 | -19.49 | 316.27 | 31.23 | 244.70 | 0.5427 | -953.0 | -851.0 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -19.66 | 315.98 | 30.93 | 244.24 | 0.5396 | -760.0 | -656.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
