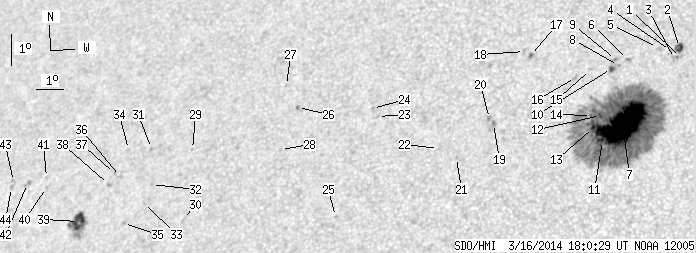

SDO HMI 2014-03-16 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.91 | 633.10 | 69.22 | 367.04 | 12.06 | 260.81 | -24.24 | 50.84 | 0.5150 | -669.0 | -329.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-16 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.54 | 14.09 | 264.61 | -20.43 | 43.68 | 0.4922 | 81.0 | 113.8 | |
| 3.91 | 6.26 | 2.23 | 3.57 | 14.41 | 264.55 | -20.49 | 43.31 | 0.4963 | 868.1 | 550.2 | |
| 0.00 | 3.48 | 0.00 | 1.98 | 14.07 | 264.42 | -20.62 | 43.99 | 0.4940 | 529.0 | 609.8 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 14.33 | 264.26 | -20.78 | 43.83 | 0.4984 | 379.0 | 305.9 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 14.45 | 263.82 | -21.22 | 44.26 | 0.5043 | 523.0 | 510.4 | |
| 0.00 | 1.56 | 0.00 | 0.90 | 14.11 | 262.86 | -22.18 | 46.01 | 0.5110 | -931.0 | -777.1 | |
| 96.04 | 542.24 | 54.50 | 308.01 | 12.08 | 262.89 | -22.16 | 49.04 | 0.4904 | -1487.3 | -428.7 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 13.94 | 262.58 | -22.46 | 46.63 | 0.5122 | -844.0 | -731.4 | |
| 0.00 | 1.48 | 0.00 | 0.85 | 14.13 | 262.46 | -22.58 | 46.49 | 0.5155 | -525.0 | -504.1 | |
| 1.04 | 3.13 | 0.60 | 1.80 | 13.85 | 262.36 | -22.69 | 47.03 | 0.5138 | -933.1 | -772.1 | |
| 0.96 | -7.00 | 0.54 | -7.00 | 11.58 | 262.27 | -22.77 | 50.61 | 0.4926 | -959.5 | 999999 | |
| 1.74 | -7.00 | 0.99 | -7.00 | 12.37 | 262.13 | -22.91 | 49.54 | 0.5018 | -353.3 | 999999 | |
| 1.48 | -7.00 | 0.84 | -7.00 | 12.00 | 261.94 | -23.11 | 50.35 | 0.5006 | -796.2 | 999999 | |
| 0.70 | -7.00 | 0.40 | -7.00 | 12.39 | 261.83 | -23.21 | 49.88 | 0.5054 | -613.9 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 13.86 | 261.65 | -23.39 | 47.90 | 0.5216 | -596.0 | -486.3 | |
| 0.00 | 2.43 | 0.00 | 1.41 | 13.63 | 261.18 | -23.87 | 48.81 | 0.5247 | -759.0 | -551.5 | |
| 0.00 | 2.35 | 0.00 | 1.39 | 14.42 | 259.56 | -25.48 | 49.52 | 0.5500 | -933.0 | -738.0 | |
| 0.00 | 2.00 | 0.00 | 1.19 | 14.56 | 259.34 | -25.71 | 49.56 | 0.5537 | -442.0 | -480.5 | |
| 0.00 | 2.35 | 0.00 | 1.38 | 12.32 | 258.54 | -26.50 | 53.70 | 0.5431 | -901.0 | -697.2 | |
| 0.00 | 2.87 | 0.00 | 1.69 | 12.49 | 258.39 | -26.66 | 53.61 | 0.5463 | -844.0 | -648.3 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 11.32 | 257.38 | -27.66 | 56.39 | 0.5488 | -668.0 | -603.2 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 11.64 | 256.72 | -28.32 | 56.52 | 0.5593 | -557.0 | -485.0 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 12.80 | 254.44 | -30.60 | 56.86 | 0.5951 | -744.0 | -517.8 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 13.07 | 254.23 | -30.82 | 56.67 | 0.5996 | -725.0 | -656.8 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 9.74 | 253.31 | -31.73 | 62.31 | 0.5876 | 673.0 | 556.1 | |
| 0.00 | 1.65 | 0.00 | 1.05 | 13.29 | 251.47 | -33.57 | 58.57 | 0.6330 | 771.0 | 676.5 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 14.03 | 250.95 | -34.10 | 57.96 | 0.6439 | 722.0 | 613.8 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 12.00 | 251.04 | -34.00 | 60.70 | 0.6296 | 487.0 | 384.9 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 12.25 | 247.69 | -37.36 | 62.62 | 0.6701 | 444.0 | 372.5 | |
| 0.00 | 1.39 | 0.00 | 0.91 | 10.07 | 247.63 | -37.41 | 65.66 | 0.6588 | 560.0 | 545.0 | |
| 0.00 | 1.30 | 0.00 | 0.89 | 12.42 | 246.06 | -38.98 | 63.40 | 0.6894 | 693.0 | 555.0 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 11.27 | 246.26 | -38.79 | 64.81 | 0.6812 | 532.0 | 352.9 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 10.70 | 246.03 | -39.01 | 65.72 | 0.6809 | 675.0 | 582.7 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 12.46 | 245.14 | -39.90 | 63.88 | 0.6999 | 525.0 | 430.7 | |
| 0.00 | 1.83 | 0.00 | 1.24 | 10.13 | 245.33 | -39.71 | 66.87 | 0.6862 | 706.0 | 492.5 | |
| 0.00 | 1.56 | 0.00 | 1.08 | 11.63 | 244.97 | -40.07 | 65.07 | 0.6977 | 712.0 | 637.2 | |
| 0.00 | 1.48 | 0.00 | 1.02 | 11.75 | 244.71 | -40.33 | 65.06 | 0.7012 | 596.0 | 462.9 | |
| 0.00 | 1.91 | 0.00 | 1.32 | 11.42 | 244.53 | -40.51 | 65.59 | 0.7016 | 651.0 | 560.5 | |
| 13.04 | 29.64 | 9.12 | 20.71 | 10.35 | 243.50 | -41.55 | 67.54 | 0.7083 | 803.7 | 552.1 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 11.55 | 241.97 | -43.08 | 66.75 | 0.7306 | 669.0 | 520.2 | |
| 0.00 | 0.87 | 0.00 | 0.63 | 11.86 | 241.90 | -43.14 | 66.38 | 0.7327 | 523.0 | 422.3 | |
| 0.00 | 3.39 | 0.00 | 2.49 | 11.75 | 241.13 | -43.92 | 66.90 | 0.7406 | 574.0 | 507.5 | |
| 0.00 | 1.39 | 0.00 | 1.03 | 11.86 | 240.50 | -44.54 | 67.05 | 0.7477 | 550.0 | 471.7 | |
| 0.00 | 1.39 | 0.00 | 1.03 | 11.68 | 240.46 | -44.59 | 67.30 | 0.7475 | 580.0 | 525.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
