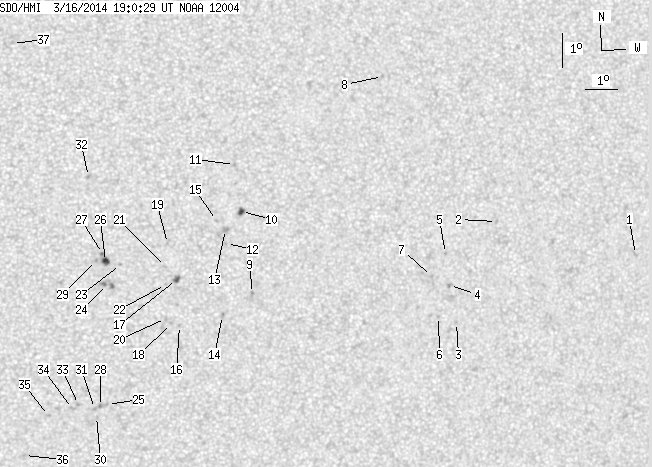

SDO HMI 2014-03-16 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.35 | 65.47 | 3.21 | 33.47 | -11.06 | 297.39 | 12.90 | 250.63 | 0.2366 | -279.9 | -296.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-16 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 1.01 | -9.81 | 311.15 | 26.65 | 262.32 | 0.4479 | 738.0 | 562.6 | |
| 0.00 | 1.48 | 0.00 | 0.79 | -9.05 | 306.48 | 21.98 | 263.47 | 0.3737 | 709.0 | 511.5 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -12.12 | 305.39 | 20.90 | 254.79 | 0.3631 | 831.0 | 628.7 | |
| 0.00 | 2.26 | 0.00 | 1.20 | -11.03 | 305.08 | 20.59 | 257.65 | 0.3549 | 955.0 | 729.4 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -10.08 | 304.89 | 20.40 | 260.25 | 0.3497 | 745.0 | 591.0 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -11.97 | 304.79 | 20.30 | 254.88 | 0.3532 | 855.0 | 606.1 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -10.78 | 304.48 | 19.99 | 258.08 | 0.3447 | 897.0 | 704.2 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -4.88 | 302.65 | 18.15 | 276.10 | 0.3136 | 785.0 | 556.1 | |
| 0.00 | 1.83 | 0.00 | 0.94 | -11.49 | 298.83 | 14.34 | 251.83 | 0.2565 | -944.0 | -725.9 | |
| 2.09 | 4.00 | 1.06 | 2.04 | -9.05 | 298.38 | 13.88 | 261.14 | 0.2409 | -1102.5 | -844.6 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -7.66 | 298.11 | 13.62 | 266.93 | 0.2348 | 814.0 | 604.4 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -10.02 | 297.95 | 13.46 | 256.84 | 0.2364 | -743.0 | -650.5 | |
| 0.00 | 3.48 | 0.00 | 1.77 | -9.60 | 297.90 | 13.41 | 258.55 | 0.2344 | -944.0 | -768.1 | |
| 0.00 | 1.83 | 0.00 | 0.93 | -12.17 | 297.92 | 13.43 | 248.15 | 0.2457 | -870.0 | -671.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -9.34 | 297.61 | 13.12 | 259.47 | 0.2288 | -878.0 | -660.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -12.50 | 296.59 | 12.10 | 244.82 | 0.2272 | -771.0 | -606.2 | |
| 1.39 | 4.00 | 0.71 | 2.03 | -11.13 | 296.44 | 11.95 | 250.41 | 0.2166 | 1065.4 | 776.7 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -12.45 | 296.34 | 11.85 | 244.61 | 0.2230 | -813.0 | -609.7 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -10.06 | 296.12 | 11.63 | 254.90 | 0.2065 | 807.0 | 594.7 | |
| 0.00 | 2.17 | 0.00 | 1.10 | -12.30 | 296.15 | 11.65 | 244.87 | 0.2190 | -612.0 | -508.6 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -10.75 | 296.08 | 11.59 | 251.64 | 0.2090 | 594.0 | 545.8 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -11.29 | 296.10 | 11.61 | 249.23 | 0.2121 | 678.0 | 504.8 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -10.72 | 294.69 | 10.20 | 249.68 | 0.1864 | -812.0 | -624.5 | |
| 0.00 | 6.95 | 0.00 | 3.50 | -11.33 | 294.31 | 9.82 | 245.89 | 0.1841 | -694.0 | -866.8 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -14.92 | 294.45 | 9.96 | 230.61 | 0.2173 | -914.0 | -748.1 | |
| 2.87 | 4.52 | 1.44 | 2.27 | -10.64 | 294.23 | 9.74 | 249.28 | 0.1785 | -1113.6 | -816.1 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -10.40 | 294.13 | 9.64 | 250.37 | 0.1756 | -937.0 | -794.9 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -14.99 | 294.24 | 9.75 | 229.78 | 0.2151 | -987.0 | -846.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -10.62 | 293.95 | 9.46 | 248.89 | 0.1739 | -939.0 | -685.5 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -15.29 | 294.13 | 9.63 | 228.36 | 0.2170 | -455.0 | -513.0 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -15.05 | 294.05 | 9.56 | 229.02 | 0.2134 | -915.0 | -804.6 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -8.12 | 293.64 | 9.15 | 263.24 | 0.1592 | -973.0 | -738.5 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -14.94 | 293.55 | 9.06 | 227.93 | 0.2058 | -926.0 | -730.5 | |
| 0.00 | 1.83 | 0.00 | 0.92 | -15.06 | 293.36 | 8.87 | 226.91 | 0.2049 | -862.0 | -669.7 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -15.29 | 292.62 | 8.13 | 223.67 | 0.1985 | -919.0 | -821.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -16.50 | 291.92 | 7.43 | 217.13 | 0.2063 | -844.0 | -674.8 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -4.19 | 291.28 | 6.79 | 293.20 | 0.1289 | -55.0 | -103.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
