SDO HMI 2014-03-16 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.89 | 513.96 | 79.98 | 342.40 | -17.87 | 325.34 | 41.40 | 250.79 | 0.6672 | 53.4 | 114.5 | |
|
previous
or next observation for the same group /

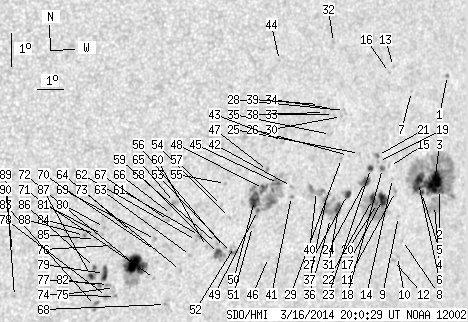

back to the solar disc SDO HMI 2014-03-16 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 1.10 | -13.62 | 329.45 | 45.51 | 257.87 | 0.7115 | 601.0 | 546.9 | |
| 2.52 | 152.88 | 1.80 | 108.25 | -17.04 | 330.06 | 46.12 | 253.17 | 0.7223 | 495.2 | 312.0 | |
| 20.95 | -2.00 | 14.87 | -2.00 | -16.85 | 329.77 | 45.83 | 253.39 | 0.7187 | 905.4 | 999999 | |
| 0.00 | 21.38 | 0.00 | 15.26 | -17.54 | 329.99 | 46.05 | 252.48 | 0.7223 | 121.0 | 122.4 | |
| 1.48 | -2.00 | 1.04 | -2.00 | -17.20 | 329.30 | 45.36 | 252.83 | 0.7137 | 663.0 | 999999 | |
| 13.47 | -2.00 | 9.45 | -2.00 | -16.91 | 329.08 | 45.14 | 253.20 | 0.7107 | 990.1 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -14.23 | 328.04 | 44.10 | 256.87 | 0.6950 | 428.0 | 452.4 | |
| 0.00 | 0.61 | 0.00 | 0.43 | -18.70 | 328.94 | 45.00 | 250.67 | 0.7121 | 161.0 | 293.4 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -18.00 | 328.53 | 44.59 | 251.57 | 0.7061 | 308.0 | 290.2 | |
| 0.00 | 1.39 | 0.00 | 0.98 | -19.20 | 328.89 | 44.95 | 249.96 | 0.7125 | 474.0 | 504.5 | |
| 0.00 | 2.61 | 0.00 | 1.80 | -17.26 | 328.17 | 44.23 | 252.55 | 0.7006 | 574.0 | 437.9 | |
| 0.00 | 1.65 | 0.00 | 1.16 | -19.34 | 328.76 | 44.82 | 249.75 | 0.7112 | 621.0 | 530.9 | |
| 0.00 | 1.13 | 0.00 | 0.76 | -13.55 | 327.11 | 43.17 | 257.76 | 0.6829 | 402.0 | 409.3 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -16.89 | 327.93 | 43.99 | 253.04 | 0.6971 | 450.0 | 439.8 | |
| 0.00 | 1.13 | 0.00 | 0.77 | -16.54 | 327.70 | 43.76 | 253.50 | 0.6938 | 358.0 | 330.0 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -13.74 | 326.98 | 43.04 | 257.46 | 0.6816 | 319.0 | 278.6 | |
| 7.82 | 51.63 | 5.38 | 35.37 | -17.55 | 327.69 | 43.75 | 252.05 | 0.6954 | 745.9 | 336.7 | |
| 1.30 | 2.87 | 0.89 | 1.96 | -16.62 | 327.42 | 43.48 | 253.33 | 0.6906 | 628.0 | 580.6 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -16.43 | 327.19 | 43.25 | 253.57 | 0.6876 | 665.0 | 556.2 | |
| 1.13 | -17.00 | 0.77 | -17.00 | -17.69 | 327.52 | 43.58 | 251.82 | 0.6936 | 890.9 | 999999 | |
| 0.61 | 2.61 | 0.41 | 1.77 | -16.25 | 327.10 | 43.16 | 253.81 | 0.6862 | 789.9 | 604.8 | |
| 4.35 | -17.00 | 2.97 | -17.00 | -17.58 | 327.27 | 43.33 | 251.92 | 0.6904 | 908.1 | 999999 | |
| 1.83 | 3.22 | 1.24 | 2.18 | -16.66 | 326.92 | 42.98 | 253.18 | 0.6846 | 804.8 | 726.4 | |
| 4.95 | 8.00 | 3.35 | 5.41 | -17.07 | 326.82 | 42.88 | 252.57 | 0.6841 | 842.1 | 689.1 | |
| 0.00 | 1.04 | 0.00 | 0.70 | -16.25 | 326.34 | 42.40 | 253.68 | 0.6769 | 560.0 | 517.4 | |
| 0.00 | 1.04 | 0.00 | 0.70 | -16.35 | 325.90 | 41.96 | 253.45 | 0.6716 | 288.0 | 382.4 | |
| 3.04 | 6.00 | 2.04 | 4.02 | -17.52 | 326.18 | 42.24 | 251.79 | 0.6772 | 819.2 | 656.4 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -15.02 | 325.40 | 41.46 | 255.35 | 0.6633 | 498.0 | 481.8 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -16.46 | 325.64 | 41.70 | 253.23 | 0.6686 | 726.0 | 545.0 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -15.21 | 325.32 | 41.38 | 255.05 | 0.6626 | 343.0 | 427.0 | |
| 4.17 | 17.04 | 2.79 | 11.36 | -17.97 | 325.93 | 41.99 | 251.07 | 0.6751 | 834.3 | 497.1 | |
| 0.00 | 1.22 | 0.00 | 0.79 | -13.03 | 324.52 | 40.58 | 258.26 | 0.6497 | 427.0 | 465.7 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -15.17 | 324.99 | 41.05 | 255.05 | 0.6583 | 490.0 | 516.6 | |
| 0.00 | 1.39 | 0.00 | 0.91 | -15.00 | 324.86 | 40.92 | 255.29 | 0.6565 | 737.0 | 660.6 | |
| 0.00 | 2.00 | 0.00 | 1.31 | -15.78 | 325.01 | 41.07 | 254.13 | 0.6596 | 674.0 | 559.5 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -18.29 | 325.69 | 41.75 | 250.54 | 0.6728 | 207.0 | 263.3 | |
| 0.00 | 2.35 | 0.00 | 1.56 | -17.68 | 325.34 | 41.40 | 251.36 | 0.6673 | 612.0 | 662.0 | |
| 0.00 | 2.00 | 0.00 | 1.30 | -15.14 | 324.61 | 40.67 | 255.03 | 0.6535 | 271.0 | 350.9 | |
| 0.00 | 1.04 | 0.00 | 0.68 | -14.92 | 324.36 | 40.42 | 255.33 | 0.6499 | 683.0 | 579.9 | |
| 0.00 | 7.47 | 0.00 | 4.92 | -17.53 | 324.88 | 40.94 | 251.48 | 0.6613 | 598.0 | 675.3 | |
| 0.00 | 1.39 | 0.00 | 0.90 | -17.76 | 323.91 | 39.97 | 250.89 | 0.6498 | 458.0 | 566.8 | |
| 0.00 | 1.48 | 0.00 | 0.96 | -17.46 | 323.83 | 39.89 | 251.33 | 0.6481 | 263.0 | 213.1 | |
| 0.00 | 3.22 | 0.00 | 2.06 | -16.11 | 323.13 | 39.19 | 253.25 | 0.6364 | 515.0 | 508.2 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -13.73 | 322.51 | 38.57 | 256.89 | 0.6241 | 634.0 | 447.6 | |
| 0.96 | 71.01 | 0.62 | 45.52 | -17.41 | 323.29 | 39.35 | 251.27 | 0.6412 | -482.5 | -193.8 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -19.66 | 323.51 | 39.57 | 247.89 | 0.6497 | 123.0 | 190.0 | |
| 0.00 | 1.91 | 0.00 | 1.22 | -17.05 | 322.76 | 38.82 | 251.69 | 0.6336 | -573.0 | -398.0 | |
| 2.69 | -45.00 | 1.72 | -45.00 | -17.60 | 322.74 | 38.80 | 250.82 | 0.6346 | -676.1 | 999999 | |
| 0.78 | -45.00 | 0.50 | -45.00 | -18.28 | 322.67 | 38.73 | 249.75 | 0.6355 | -439.0 | 999999 | |
| 9.39 | -45.00 | 5.99 | -45.00 | -17.99 | 322.47 | 38.53 | 250.14 | 0.6323 | -856.3 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.11 | -18.78 | 322.60 | 38.66 | 248.96 | 0.6360 | -442.0 | -463.2 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -19.43 | 322.05 | 38.11 | 247.77 | 0.6311 | -563.0 | -609.2 | |
| 0.78 | 4.52 | 0.50 | 2.88 | -19.62 | 321.99 | 38.05 | 247.45 | 0.6309 | -612.9 | -464.1 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -18.57 | 321.62 | 37.68 | 248.97 | 0.6231 | -671.0 | -629.3 | |
| 0.00 | 1.48 | 0.00 | 0.93 | -17.56 | 321.21 | 37.27 | 250.45 | 0.6150 | -578.0 | -384.6 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -19.49 | 321.67 | 37.73 | 247.54 | 0.6265 | -405.0 | -442.8 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -18.23 | 321.22 | 37.28 | 249.37 | 0.6170 | -508.0 | -465.0 | |
| 4.17 | 10.43 | 2.64 | 6.61 | -19.69 | 321.48 | 37.54 | 247.17 | 0.6248 | -768.7 | -516.1 | |
| 0.00 | 1.30 | 0.00 | 0.82 | -19.39 | 321.32 | 37.38 | 247.58 | 0.6218 | -564.0 | -613.5 | |
| 0.00 | 1.56 | 0.00 | 0.98 | -19.51 | 320.96 | 37.02 | 247.26 | 0.6176 | -767.0 | -574.1 | |
| 0.00 | 2.96 | 0.00 | 1.85 | -19.20 | 320.60 | 36.66 | 247.62 | 0.6120 | -845.0 | -710.8 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -19.36 | 320.52 | 36.58 | 247.34 | 0.6116 | -860.0 | -699.4 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -19.83 | 320.41 | 36.47 | 246.55 | 0.6117 | -704.0 | -561.4 | |
| 0.00 | 1.56 | 0.00 | 0.98 | -20.31 | 320.14 | 36.20 | 245.68 | 0.6101 | 387.0 | 398.4 | |
| 0.00 | 2.78 | 0.00 | 1.71 | -18.27 | 319.39 | 35.45 | 248.68 | 0.5935 | -941.0 | -714.5 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -18.64 | 319.36 | 35.42 | 248.07 | 0.5943 | -742.0 | -609.2 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -18.83 | 319.29 | 35.35 | 247.73 | 0.5940 | -855.0 | -756.9 | |
| 0.00 | 1.48 | 0.00 | 0.92 | -21.38 | 319.84 | 35.91 | 243.86 | 0.6106 | -768.0 | -536.1 | |
| 0.00 | 1.83 | 0.00 | 1.12 | -19.44 | 318.94 | 35.00 | 246.59 | 0.5916 | -742.0 | -667.6 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -19.77 | 319.02 | 35.08 | 246.08 | 0.5939 | -470.0 | -412.3 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -20.62 | 319.20 | 35.26 | 244.78 | 0.5995 | -566.0 | -456.7 | |
| 26.07 | 51.02 | 15.93 | 31.17 | -20.28 | 318.38 | 34.44 | 244.97 | 0.5876 | -957.1 | -346.6 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -19.29 | 317.98 | 34.04 | 246.43 | 0.5787 | -623.0 | -516.4 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -21.27 | 317.86 | 33.92 | 243.10 | 0.5853 | -773.0 | -648.8 | |
| 0.00 | 0.43 | 0.00 | 0.26 | -21.00 | 317.75 | 33.81 | 243.49 | 0.5827 | -724.0 | -610.4 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -19.73 | 317.29 | 33.35 | 245.37 | 0.5714 | 638.0 | 496.3 | |
| 0.00 | 1.83 | 0.00 | 1.11 | -20.92 | 317.50 | 33.56 | 243.49 | 0.5792 | -704.0 | -675.2 | |
| 0.00 | 2.00 | 0.00 | 1.21 | -21.29 | 317.52 | 33.58 | 242.89 | 0.5811 | -783.0 | -568.7 | |
| 4.95 | 7.74 | 2.99 | 4.67 | -20.60 | 317.26 | 33.32 | 243.91 | 0.5748 | -742.9 | -498.2 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -19.20 | 316.94 | 33.00 | 246.10 | 0.5647 | -766.0 | -700.7 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -19.42 | 316.91 | 32.97 | 245.72 | 0.5652 | -680.0 | -624.0 | |
| 0.52 | 1.91 | 0.32 | 1.16 | -20.97 | 317.17 | 33.23 | 243.23 | 0.5753 | -929.0 | -720.1 | |
| 0.00 | 3.82 | 0.00 | 2.32 | -21.59 | 317.17 | 33.23 | 242.22 | 0.5782 | -202.0 | -155.5 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -19.40 | 316.64 | 32.70 | 245.62 | 0.5617 | -837.0 | -713.9 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -19.58 | 316.68 | 32.74 | 245.32 | 0.5630 | -587.0 | -528.3 | |
| 0.96 | 8.87 | 0.57 | 5.33 | -20.44 | 316.85 | 32.91 | 243.96 | 0.5688 | 585.1 | 197.4 | |
| 2.00 | -86.00 | 1.20 | -86.00 | -20.72 | 316.80 | 32.86 | 243.47 | 0.5694 | 650.3 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.03 | -19.49 | 316.25 | 32.31 | 245.27 | 0.5569 | -880.0 | -789.5 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -21.50 | 314.09 | 30.15 | 240.57 | 0.5388 | -763.0 | -611.2 | |
| 0.00 | 1.30 | 0.00 | 0.76 | -20.13 | 313.72 | 29.78 | 242.74 | 0.5267 | -713.0 | -604.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
