SDO HMI 2014-03-16 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.01 | 533.21 | 78.07 | 357.62 | -17.92 | 325.20 | 41.81 | 250.82 | 0.6723 | 47.8 | 119.5 | |
|
previous
or next observation for the same group /

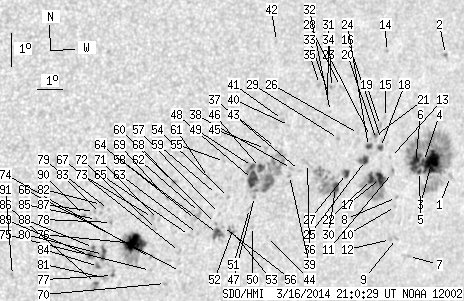

back to the solar disc SDO HMI 2014-03-16 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.78 | 0.00 | 2.03 | -17.21 | 330.75 | 47.36 | 253.12 | 0.7366 | 35.0 | 87.2 | |
| 0.52 | 1.91 | 0.37 | 1.36 | -13.61 | 329.47 | 46.08 | 257.94 | 0.7182 | 576.0 | 460.5 | |
| 22.86 | 164.02 | 16.39 | 117.33 | -16.87 | 329.77 | 46.38 | 253.45 | 0.7250 | 825.5 | 284.1 | |
| 1.13 | -3.00 | 0.80 | -3.00 | -16.87 | 329.40 | 46.02 | 253.39 | 0.7209 | 787.9 | 999999 | |
| 1.56 | -3.00 | 1.11 | -3.00 | -17.18 | 329.32 | 45.94 | 252.95 | 0.7204 | 682.8 | 999999 | |
| 11.82 | -3.00 | 8.37 | -3.00 | -16.93 | 329.06 | 45.68 | 253.26 | 0.7170 | 959.3 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.94 | -19.77 | 329.72 | 46.33 | 249.48 | 0.7292 | 510.0 | 465.6 | |
| 0.00 | 1.22 | 0.00 | 0.86 | -18.05 | 328.57 | 45.18 | 251.62 | 0.7130 | 250.0 | 308.7 | |
| 0.00 | 1.48 | 0.00 | 1.05 | -19.27 | 328.99 | 45.60 | 250.00 | 0.7201 | 585.0 | 521.5 | |
| 0.00 | 1.13 | 0.00 | 0.80 | -18.32 | 328.62 | 45.23 | 251.25 | 0.7140 | 305.0 | 263.8 | |
| 0.00 | 3.30 | 0.00 | 2.31 | -17.31 | 328.16 | 44.77 | 252.57 | 0.7071 | 365.0 | 336.2 | |
| 0.00 | 2.00 | 0.00 | 1.42 | -19.33 | 328.74 | 45.35 | 249.88 | 0.7173 | 377.0 | 346.7 | |
| 0.00 | 1.39 | 0.00 | 0.97 | -16.87 | 327.94 | 44.55 | 253.16 | 0.7038 | 550.0 | 370.9 | |
| 0.00 | 1.39 | 0.00 | 0.95 | -13.73 | 326.94 | 43.55 | 257.53 | 0.6878 | 254.0 | 310.0 | |
| 0.00 | 0.96 | 0.00 | 0.66 | -15.70 | 327.39 | 44.00 | 254.75 | 0.6955 | 431.0 | 350.5 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -16.37 | 327.40 | 44.01 | 253.79 | 0.6966 | 322.0 | 404.8 | |
| 6.69 | 51.11 | 4.64 | 35.34 | -17.54 | 327.70 | 44.31 | 252.18 | 0.7020 | 716.5 | 324.8 | |
| 1.83 | 3.13 | 1.26 | 2.16 | -16.61 | 327.42 | 44.04 | 253.45 | 0.6973 | 623.3 | 511.3 | |
| 0.00 | 1.22 | 0.00 | 0.83 | -15.95 | 327.24 | 43.85 | 254.36 | 0.6941 | 326.0 | 365.3 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -16.39 | 327.19 | 43.80 | 253.73 | 0.6941 | 661.0 | 644.4 | |
| 0.61 | 2.96 | 0.42 | 2.02 | -16.27 | 327.11 | 43.72 | 253.88 | 0.6930 | 761.0 | 628.4 | |
| 5.48 | -17.00 | 3.78 | -17.00 | -17.60 | 327.33 | 43.94 | 252.02 | 0.6977 | 909.7 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -16.32 | 326.91 | 43.52 | 253.78 | 0.6906 | 380.0 | 445.0 | |
| 2.17 | 3.65 | 1.49 | 2.50 | -16.62 | 326.91 | 43.52 | 253.34 | 0.6911 | 761.4 | 644.4 | |
| 3.22 | 7.30 | 2.20 | 4.99 | -17.05 | 326.90 | 43.51 | 252.72 | 0.6917 | 856.3 | 738.7 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -16.27 | 326.38 | 42.99 | 253.76 | 0.6842 | 413.0 | 455.4 | |
| 3.04 | 5.22 | 2.06 | 3.53 | -17.51 | 326.22 | 42.83 | 251.93 | 0.6843 | 765.9 | 649.9 | |
| 0.00 | 0.52 | 0.00 | 0.35 | -14.93 | 325.28 | 41.90 | 255.56 | 0.6686 | 397.0 | 442.5 | |
| 0.00 | 1.39 | 0.00 | 0.93 | -16.49 | 325.59 | 42.21 | 253.30 | 0.6749 | 717.0 | 567.6 | |
| 4.26 | 38.07 | 2.87 | 25.51 | -17.96 | 325.88 | 42.49 | 251.20 | 0.6812 | 801.5 | 547.5 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -14.99 | 324.92 | 41.54 | 255.41 | 0.6642 | 718.0 | 670.2 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -15.71 | 325.06 | 41.67 | 254.36 | 0.6670 | 691.0 | 670.2 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -15.18 | 324.85 | 41.46 | 255.12 | 0.6635 | 448.0 | 533.9 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -15.51 | 324.88 | 41.50 | 254.63 | 0.6645 | 731.0 | 654.9 | |
| 0.00 | 1.56 | 0.00 | 1.03 | -14.94 | 324.42 | 41.03 | 255.41 | 0.6577 | 636.0 | 476.5 | |
| 0.00 | 4.26 | 0.00 | 2.81 | -17.33 | 324.53 | 41.14 | 251.82 | 0.6633 | 378.0 | 373.5 | |
| 0.00 | 1.39 | 0.00 | 0.92 | -17.57 | 324.26 | 40.87 | 251.40 | 0.6605 | 13.0 | -71.9 | |
| 0.00 | 2.00 | 0.00 | 1.31 | -17.53 | 323.92 | 40.53 | 251.37 | 0.6562 | 282.0 | 284.3 | |
| 0.00 | 1.13 | 0.00 | 0.74 | -17.75 | 323.89 | 40.50 | 251.04 | 0.6564 | 445.0 | 464.2 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -16.25 | 323.51 | 40.12 | 253.23 | 0.6484 | 684.0 | 538.7 | |
| 0.00 | 2.09 | 0.00 | 1.35 | -16.10 | 323.18 | 39.79 | 253.40 | 0.6440 | 614.0 | 484.5 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -13.79 | 322.44 | 39.05 | 256.87 | 0.6306 | 353.0 | 299.2 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -16.95 | 323.11 | 39.72 | 252.06 | 0.6448 | -238.0 | -249.5 | |
| 0.00 | 0.52 | 0.00 | 0.34 | -19.65 | 323.53 | 40.14 | 248.08 | 0.6567 | 96.0 | 178.7 | |
| 0.00 | 1.22 | 0.00 | 0.78 | -17.01 | 322.72 | 39.33 | 251.87 | 0.6400 | -300.0 | -426.6 | |
| 3.04 | 75.19 | 1.96 | 48.56 | -17.60 | 322.67 | 39.28 | 250.96 | 0.6407 | -666.0 | -150.1 | |
| 0.00 | 1.48 | 0.00 | 0.95 | -18.49 | 322.66 | 39.27 | 249.59 | 0.6428 | -430.0 | -372.6 | |
| 9.65 | -46.00 | 6.20 | -46.00 | -17.98 | 322.44 | 39.05 | 250.30 | 0.6388 | -811.9 | 999999 | |
| 1.83 | -46.00 | 1.17 | -46.00 | -17.59 | 322.34 | 38.95 | 250.88 | 0.6366 | -711.9 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.79 | -19.40 | 322.83 | 39.45 | 248.26 | 0.6475 | -247.0 | -251.1 | |
| 0.00 | 2.00 | 0.00 | 1.29 | -18.87 | 322.56 | 39.17 | 248.98 | 0.6426 | -530.0 | -449.7 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -19.49 | 322.08 | 38.69 | 247.88 | 0.6385 | -585.0 | -533.4 | |
| 0.00 | 4.09 | 0.00 | 2.62 | -19.58 | 322.03 | 38.64 | 247.72 | 0.6381 | -716.0 | -473.3 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -18.60 | 321.64 | 38.25 | 249.12 | 0.6303 | -619.0 | -554.9 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -17.52 | 321.20 | 37.82 | 250.67 | 0.6219 | -485.0 | -348.6 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -19.49 | 321.64 | 38.25 | 247.73 | 0.6329 | -284.0 | -392.4 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -19.10 | 321.41 | 38.02 | 248.25 | 0.6290 | -378.0 | -355.0 | |
| 4.69 | 9.82 | 2.99 | 6.27 | -19.71 | 321.50 | 38.11 | 247.34 | 0.6319 | -753.1 | -444.3 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -18.54 | 321.14 | 37.75 | 249.05 | 0.6239 | -491.0 | -418.4 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -19.42 | 321.34 | 37.95 | 247.74 | 0.6290 | -646.0 | -614.1 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -18.05 | 320.70 | 37.31 | 249.68 | 0.6169 | -313.0 | -372.1 | |
| 0.00 | 4.00 | 0.00 | 2.52 | -19.13 | 320.62 | 37.23 | 247.94 | 0.6191 | -666.0 | -575.1 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -19.77 | 320.71 | 37.32 | 246.97 | 0.6223 | -551.0 | -536.6 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -19.35 | 320.52 | 37.13 | 247.55 | 0.6185 | -774.0 | -738.8 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -19.85 | 320.42 | 37.03 | 246.73 | 0.6189 | -686.0 | -555.3 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -20.97 | 320.37 | 36.98 | 244.96 | 0.6222 | 644.0 | 538.5 | |
| 0.00 | 2.35 | 0.00 | 1.47 | -20.37 | 320.16 | 36.77 | 245.82 | 0.6174 | 407.0 | 372.7 | |
| 0.35 | 1.48 | 0.21 | 0.91 | -18.27 | 319.38 | 35.99 | 248.89 | 0.6005 | -913.0 | -784.8 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -18.80 | 319.28 | 35.89 | 247.99 | 0.6008 | -785.0 | -645.6 | |
| 0.00 | 1.48 | 0.00 | 0.93 | -21.38 | 319.89 | 36.50 | 244.13 | 0.6178 | -509.0 | -433.3 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -19.45 | 319.09 | 35.70 | 246.85 | 0.6007 | -323.0 | -322.9 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -19.76 | 319.09 | 35.70 | 246.35 | 0.6018 | -438.0 | -406.7 | |
| 0.00 | 1.91 | 0.00 | 1.18 | -19.41 | 318.84 | 35.46 | 246.82 | 0.5974 | -737.0 | -628.4 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -20.63 | 319.08 | 35.69 | 244.96 | 0.6049 | -506.0 | -407.0 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -21.02 | 319.19 | 35.80 | 244.38 | 0.6078 | -288.0 | -291.1 | |
| 25.82 | 50.15 | 15.87 | 30.82 | -20.24 | 318.36 | 34.97 | 245.26 | 0.5943 | -926.4 | -367.6 | |
| 0.43 | 2.96 | 0.27 | 1.81 | -21.27 | 317.77 | 34.38 | 243.32 | 0.5911 | -722.2 | -623.0 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -19.66 | 317.33 | 33.94 | 245.75 | 0.5788 | 493.0 | 393.8 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -19.28 | 317.12 | 33.73 | 246.31 | 0.5746 | -510.0 | -403.5 | |
| 2.96 | 6.52 | 1.80 | 3.96 | -20.66 | 317.26 | 33.87 | 244.08 | 0.5821 | -779.6 | -618.8 | |
| 0.00 | 4.69 | 0.00 | 2.87 | -21.36 | 317.44 | 34.06 | 243.03 | 0.5874 | -625.0 | -381.0 | |
| 0.00 | 2.78 | 0.00 | 1.67 | -19.14 | 316.82 | 33.43 | 246.40 | 0.5702 | -733.0 | -616.5 | |
| 0.00 | 1.30 | 0.00 | 0.79 | -19.42 | 316.85 | 33.46 | 245.95 | 0.5716 | -667.0 | -529.4 | |
| 0.70 | 2.69 | 0.42 | 1.64 | -21.03 | 317.17 | 33.78 | 243.42 | 0.5825 | -908.8 | -631.8 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -19.61 | 316.74 | 33.35 | 245.58 | 0.5710 | -619.0 | -508.3 | |
| 0.70 | 4.87 | 0.42 | 2.97 | -21.56 | 317.19 | 33.80 | 242.57 | 0.5851 | -765.8 | -152.4 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -19.37 | 316.61 | 33.22 | 245.92 | 0.5683 | -786.0 | -666.3 | |
| 0.43 | 7.39 | 0.26 | 4.47 | -20.47 | 316.83 | 33.44 | 244.18 | 0.5758 | 673.2 | 254.2 | |
| 1.22 | -88.00 | 0.74 | -88.00 | -20.72 | 316.74 | 33.35 | 243.72 | 0.5757 | 660.3 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -19.52 | 316.27 | 32.88 | 245.51 | 0.5644 | -792.0 | -732.3 | |
| 0.00 | 1.83 | 0.00 | 1.08 | -21.51 | 314.02 | 30.64 | 240.86 | 0.5449 | -707.0 | -609.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
