SDO HMI 2014-03-16 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.19 | 644.44 | 75.15 | 367.18 | 12.04 | 260.89 | -21.95 | 47.98 | 0.4890 | -667.4 | -330.3 | |
|
previous
or next observation for the same group /

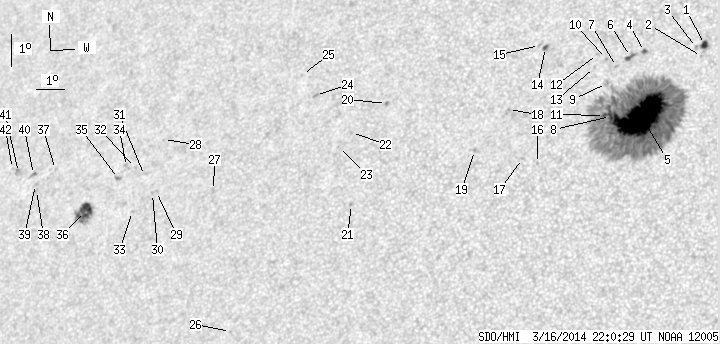

back to the solar disc SDO HMI 2014-03-16 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.22 | 5.74 | 1.80 | 3.22 | 14.27 | 264.77 | -18.07 | 39.92 | 0.4703 | 914.7 | 599.8 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 13.89 | 264.70 | -18.14 | 40.57 | 0.4666 | 619.0 | 553.5 | |
| 0.00 | 1.65 | 0.00 | 0.93 | 14.19 | 264.51 | -18.32 | 40.44 | 0.4718 | 470.0 | 402.3 | |
| 0.87 | 2.09 | 0.49 | 1.18 | 14.14 | 262.82 | -20.01 | 43.02 | 0.4884 | -917.9 | -752.7 | |
| 106.23 | 554.97 | 59.39 | 310.48 | 12.07 | 262.90 | -19.94 | 46.02 | 0.4653 | -1458.1 | -424.9 | |
| 0.00 | 5.48 | 0.00 | 3.11 | 14.00 | 262.38 | -20.46 | 43.85 | 0.4915 | -863.0 | -747.2 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 13.70 | 261.95 | -20.89 | 44.88 | 0.4929 | -794.0 | -624.0 | |
| 3.74 | -5.00 | 2.10 | -5.00 | 12.12 | 261.89 | -20.95 | 47.37 | 0.4771 | -747.0 | 999999 | |
| 0.00 | 2.96 | 0.00 | 1.68 | 13.17 | 261.67 | -21.17 | 46.05 | 0.4904 | -93.0 | -247.8 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 13.97 | 261.59 | -21.25 | 44.97 | 0.4996 | -687.0 | -590.8 | |
| 0.96 | -5.00 | 0.54 | -5.00 | 12.16 | 261.69 | -21.15 | 47.58 | 0.4798 | -567.8 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 14.11 | 261.28 | -21.56 | 45.18 | 0.5044 | -543.0 | -422.6 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 13.70 | 261.22 | -21.62 | 45.86 | 0.5008 | -760.0 | -568.2 | |
| 1.13 | 2.52 | 0.66 | 1.47 | 14.43 | 259.51 | -23.32 | 46.98 | 0.5265 | -799.2 | -618.5 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 14.50 | 259.30 | -23.53 | 47.13 | 0.5295 | -472.0 | -381.6 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 10.75 | 259.60 | -23.24 | 52.50 | 0.4906 | -695.0 | -513.0 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 10.94 | 259.09 | -23.75 | 52.81 | 0.4984 | -754.0 | -645.6 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 12.51 | 258.47 | -24.36 | 51.05 | 0.5199 | -782.0 | -623.6 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 11.28 | 257.45 | -25.39 | 54.11 | 0.5210 | -773.0 | -615.4 | |
| 0.00 | 1.65 | 0.00 | 1.00 | 12.95 | 254.25 | -28.58 | 54.81 | 0.5727 | -803.0 | -713.8 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 9.84 | 253.38 | -29.46 | 60.31 | 0.5599 | 715.0 | 639.3 | |
| 0.00 | 1.39 | 0.00 | 0.84 | 12.11 | 253.13 | -29.71 | 57.08 | 0.5794 | 840.0 | 629.9 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 11.69 | 252.72 | -30.11 | 58.05 | 0.5813 | 622.0 | 536.5 | |
| 0.00 | 2.00 | 0.00 | 1.24 | 13.37 | 251.68 | -31.15 | 56.51 | 0.6058 | 852.0 | 732.2 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 14.08 | 251.11 | -31.73 | 56.00 | 0.6175 | 321.0 | 387.7 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 6.19 | 249.41 | -33.43 | 69.00 | 0.5889 | 606.0 | 513.6 | |
| 0.00 | 2.09 | 0.00 | 1.32 | 10.62 | 248.35 | -34.49 | 62.99 | 0.6269 | 575.0 | 448.5 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 12.39 | 246.22 | -36.62 | 61.96 | 0.6624 | 662.0 | 602.9 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 10.76 | 246.20 | -36.64 | 64.21 | 0.6534 | 699.0 | 574.9 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 10.71 | 246.06 | -36.78 | 64.38 | 0.6548 | 668.0 | 574.6 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 11.30 | 245.66 | -37.17 | 63.80 | 0.6627 | 94.0 | 130.0 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 11.58 | 245.28 | -37.56 | 63.65 | 0.6687 | 677.0 | 597.5 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 10.20 | 245.36 | -37.47 | 65.50 | 0.6603 | 845.0 | 631.5 | |
| 0.00 | 2.52 | 0.00 | 1.68 | 11.64 | 244.92 | -37.92 | 63.79 | 0.6732 | 560.0 | 540.3 | |
| 0.00 | 2.52 | 0.00 | 1.69 | 11.29 | 244.66 | -38.17 | 64.43 | 0.6742 | 775.0 | 612.3 | |
| 15.04 | 26.17 | 10.17 | 17.69 | 10.35 | 243.48 | -39.36 | 66.37 | 0.6832 | 821.4 | 568.5 | |
| 0.00 | 1.04 | 0.00 | 0.73 | 11.78 | 242.09 | -40.75 | 65.23 | 0.7060 | 530.0 | 414.5 | |
| 0.00 | 1.65 | 0.00 | 1.16 | 11.18 | 241.43 | -41.41 | 66.37 | 0.7106 | 697.0 | 611.7 | |
| 0.00 | 0.78 | 0.00 | 0.55 | 11.37 | 241.35 | -41.49 | 66.16 | 0.7124 | 753.0 | 668.0 | |
| 0.00 | 2.52 | 0.00 | 1.78 | 11.70 | 241.21 | -41.63 | 65.81 | 0.7154 | 595.0 | 507.1 | |
| 0.00 | 4.52 | 0.00 | 3.23 | 11.82 | 240.57 | -42.26 | 65.99 | 0.7230 | 617.0 | 477.9 | |
| 0.00 | 0.61 | 0.00 | 0.44 | 11.97 | 240.29 | -42.54 | 65.94 | 0.7267 | 410.0 | 310.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
