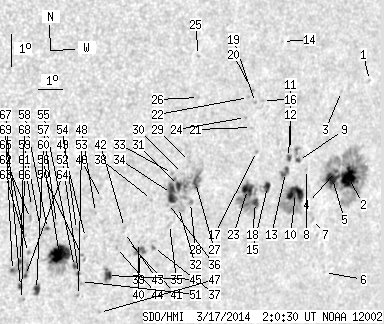

SDO HMI 2014-03-17 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 129.70 | 480.42 | 89.69 | 335.88 | -17.90 | 325.11 | 44.48 | 251.43 | 0.7039 | 71.5 | 126.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-17 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.46 | -13.84 | 329.87 | 49.23 | 257.83 | 0.7546 | 293.0 | 330.0 | |
| 20.27 | 151.27 | 15.28 | 113.81 | -16.81 | 329.81 | 49.17 | 253.89 | 0.7563 | 701.3 | 262.8 | |
| 0.00 | 0.87 | 0.00 | 0.64 | -14.29 | 328.69 | 48.05 | 257.16 | 0.7415 | 234.0 | 278.8 | |
| 0.87 | -2.00 | 0.65 | -2.00 | -16.69 | 329.15 | 48.51 | 253.98 | 0.7489 | 748.2 | 999999 | |
| 10.70 | -2.00 | 7.96 | -2.00 | -16.91 | 329.08 | 48.45 | 253.68 | 0.7484 | 849.1 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.53 | -19.74 | 329.77 | 49.14 | 250.03 | 0.7597 | 378.0 | 390.0 | |
| 0.00 | 1.74 | 0.00 | 1.29 | -18.21 | 328.60 | 47.97 | 251.87 | 0.7447 | 211.0 | 291.8 | |
| 0.00 | 1.04 | 0.00 | 0.76 | -16.74 | 327.82 | 47.18 | 253.73 | 0.7340 | 335.0 | 282.3 | |
| 1.13 | 6.78 | 0.81 | 4.88 | -16.51 | 327.38 | 46.74 | 254.00 | 0.7287 | 544.7 | 561.3 | |
| 15.83 | 47.15 | 11.47 | 34.13 | -17.50 | 327.56 | 46.93 | 252.67 | 0.7321 | 727.3 | 325.3 | |
| 0.00 | 1.22 | 0.00 | 0.87 | -16.21 | 326.92 | 46.28 | 254.35 | 0.7231 | 600.0 | 548.6 | |
| 1.74 | 2.78 | 1.24 | 1.99 | -16.46 | 326.91 | 46.27 | 254.00 | 0.7233 | 642.3 | 603.7 | |
| 3.48 | 6.18 | 2.49 | 4.42 | -16.91 | 326.91 | 46.28 | 253.37 | 0.7239 | 715.0 | 615.4 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -13.03 | 325.72 | 45.08 | 258.67 | 0.7059 | 255.0 | 301.3 | |
| 4.00 | 8.61 | 2.83 | 6.09 | -17.40 | 326.26 | 45.62 | 252.60 | 0.7171 | 655.5 | 590.3 | |
| 0.00 | 1.30 | 0.00 | 0.91 | -14.86 | 325.30 | 44.66 | 256.04 | 0.7024 | 595.0 | 537.1 | |
| 0.00 | 1.13 | 0.00 | 0.79 | -16.40 | 325.46 | 44.82 | 253.88 | 0.7063 | 525.0 | 553.8 | |
| 3.13 | 45.93 | 2.21 | 32.17 | -17.92 | 325.89 | 45.25 | 251.81 | 0.7136 | 739.0 | 504.9 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -14.94 | 325.02 | 44.38 | 255.88 | 0.6991 | 763.0 | 670.8 | |
| 0.00 | 1.13 | 0.00 | 0.78 | -14.59 | 324.80 | 44.16 | 256.35 | 0.6961 | 678.0 | 604.5 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -15.70 | 325.04 | 44.41 | 254.80 | 0.7004 | 543.0 | 498.1 | |
| 0.00 | 1.30 | 0.00 | 0.90 | -14.82 | 324.68 | 44.04 | 256.02 | 0.6950 | 618.0 | 540.5 | |
| 8.26 | -18.00 | 5.77 | -18.00 | -17.56 | 325.42 | 44.78 | 252.23 | 0.7076 | 822.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -15.42 | 324.71 | 44.07 | 255.15 | 0.6960 | 647.0 | 565.6 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -13.74 | 322.32 | 41.68 | 257.31 | 0.6645 | 366.0 | 314.4 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -14.99 | 322.61 | 41.97 | 255.48 | 0.6696 | 431.0 | 398.3 | |
| 3.91 | 52.19 | 2.64 | 34.95 | -17.54 | 323.15 | 42.52 | 251.82 | 0.6806 | -315.0 | -295.5 | |
| 0.00 | 2.35 | 0.00 | 1.59 | -18.15 | 323.12 | 42.48 | 250.92 | 0.6814 | 111.0 | 131.7 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -16.93 | 322.73 | 42.09 | 252.63 | 0.6743 | -227.0 | -327.4 | |
| 0.00 | 1.74 | 0.00 | 1.16 | -17.31 | 322.54 | 41.90 | 252.02 | 0.6727 | -349.0 | -374.3 | |
| 3.31 | -27.00 | 2.21 | -27.00 | -17.68 | 322.47 | 41.84 | 251.46 | 0.6726 | -601.2 | 999999 | |
| 0.00 | 8.26 | 0.00 | 5.54 | -18.34 | 322.67 | 42.03 | 250.54 | 0.6764 | 38.0 | -35.8 | |
| 0.00 | 1.30 | 0.00 | 0.87 | -17.34 | 322.13 | 41.49 | 251.89 | 0.6677 | -562.0 | -426.9 | |
| 10.35 | -27.00 | 6.89 | -27.00 | -17.94 | 322.25 | 41.62 | 251.02 | 0.6705 | -757.8 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.63 | -18.88 | 322.45 | 41.81 | 249.69 | 0.6750 | -437.0 | -360.7 | |
| 0.00 | 1.83 | 0.00 | 1.22 | -18.25 | 322.22 | 41.58 | 250.56 | 0.6707 | -427.0 | -413.0 | |
| 0.00 | 1.91 | 0.00 | 1.28 | -19.63 | 322.00 | 41.36 | 248.48 | 0.6714 | -526.0 | -417.3 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -18.19 | 321.49 | 40.85 | 250.47 | 0.6617 | -595.0 | -538.1 | |
| 3.22 | 6.44 | 2.13 | 4.26 | -19.76 | 321.49 | 40.86 | 248.14 | 0.6657 | -673.6 | -497.1 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -19.52 | 321.34 | 40.70 | 248.44 | 0.6632 | -449.0 | -429.1 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -19.53 | 320.92 | 40.28 | 248.32 | 0.6581 | -609.0 | -590.7 | |
| 0.00 | 1.39 | 0.00 | 0.91 | -19.12 | 320.63 | 40.00 | 248.85 | 0.6535 | -558.0 | -476.0 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -19.27 | 320.68 | 40.04 | 248.64 | 0.6544 | -746.0 | -691.0 | |
| 0.00 | 1.13 | 0.00 | 0.74 | -19.74 | 320.49 | 39.85 | 247.86 | 0.6534 | -484.0 | -483.3 | |
| 4.18 | 8.18 | 2.73 | 5.34 | -20.62 | 320.38 | 39.75 | 246.52 | 0.6548 | 718.4 | 475.7 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -18.31 | 319.47 | 38.83 | 249.73 | 0.6369 | -731.0 | -641.9 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -21.77 | 320.42 | 39.78 | 244.83 | 0.6589 | -587.0 | -496.2 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -18.75 | 319.35 | 38.71 | 249.02 | 0.6365 | -376.0 | -336.8 | |
| 0.00 | 1.30 | 0.00 | 0.84 | -19.53 | 319.16 | 38.52 | 247.75 | 0.6365 | -466.0 | -350.0 | |
| 0.00 | 2.70 | 0.00 | 1.73 | -20.12 | 319.20 | 38.57 | 246.87 | 0.6388 | -562.0 | -415.4 | |
| 0.00 | 2.44 | 0.00 | 1.57 | -20.88 | 319.35 | 38.71 | 245.76 | 0.6431 | -432.0 | -247.7 | |
| 0.61 | 7.48 | 0.39 | 4.80 | -20.64 | 319.20 | 38.56 | 246.07 | 0.6405 | -542.1 | -428.3 | |
| 0.00 | 0.61 | 0.00 | 0.39 | -21.31 | 319.40 | 38.76 | 245.13 | 0.6452 | -535.0 | -451.9 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -19.32 | 318.73 | 38.10 | 247.94 | 0.6305 | -479.0 | -385.7 | |
| 1.22 | -52.00 | 0.78 | -52.00 | -20.44 | 318.97 | 38.34 | 246.29 | 0.6371 | -466.2 | 999999 | |
| 26.01 | 48.10 | 16.50 | 30.54 | -20.12 | 318.27 | 37.64 | 246.53 | 0.6274 | -835.2 | -313.3 | |
| 0.00 | 1.13 | 0.00 | 0.71 | -19.19 | 317.90 | 37.26 | 247.85 | 0.6197 | -352.0 | -371.8 | |
| 0.52 | 1.39 | 0.33 | 0.87 | -19.37 | 317.59 | 36.95 | 247.46 | 0.6163 | 534.3 | 456.9 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -19.39 | 317.32 | 36.68 | 247.33 | 0.6129 | 220.0 | 281.7 | |
| 3.48 | 6.52 | 2.20 | 4.13 | -21.25 | 317.67 | 37.04 | 244.55 | 0.6240 | -698.1 | -555.5 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -18.75 | 316.80 | 36.16 | 248.16 | 0.6042 | -578.0 | -526.9 | |
| 0.00 | 1.83 | 0.00 | 1.14 | -19.12 | 316.85 | 36.22 | 247.59 | 0.6061 | -602.0 | -588.7 | |
| 0.00 | 1.30 | 0.00 | 0.82 | -20.15 | 317.04 | 36.41 | 246.02 | 0.6121 | -581.0 | -524.8 | |
| 0.87 | 16.01 | 0.55 | 10.00 | -20.86 | 317.12 | 36.48 | 244.94 | 0.6157 | -646.0 | 68.1 | |
| 0.00 | 1.57 | 0.00 | 0.97 | -19.68 | 316.76 | 36.12 | 246.66 | 0.6069 | -576.0 | -458.6 | |
| 0.00 | 2.70 | 0.00 | 1.70 | -21.60 | 317.17 | 36.54 | 243.80 | 0.6192 | -428.0 | -392.6 | |
| 1.13 | 2.35 | 0.71 | 1.47 | -21.20 | 317.02 | 36.38 | 244.35 | 0.6158 | -778.8 | -649.5 | |
| 0.87 | -64.00 | 0.54 | -64.00 | -20.44 | 316.81 | 36.17 | 245.45 | 0.6102 | 597.2 | 999999 | |
| 0.61 | -64.00 | 0.38 | -64.00 | -20.74 | 316.57 | 35.94 | 244.89 | 0.6084 | 630.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
