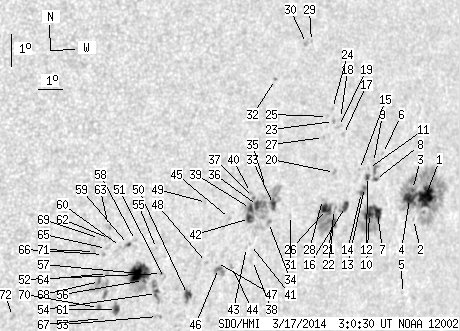

SDO HMI 2014-03-17 03:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.71 | 491.38 | 85.22 | 346.08 | -17.85 | 325.03 | 44.94 | 251.59 | 0.7092 | 88.1 | 115.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-17 03:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.62 | 151.21 | 15.71 | 114.97 | -16.79 | 329.79 | 49.70 | 253.98 | 0.7620 | 716.7 | 259.1 | |
| 0.00 | 0.96 | 0.00 | 0.73 | -17.52 | 329.47 | 49.38 | 252.98 | 0.7594 | 368.0 | 410.0 | |
| 1.22 | -1.00 | 0.92 | -1.00 | -16.64 | 329.11 | 49.02 | 254.10 | 0.7544 | 754.6 | 999999 | |
| 9.57 | -1.00 | 7.19 | -1.00 | -16.92 | 329.06 | 48.97 | 253.73 | 0.7542 | 854.6 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -19.78 | 329.83 | 49.74 | 250.08 | 0.7661 | 387.0 | 405.0 | |
| 0.00 | 1.04 | 0.00 | 0.76 | -15.69 | 327.40 | 47.31 | 255.18 | 0.7343 | 467.0 | 408.4 | |
| 7.92 | 48.89 | 5.81 | 35.74 | -17.46 | 327.74 | 47.66 | 252.82 | 0.7403 | 656.5 | 306.0 | |
| 1.22 | 7.48 | 0.89 | 5.43 | -16.49 | 327.33 | 47.24 | 254.09 | 0.7344 | 542.1 | 540.3 | |
| 0.00 | 1.83 | 0.00 | 1.32 | -15.99 | 327.08 | 46.99 | 254.73 | 0.7310 | 265.0 | 285.5 | |
| 8.70 | -7.00 | 6.34 | -7.00 | -17.53 | 327.39 | 47.31 | 252.69 | 0.7364 | 817.6 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.69 | -16.19 | 326.91 | 46.82 | 254.44 | 0.7293 | 506.0 | 552.9 | |
| 1.65 | 3.31 | 1.19 | 2.39 | -16.43 | 326.94 | 46.85 | 254.11 | 0.7299 | 623.9 | 478.9 | |
| 1.13 | 6.26 | 0.82 | 4.52 | -16.77 | 326.91 | 46.82 | 253.65 | 0.7300 | 723.2 | 623.5 | |
| 1.57 | -13.00 | 1.13 | -13.00 | -16.93 | 326.83 | 46.74 | 253.41 | 0.7293 | 748.4 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -16.25 | 326.52 | 46.44 | 254.30 | 0.7249 | 456.0 | 468.1 | |
| 4.00 | 8.35 | 2.86 | 5.96 | -17.41 | 326.25 | 46.17 | 252.67 | 0.7234 | 688.6 | 581.0 | |
| 0.00 | 1.91 | 0.00 | 1.35 | -15.27 | 325.52 | 45.43 | 255.54 | 0.7121 | 501.0 | 397.3 | |
| 0.00 | 1.22 | 0.00 | 0.85 | -14.81 | 325.26 | 45.18 | 256.16 | 0.7085 | 506.0 | 509.8 | |
| 0.00 | 2.61 | 0.00 | 1.83 | -15.05 | 325.24 | 45.15 | 255.81 | 0.7085 | 629.0 | 557.9 | |
| 0.00 | 2.00 | 0.00 | 1.41 | -16.44 | 325.46 | 45.37 | 253.90 | 0.7128 | 619.0 | 541.7 | |
| 0.00 | 1.39 | 0.00 | 0.99 | -17.54 | 325.80 | 45.71 | 252.41 | 0.7184 | 575.0 | 595.1 | |
| 2.87 | 43.33 | 2.04 | 30.63 | -17.93 | 325.88 | 45.80 | 251.89 | 0.7199 | 728.2 | 509.7 | |
| 0.00 | 1.48 | 0.00 | 1.03 | -14.92 | 324.99 | 44.90 | 255.97 | 0.7054 | 594.0 | 585.0 | |
| 0.00 | 1.13 | 0.00 | 0.79 | -14.54 | 324.84 | 44.76 | 256.49 | 0.7033 | 581.0 | 577.2 | |
| 0.00 | 1.30 | 0.00 | 0.90 | -14.80 | 324.69 | 44.60 | 256.11 | 0.7017 | 519.0 | 469.9 | |
| 7.83 | -22.00 | 5.52 | -22.00 | -17.57 | 325.45 | 45.36 | 252.31 | 0.7144 | 887.1 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -15.43 | 324.69 | 44.60 | 255.20 | 0.7024 | 473.0 | 492.8 | |
| 0.00 | 0.96 | 0.00 | 0.67 | -17.29 | 325.18 | 45.10 | 252.66 | 0.7108 | 326.0 | 325.1 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -12.62 | 323.50 | 43.41 | 259.13 | 0.6852 | -299.0 | -378.9 | |
| 0.00 | 2.61 | 0.00 | 1.76 | -12.70 | 323.30 | 43.21 | 259.00 | 0.6828 | -762.0 | -508.6 | |
| 0.00 | 1.22 | 0.00 | 0.84 | -17.88 | 323.96 | 43.87 | 251.60 | 0.6974 | -177.0 | -196.9 | |
| 0.00 | 1.22 | 0.00 | 0.81 | -13.87 | 322.26 | 42.17 | 257.16 | 0.6708 | 431.0 | 348.2 | |
| 4.00 | 19.31 | 2.72 | 13.12 | -17.61 | 323.14 | 43.05 | 251.82 | 0.6872 | -398.9 | -71.5 | |
| 0.00 | 2.78 | 0.00 | 1.89 | -18.17 | 323.09 | 43.01 | 251.01 | 0.6877 | 85.0 | 88.2 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -17.10 | 322.65 | 42.56 | 252.47 | 0.6803 | -139.0 | -246.9 | |
| 4.09 | 36.80 | 2.75 | 24.78 | -17.69 | 322.48 | 42.39 | 251.56 | 0.6794 | -619.6 | -383.1 | |
| 0.35 | 1.48 | 0.23 | 0.99 | -17.47 | 322.25 | 42.16 | 251.84 | 0.6761 | -633.5 | -526.7 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -19.36 | 322.78 | 42.69 | 249.21 | 0.6866 | -334.0 | -352.8 | |
| 3.04 | -36.00 | 2.04 | -36.00 | -17.81 | 322.22 | 42.13 | 251.34 | 0.6764 | -848.0 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.81 | -17.33 | 322.08 | 41.99 | 252.01 | 0.6738 | -408.0 | -478.8 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -18.89 | 322.54 | 42.45 | 249.84 | 0.6827 | -414.0 | -394.2 | |
| 4.78 | -36.00 | 3.21 | -36.00 | -18.11 | 322.26 | 42.18 | 250.90 | 0.6776 | -697.1 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -18.99 | 322.40 | 42.32 | 249.66 | 0.6813 | -332.0 | -410.5 | |
| 0.00 | 1.57 | 0.00 | 1.05 | -19.61 | 321.96 | 41.87 | 248.64 | 0.6774 | -465.0 | -407.6 | |
| 0.00 | 1.13 | 0.00 | 0.75 | -18.18 | 321.44 | 41.35 | 250.61 | 0.6678 | -613.0 | -582.1 | |
| 1.48 | 7.74 | 0.99 | 5.17 | -19.72 | 321.44 | 41.35 | 248.34 | 0.6715 | -694.5 | -525.7 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -19.54 | 321.30 | 41.21 | 248.56 | 0.6694 | -475.0 | -456.6 | |
| 0.00 | 1.13 | 0.00 | 0.75 | -19.57 | 320.89 | 40.80 | 248.40 | 0.6645 | -565.0 | -525.8 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -17.77 | 320.37 | 40.28 | 250.96 | 0.6537 | -559.0 | -473.9 | |
| 4.18 | 7.74 | 2.75 | 5.10 | -20.60 | 320.41 | 40.33 | 246.73 | 0.6617 | 715.5 | 517.3 | |
| 0.00 | 1.22 | 0.00 | 0.79 | -20.19 | 319.33 | 39.24 | 246.99 | 0.6474 | -395.0 | -351.1 | |
| 0.00 | 1.39 | 0.00 | 0.90 | -20.05 | 319.16 | 39.08 | 247.15 | 0.6449 | -627.0 | -551.4 | |
| 0.00 | 2.78 | 0.00 | 1.81 | -21.36 | 319.40 | 39.32 | 245.26 | 0.6520 | -609.0 | -351.2 | |
| 2.17 | 10.70 | 1.41 | 6.92 | -20.67 | 319.15 | 39.06 | 246.21 | 0.6466 | -524.1 | -441.0 | |
| 0.00 | 1.22 | 0.00 | 0.78 | -19.31 | 318.75 | 38.66 | 248.15 | 0.6375 | -291.0 | -377.1 | |
| 0.96 | 45.33 | 0.61 | 28.99 | -20.31 | 318.51 | 38.42 | 246.52 | 0.6377 | -527.4 | -336.2 | |
| 22.79 | -56.00 | 14.56 | -56.00 | -20.11 | 318.29 | 38.20 | 246.75 | 0.6343 | -882.1 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.88 | -19.12 | 317.85 | 37.76 | 248.13 | 0.6258 | -600.0 | -508.6 | |
| 0.87 | 2.87 | 0.55 | 1.81 | -19.27 | 317.61 | 37.52 | 247.83 | 0.6232 | 391.3 | 374.3 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -19.35 | 317.31 | 37.22 | 247.59 | 0.6197 | 207.0 | 171.1 | |
| 3.39 | 7.22 | 2.16 | 4.60 | -21.27 | 317.70 | 37.61 | 244.75 | 0.6310 | -755.1 | -521.3 | |
| 0.00 | 1.65 | 0.00 | 1.03 | -19.14 | 316.82 | 36.73 | 247.75 | 0.6128 | -534.0 | -561.0 | |
| 0.00 | 3.04 | 0.00 | 1.90 | -18.78 | 316.69 | 36.60 | 248.27 | 0.6100 | -184.0 | -273.5 | |
| 0.00 | 1.48 | 0.00 | 0.93 | -20.20 | 317.03 | 36.94 | 246.14 | 0.6190 | -768.0 | -554.4 | |
| 0.00 | 1.13 | 0.00 | 0.71 | -19.45 | 316.78 | 36.70 | 247.24 | 0.6133 | -565.0 | -418.1 | |
| 0.00 | 1.57 | 0.00 | 0.98 | -19.64 | 316.71 | 36.63 | 246.91 | 0.6131 | -599.0 | -552.4 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -21.58 | 317.22 | 37.14 | 244.08 | 0.6265 | -409.0 | -353.5 | |
| 0.61 | 18.88 | 0.38 | 11.88 | -20.47 | 316.78 | 36.69 | 245.63 | 0.6168 | 608.7 | 85.0 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -19.16 | 316.43 | 36.35 | 247.56 | 0.6079 | -513.0 | -496.0 | |
| 0.70 | 2.44 | 0.44 | 1.54 | -21.26 | 316.97 | 36.88 | 244.47 | 0.6221 | -805.8 | -617.7 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -19.57 | 316.34 | 36.25 | 246.88 | 0.6082 | -639.0 | -588.9 | |
| 0.00 | 2.35 | 0.00 | 1.43 | -21.76 | 313.72 | 33.63 | 242.16 | 0.5840 | -607.0 | -566.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
