SDO HMI 2014-03-17 09:01:15 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.41 | 466.76 | 92.05 | 348.78 | -17.78 | 325.14 | 48.34 | 252.27 | 0.7473 | 153.5 | 88.6 | |
|
previous
or next observation for the same group /

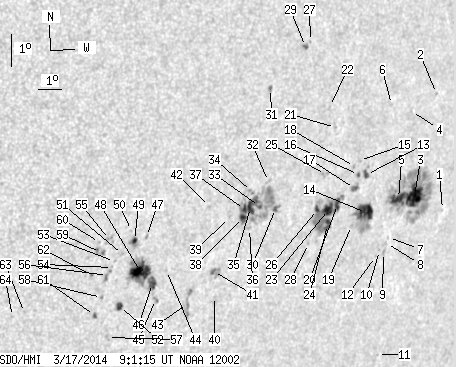

back to the solar disc SDO HMI 2014-03-17 09:01:15 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.44 | -16.98 | 331.45 | 54.65 | 254.16 | 0.8131 | 246.0 | 269.8 | |
| 0.00 | 0.87 | 0.00 | 0.71 | -13.59 | 329.86 | 53.06 | 258.31 | 0.7957 | 566.0 | 468.1 | |
| 23.15 | 141.08 | 18.89 | 114.78 | -16.71 | 329.85 | 53.05 | 254.38 | 0.7970 | 741.5 | 185.2 | |
| 0.00 | 0.96 | 0.00 | 0.76 | -14.24 | 328.80 | 52.00 | 257.44 | 0.7848 | 381.0 | 276.3 | |
| 9.31 | -3.00 | 7.47 | -3.00 | -16.87 | 329.09 | 52.29 | 254.11 | 0.7894 | 860.7 | 999999 | |
| 0.00 | 1.31 | 0.00 | 1.02 | -14.12 | 327.77 | 50.97 | 257.54 | 0.7738 | 385.0 | 303.6 | |
| 0.00 | 0.52 | 0.00 | 0.42 | -18.08 | 329.06 | 52.26 | 252.58 | 0.7902 | 409.0 | 344.3 | |
| 0.00 | 0.35 | 0.00 | 0.28 | -18.27 | 329.04 | 52.24 | 252.34 | 0.7901 | 561.0 | 479.8 | |
| 0.00 | 1.57 | 0.00 | 1.26 | -18.55 | 329.00 | 52.20 | 251.98 | 0.7901 | 438.0 | 357.4 | |
| 0.00 | 0.52 | 0.00 | 0.42 | -18.51 | 328.78 | 51.98 | 252.01 | 0.7878 | 583.0 | 487.7 | |
| 0.00 | 0.78 | 0.00 | 0.65 | -21.62 | 330.17 | 53.37 | 248.30 | 0.8052 | 191.0 | 238.8 | |
| 0.00 | 0.70 | 0.00 | 0.56 | -18.70 | 328.66 | 51.86 | 251.74 | 0.7867 | 447.0 | 373.5 | |
| 2.44 | 5.83 | 1.88 | 4.50 | -16.31 | 327.27 | 50.47 | 254.67 | 0.7699 | 694.6 | 538.0 | |
| 17.67 | 39.08 | 13.78 | 30.47 | -17.44 | 327.64 | 50.84 | 253.24 | 0.7749 | 756.0 | 258.5 | |
| 0.00 | 1.48 | 0.00 | 1.13 | -15.92 | 326.79 | 50.00 | 255.12 | 0.7645 | 546.0 | 482.4 | |
| 0.70 | 1.65 | 0.53 | 1.27 | -16.34 | 326.89 | 50.09 | 254.58 | 0.7659 | 759.8 | 675.9 | |
| 1.91 | 5.13 | 1.47 | 3.94 | -16.78 | 326.85 | 50.05 | 254.01 | 0.7658 | 749.0 | 630.3 | |
| 0.00 | 1.31 | 0.00 | 1.00 | -16.12 | 326.62 | 49.82 | 254.85 | 0.7627 | 794.0 | 669.1 | |
| 0.00 | 1.65 | 0.00 | 1.28 | -17.89 | 327.12 | 50.32 | 252.60 | 0.7698 | 172.0 | 170.3 | |
| 4.35 | 58.31 | 3.30 | 43.89 | -17.32 | 326.22 | 49.42 | 253.22 | 0.7596 | 709.0 | 551.1 | |
| 0.00 | 1.13 | 0.00 | 0.84 | -15.04 | 325.37 | 48.57 | 256.16 | 0.7480 | 632.0 | 509.4 | |
| 0.00 | 0.78 | 0.00 | 0.58 | -14.45 | 324.91 | 48.11 | 256.92 | 0.7424 | 618.0 | 516.1 | |
| 8.79 | -20.00 | 6.62 | -20.00 | -17.51 | 325.86 | 49.06 | 252.93 | 0.7559 | 961.3 | 999999 | |
| 4.79 | -20.00 | 3.62 | -20.00 | -17.96 | 325.98 | 49.18 | 252.35 | 0.7577 | 673.3 | 999999 | |
| 0.00 | 3.66 | 0.00 | 2.72 | -16.48 | 325.36 | 48.56 | 254.24 | 0.7492 | 701.0 | 626.9 | |
| 2.09 | -20.00 | 1.56 | -20.00 | -17.56 | 325.35 | 48.55 | 252.80 | 0.7504 | 896.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -12.59 | 323.56 | 46.76 | 259.36 | 0.7258 | -499.0 | -403.9 | |
| 0.00 | 0.61 | 0.00 | 0.46 | -18.61 | 325.31 | 48.51 | 251.40 | 0.7513 | -391.0 | -286.9 | |
| 1.13 | 2.87 | 0.81 | 2.05 | -12.76 | 323.38 | 46.58 | 259.12 | 0.7237 | -754.8 | -622.0 | |
| 1.39 | 69.97 | 1.00 | 49.80 | -17.69 | 323.44 | 46.64 | 252.33 | 0.7293 | -451.2 | -148.1 | |
| 0.44 | 2.44 | 0.31 | 1.71 | -14.14 | 322.17 | 45.37 | 257.10 | 0.7103 | 695.2 | 556.1 | |
| 0.00 | 2.44 | 0.00 | 1.74 | -16.92 | 322.87 | 46.07 | 253.32 | 0.7216 | -219.0 | -199.2 | |
| 1.04 | -30.00 | 0.74 | -30.00 | -17.70 | 322.71 | 45.91 | 252.21 | 0.7210 | -428.0 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.54 | -17.28 | 322.22 | 45.42 | 252.71 | 0.7146 | -534.0 | -555.0 | |
| 5.74 | -30.00 | 4.07 | -30.00 | -17.76 | 322.33 | 45.53 | 252.06 | 0.7167 | -651.3 | 999999 | |
| 0.00 | 1.57 | 0.00 | 1.11 | -18.39 | 322.49 | 45.69 | 251.21 | 0.7196 | -162.0 | -166.2 | |
| 2.70 | -30.00 | 1.90 | -30.00 | -17.84 | 322.08 | 45.29 | 251.90 | 0.7140 | -877.8 | 999999 | |
| 3.66 | -30.00 | 2.58 | -30.00 | -18.08 | 322.12 | 45.32 | 251.57 | 0.7148 | -784.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -18.14 | 321.51 | 44.71 | 251.38 | 0.7079 | -682.0 | -622.0 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -20.56 | 321.69 | 44.89 | 248.04 | 0.7148 | -35.0 | -22.7 | |
| 1.04 | 7.14 | 0.73 | 5.01 | -19.82 | 321.37 | 44.57 | 249.01 | 0.7095 | -711.6 | -500.9 | |
| 0.00 | 1.39 | 0.00 | 0.96 | -17.88 | 320.55 | 43.75 | 251.56 | 0.6961 | -455.0 | -360.7 | |
| 0.00 | 9.75 | 0.00 | 6.77 | -20.87 | 320.59 | 43.79 | 247.34 | 0.7031 | 675.0 | 605.7 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -19.95 | 319.35 | 42.55 | 248.31 | 0.6864 | -470.0 | -335.4 | |
| 0.00 | 2.70 | 0.00 | 1.83 | -20.86 | 319.18 | 42.39 | 246.96 | 0.6869 | -578.0 | -454.8 | |
| 5.22 | 51.70 | 3.53 | 34.61 | -20.39 | 318.89 | 42.09 | 247.56 | 0.6822 | -641.6 | -491.3 | |
| 0.00 | 1.65 | 0.00 | 1.10 | -18.99 | 318.19 | 41.39 | 249.40 | 0.6703 | 384.0 | 377.2 | |
| 20.19 | -46.00 | 13.50 | -46.00 | -20.07 | 318.27 | 41.47 | 247.85 | 0.6740 | -944.6 | 999999 | |
| 1.91 | 5.92 | 1.27 | 3.92 | -19.15 | 317.73 | 40.94 | 249.04 | 0.6651 | 465.8 | 394.6 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -18.86 | 317.52 | 40.72 | 249.41 | 0.6618 | -467.0 | -414.6 | |
| 0.00 | 1.39 | 0.00 | 0.92 | -19.61 | 317.37 | 40.57 | 248.25 | 0.6620 | -350.0 | -201.8 | |
| 3.05 | 4.96 | 2.03 | 3.30 | -21.19 | 317.75 | 40.95 | 246.05 | 0.6710 | -713.5 | -490.5 | |
| 0.00 | 0.52 | 0.00 | 0.34 | -19.85 | 317.11 | 40.31 | 247.82 | 0.6594 | -520.0 | -515.5 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -20.03 | 317.08 | 40.28 | 247.54 | 0.6597 | -595.0 | -526.7 | |
| 0.00 | 5.05 | 0.00 | 3.29 | -19.20 | 316.71 | 39.91 | 248.67 | 0.6528 | -760.0 | -559.8 | |
| 0.00 | 4.70 | 0.00 | 3.09 | -20.29 | 316.95 | 40.16 | 247.11 | 0.6589 | -841.0 | -684.9 | |
| 0.00 | 2.18 | 0.00 | 1.45 | -22.17 | 317.58 | 40.78 | 244.57 | 0.6721 | 134.0 | 179.0 | |
| 0.00 | 1.39 | 0.00 | 0.92 | -20.98 | 316.92 | 40.12 | 246.09 | 0.6605 | -288.0 | -347.0 | |
| 0.00 | 4.44 | 0.00 | 2.89 | -19.62 | 316.46 | 39.66 | 247.96 | 0.6509 | -635.0 | -736.2 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -19.32 | 316.33 | 39.53 | 248.38 | 0.6485 | -829.0 | -743.9 | |
| 0.70 | 2.09 | 0.46 | 1.38 | -21.54 | 316.81 | 40.01 | 245.21 | 0.6611 | -800.1 | -626.4 | |
| 0.00 | 1.13 | 0.00 | 0.74 | -20.34 | 316.31 | 39.51 | 246.83 | 0.6512 | 701.0 | 621.8 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -21.66 | 313.97 | 37.17 | 243.95 | 0.6273 | -631.0 | -463.3 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -21.81 | 313.53 | 36.73 | 243.52 | 0.6226 | -727.0 | -556.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
