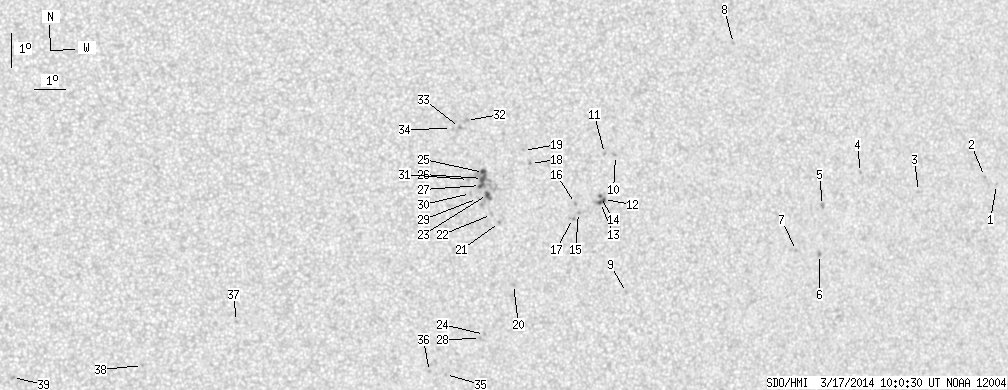

SDO HMI 2014-03-17 10:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.75 | 77.44 | 4.05 | 41.00 | -11.04 | 296.04 | 19.78 | 255.93 | 0.3442 | -112.9 | -255.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-17 10:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.47 | -9.62 | 311.24 | 34.98 | 263.36 | 0.5713 | 609.0 | 472.7 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -9.41 | 310.78 | 34.52 | 263.71 | 0.5646 | 744.0 | 660.8 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -10.02 | 308.45 | 32.19 | 262.46 | 0.5313 | 792.0 | 660.4 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -9.58 | 306.35 | 30.09 | 263.14 | 0.4999 | 701.0 | 617.3 | |
| 0.00 | 2.44 | 0.00 | 1.38 | -10.64 | 305.13 | 28.87 | 260.83 | 0.4826 | 874.0 | 725.9 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -12.11 | 305.19 | 28.93 | 257.81 | 0.4858 | 828.0 | 691.5 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -12.03 | 304.38 | 28.12 | 257.75 | 0.4736 | 796.0 | 655.2 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -5.98 | 301.76 | 25.50 | 271.04 | 0.4301 | 759.0 | 599.1 | |
| 0.00 | 1.39 | 0.00 | 0.75 | -13.58 | 298.78 | 22.52 | 251.89 | 0.3934 | -762.0 | -600.9 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -9.50 | 298.08 | 21.82 | 262.16 | 0.3717 | -785.0 | -627.8 | |
| 0.00 | 1.39 | 0.00 | 0.74 | -9.46 | 297.72 | 21.46 | 262.21 | 0.3659 | -903.0 | -727.4 | |
| 0.70 | 6.61 | 0.37 | 3.52 | -10.83 | 297.79 | 21.53 | 258.50 | 0.3694 | 721.1 | 767.4 | |
| 0.87 | -12.00 | 0.46 | -12.00 | -10.92 | 297.69 | 21.44 | 258.21 | 0.3682 | 987.8 | 999999 | |
| 0.44 | -12.00 | 0.23 | -12.00 | -10.75 | 297.68 | 21.42 | 258.69 | 0.3675 | 971.0 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -11.25 | 297.00 | 20.74 | 257.01 | 0.3580 | 796.0 | 668.3 | |
| 0.00 | 1.39 | 0.00 | 0.74 | -10.99 | 296.88 | 20.63 | 257.70 | 0.3555 | 1029.0 | 793.4 | |
| 0.00 | 2.00 | 0.00 | 1.06 | -11.44 | 296.82 | 20.56 | 256.41 | 0.3557 | 1003.0 | 889.1 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -9.85 | 295.36 | 19.10 | 260.39 | 0.3284 | 899.0 | 727.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -9.47 | 295.11 | 18.85 | 261.47 | 0.3237 | 773.0 | 635.2 | |
| 0.00 | 1.65 | 0.00 | 0.87 | -13.49 | 295.06 | 18.81 | 249.45 | 0.3363 | -795.0 | -627.1 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -11.65 | 294.48 | 18.22 | 254.44 | 0.3193 | -957.0 | -742.5 | |
| 0.00 | 1.65 | 0.00 | 0.86 | -11.42 | 294.21 | 17.95 | 254.97 | 0.3141 | -781.0 | -649.1 | |
| 1.13 | 6.96 | 0.59 | 3.62 | -10.83 | 294.04 | 17.78 | 256.74 | 0.3096 | -1021.8 | -780.1 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -15.03 | 294.25 | 17.99 | 244.30 | 0.3325 | -878.0 | -631.6 | |
| 1.48 | 23.32 | 0.77 | 12.13 | -10.18 | 293.88 | 17.62 | 258.76 | 0.3051 | -967.2 | -780.3 | |
| 1.91 | -25.00 | 1.00 | -25.00 | -10.36 | 293.86 | 17.60 | 258.16 | 0.3052 | -1111.7 | 999999 | |
| 1.22 | -25.00 | 0.63 | -25.00 | -10.57 | 293.80 | 17.54 | 257.45 | 0.3050 | -1239.9 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -15.15 | 294.13 | 17.87 | 243.82 | 0.3316 | -888.0 | -737.0 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -10.96 | 293.73 | 17.47 | 256.14 | 0.3050 | -625.0 | -606.5 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -10.82 | 293.50 | 17.24 | 256.45 | 0.3008 | -856.0 | -704.3 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -10.40 | 293.41 | 17.15 | 257.78 | 0.2982 | -829.0 | -633.1 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -8.65 | 293.26 | 17.00 | 263.66 | 0.2922 | -896.0 | -757.9 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -8.86 | 293.05 | 16.79 | 262.86 | 0.2890 | -964.0 | -762.4 | |
| 0.00 | 0.26 | 0.00 | 0.13 | -8.90 | 292.80 | 16.54 | 262.65 | 0.2849 | -350.0 | -369.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -16.27 | 293.09 | 16.83 | 239.41 | 0.3244 | -717.0 | -603.4 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -16.20 | 292.57 | 16.31 | 238.89 | 0.3164 | -832.0 | -681.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -14.86 | 286.34 | 10.08 | 231.09 | 0.2185 | -757.0 | -604.4 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -16.23 | 283.45 | 7.20 | 217.03 | 0.2006 | -873.0 | -689.4 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -16.63 | 279.41 | 3.15 | 197.62 | 0.1746 | -948.0 | -823.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
