SDO HMI 2014-03-17 14:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.59 | 405.80 | 76.24 | 319.81 | -17.59 | 325.09 | 51.03 | 252.89 | 0.7757 | 102.8 | 82.2 | |
|
previous
or next observation for the same group /

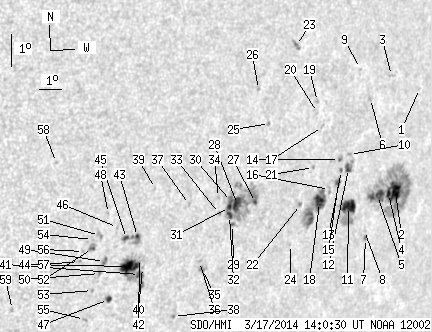

back to the solar disc SDO HMI 2014-03-17 14:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.45 | -13.51 | 330.00 | 55.94 | 258.46 | 0.8243 | 345.0 | 344.3 | |
| 10.35 | 119.95 | 9.01 | 103.99 | -16.70 | 329.94 | 55.88 | 254.58 | 0.8247 | 645.5 | 154.2 | |
| 0.00 | 1.91 | 0.00 | 1.60 | -13.27 | 328.41 | 54.34 | 258.73 | 0.8086 | 627.0 | 553.2 | |
| 2.44 | -2.00 | 2.10 | -2.00 | -16.76 | 329.58 | 55.52 | 254.48 | 0.8213 | 776.9 | 999999 | |
| 11.13 | -2.00 | 9.49 | -2.00 | -16.88 | 329.03 | 54.96 | 254.30 | 0.8161 | 807.2 | 999999 | |
| 0.00 | 2.61 | 0.00 | 2.15 | -14.05 | 327.57 | 53.50 | 257.73 | 0.8003 | 256.0 | 245.8 | |
| 0.61 | 1.91 | 0.52 | 1.63 | -18.21 | 328.97 | 54.91 | 252.66 | 0.8164 | 528.0 | 437.2 | |
| 0.00 | 1.22 | 0.00 | 1.04 | -17.98 | 328.81 | 54.74 | 252.93 | 0.8147 | 558.0 | 498.6 | |
| 0.00 | 1.13 | 0.00 | 0.91 | -13.22 | 326.78 | 52.72 | 258.76 | 0.7920 | 374.0 | 317.5 | |
| 0.00 | 1.57 | 0.00 | 1.28 | -15.81 | 327.11 | 53.04 | 255.50 | 0.7964 | 595.0 | 519.4 | |
| 13.22 | 32.53 | 10.94 | 26.93 | -17.35 | 327.67 | 53.60 | 253.62 | 0.8031 | 745.9 | 261.7 | |
| 3.22 | 8.35 | 2.63 | 6.83 | -16.23 | 327.21 | 53.15 | 254.99 | 0.7977 | 692.5 | 441.9 | |
| 0.61 | 1.65 | 0.49 | 1.34 | -16.32 | 326.89 | 52.82 | 254.84 | 0.7945 | 728.3 | 637.2 | |
| 0.43 | 2.44 | 0.35 | 1.97 | -16.00 | 326.66 | 52.60 | 255.23 | 0.7920 | 692.2 | 603.0 | |
| 2.17 | 4.44 | 1.77 | 3.60 | -16.69 | 326.87 | 52.81 | 254.38 | 0.7946 | 701.6 | 579.0 | |
| 0.00 | 2.96 | 0.00 | 2.38 | -16.94 | 326.51 | 52.44 | 254.03 | 0.7911 | 583.0 | 500.2 | |
| 0.00 | 1.48 | 0.00 | 1.16 | -15.11 | 325.48 | 51.42 | 256.29 | 0.7791 | 515.0 | 438.5 | |
| 9.83 | 41.67 | 7.87 | 33.23 | -17.37 | 326.17 | 52.10 | 253.45 | 0.7879 | 853.5 | 591.1 | |
| 0.00 | 1.22 | 0.00 | 0.95 | -14.39 | 325.00 | 50.94 | 257.18 | 0.7736 | 686.0 | 593.6 | |
| 0.00 | 0.52 | 0.00 | 0.41 | -14.72 | 325.11 | 51.04 | 256.77 | 0.7749 | 534.0 | 544.0 | |
| 0.00 | 0.96 | 0.00 | 0.75 | -16.36 | 325.48 | 51.41 | 254.68 | 0.7799 | 732.0 | 655.8 | |
| 0.00 | 1.65 | 0.00 | 1.30 | -17.52 | 325.26 | 51.20 | 253.17 | 0.7787 | 813.0 | 730.6 | |
| 0.00 | 4.09 | 0.00 | 3.09 | -12.83 | 323.54 | 49.47 | 259.16 | 0.7569 | -720.0 | -552.7 | |
| 0.00 | 0.70 | 0.00 | 0.55 | -18.75 | 325.26 | 51.20 | 251.59 | 0.7800 | -385.0 | -306.2 | |
| 0.00 | 0.61 | 0.00 | 0.46 | -15.25 | 322.96 | 48.89 | 255.91 | 0.7518 | 658.0 | 564.0 | |
| 0.00 | 1.13 | 0.00 | 0.83 | -14.29 | 322.16 | 48.09 | 257.13 | 0.7421 | 685.0 | 503.6 | |
| 1.30 | 73.94 | 0.98 | 55.05 | -17.65 | 323.11 | 49.04 | 252.73 | 0.7559 | -184.5 | -136.6 | |
| 8.44 | -27.00 | 6.26 | -27.00 | -17.79 | 322.30 | 48.23 | 252.44 | 0.7472 | -644.6 | 999999 | |
| 0.70 | 2.35 | 0.52 | 1.75 | -18.41 | 322.29 | 48.22 | 251.62 | 0.7480 | -496.6 | -282.1 | |
| 1.48 | -27.00 | 1.09 | -27.00 | -17.72 | 321.99 | 47.93 | 252.49 | 0.7438 | -849.6 | 999999 | |
| 2.09 | -27.00 | 1.54 | -27.00 | -17.91 | 321.97 | 47.90 | 252.23 | 0.7437 | -890.3 | 999999 | |
| 2.87 | -27.00 | 2.12 | -27.00 | -18.15 | 322.05 | 47.99 | 251.92 | 0.7450 | -730.4 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.02 | -18.13 | 321.58 | 47.51 | 251.88 | 0.7397 | -665.0 | -620.6 | |
| 0.00 | 1.22 | 0.00 | 0.89 | -17.66 | 321.36 | 47.30 | 252.48 | 0.7367 | -390.0 | -422.1 | |
| 0.00 | 4.35 | 0.00 | 3.20 | -19.87 | 321.43 | 47.37 | 249.51 | 0.7410 | -670.0 | -496.4 | |
| 0.00 | 1.83 | 0.00 | 1.34 | -19.65 | 321.21 | 47.14 | 249.77 | 0.7381 | -374.0 | -342.3 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -17.98 | 320.14 | 46.08 | 251.85 | 0.7234 | -596.0 | -534.6 | |
| 0.00 | 1.39 | 0.00 | 1.01 | -21.40 | 320.69 | 46.63 | 247.31 | 0.7359 | 718.0 | 614.8 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -17.62 | 318.51 | 44.44 | 252.04 | 0.7039 | -609.0 | -513.9 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -20.04 | 318.74 | 44.68 | 248.71 | 0.7113 | -275.0 | -262.4 | |
| 2.70 | 40.01 | 1.89 | 27.95 | -20.26 | 318.69 | 44.62 | 248.39 | 0.7112 | -589.4 | -424.1 | |
| 0.00 | 1.30 | 0.00 | 0.91 | -19.78 | 318.52 | 44.45 | 249.02 | 0.7081 | -177.0 | -177.2 | |
| 1.65 | 10.61 | 1.15 | 7.35 | -19.13 | 318.20 | 44.14 | 249.86 | 0.7031 | 570.7 | 398.6 | |
| 17.22 | -41.00 | 11.99 | -41.00 | -20.06 | 318.17 | 44.10 | 248.55 | 0.7048 | -918.3 | 999999 | |
| 1.74 | -43.00 | 1.20 | -43.00 | -19.23 | 317.75 | 43.69 | 249.62 | 0.6981 | 775.9 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.83 | -18.93 | 317.26 | 43.20 | 249.93 | 0.6917 | -406.0 | -349.2 | |
| 2.17 | 3.22 | 1.51 | 2.23 | -21.13 | 317.62 | 43.56 | 246.91 | 0.7011 | -714.0 | -612.2 | |
| 0.00 | 1.22 | 0.00 | 0.82 | -18.54 | 316.75 | 42.68 | 250.37 | 0.6848 | -568.0 | -447.6 | |
| 0.00 | 3.65 | 0.00 | 2.50 | -19.99 | 317.05 | 42.98 | 248.35 | 0.6916 | -844.0 | -661.1 | |
| 0.00 | 1.74 | 0.00 | 1.19 | -20.37 | 316.96 | 42.90 | 247.79 | 0.6916 | -787.0 | -695.7 | |
| 0.00 | 3.65 | 0.00 | 2.47 | -19.23 | 316.58 | 42.52 | 249.33 | 0.6843 | -641.0 | -592.5 | |
| 1.22 | 4.87 | 0.82 | 3.29 | -19.64 | 316.41 | 42.35 | 248.69 | 0.6833 | -814.4 | -691.6 | |
| 0.00 | 1.22 | 0.00 | 0.83 | -20.91 | 316.84 | 42.78 | 247.00 | 0.6916 | -463.0 | -368.3 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -19.37 | 316.33 | 42.26 | 249.06 | 0.6816 | -568.0 | -572.4 | |
| 0.00 | 1.74 | 0.00 | 1.19 | -21.82 | 316.82 | 42.76 | 245.71 | 0.6938 | -759.0 | -588.8 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -19.76 | 316.07 | 42.00 | 248.42 | 0.6795 | -728.0 | -554.5 | |
| 0.00 | 1.13 | 0.00 | 0.76 | -20.08 | 316.00 | 41.93 | 247.95 | 0.6795 | 188.0 | 71.8 | |
| 0.00 | 1.04 | 0.00 | 0.68 | -17.17 | 314.18 | 40.12 | 251.78 | 0.6504 | -470.0 | -391.8 | |
| 0.00 | 1.83 | 0.00 | 1.20 | -21.75 | 313.71 | 39.65 | 244.78 | 0.6574 | -663.0 | -571.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
