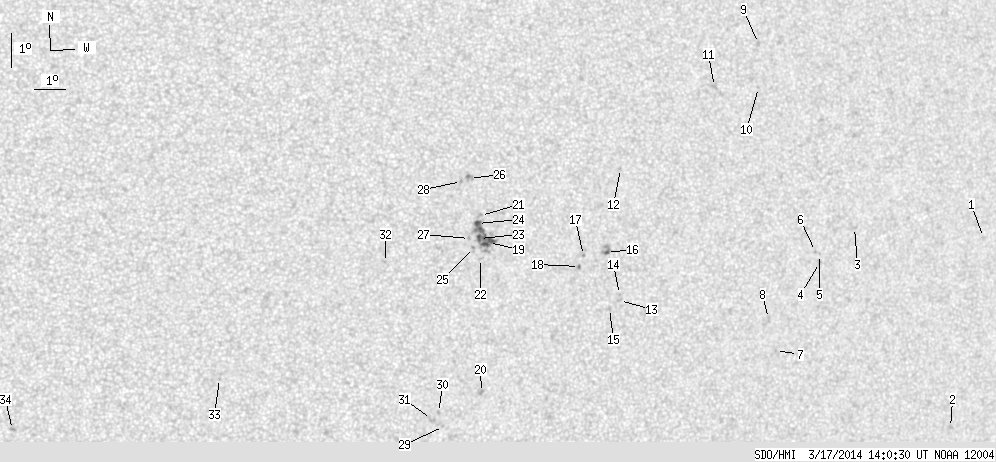

SDO HMI 2014-03-17 14:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.74 | 91.59 | 5.15 | 49.45 | -11.04 | 296.56 | 22.50 | 257.19 | 0.3872 | -215.4 | -272.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-17 14:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.86 | -9.57 | 311.13 | 37.07 | 263.51 | 0.6004 | 637.0 | 559.1 | |
| 0.00 | 2.61 | 0.00 | 1.62 | -15.32 | 310.81 | 36.75 | 253.90 | 0.6029 | 39.0 | 74.3 | |
| 0.00 | 2.00 | 0.00 | 1.17 | -9.60 | 306.38 | 32.31 | 263.25 | 0.5328 | 630.0 | 531.3 | |
| 0.00 | 1.65 | 0.00 | 0.96 | -10.72 | 305.25 | 31.19 | 261.00 | 0.5172 | 769.0 | 649.3 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -10.48 | 305.22 | 31.16 | 261.46 | 0.5166 | 369.0 | 379.8 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -10.40 | 305.07 | 31.01 | 261.60 | 0.5143 | 755.0 | 613.6 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -13.44 | 304.03 | 29.96 | 255.42 | 0.5040 | 717.0 | 597.9 | |
| 0.00 | 3.13 | 0.00 | 1.78 | -12.49 | 303.66 | 29.59 | 257.19 | 0.4965 | 758.0 | 560.6 | |
| 0.00 | 2.26 | 0.00 | 1.28 | -4.32 | 302.65 | 28.59 | 274.02 | 0.4803 | 650.0 | 500.1 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -5.63 | 302.71 | 28.65 | 271.27 | 0.4792 | 661.0 | 477.5 | |
| 0.00 | 2.44 | 0.00 | 1.35 | -5.69 | 301.22 | 27.16 | 271.41 | 0.4562 | 757.0 | 529.2 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -8.29 | 298.23 | 24.17 | 265.56 | 0.4081 | -778.0 | -642.4 | |
| 0.00 | 1.65 | 0.00 | 0.90 | -12.23 | 298.52 | 24.45 | 256.09 | 0.4185 | -756.0 | -614.5 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -12.05 | 298.50 | 24.43 | 256.51 | 0.4178 | -795.0 | -645.2 | |
| 0.00 | 1.65 | 0.00 | 0.90 | -12.49 | 298.21 | 24.14 | 255.36 | 0.4145 | -117.0 | -120.4 | |
| 0.87 | 6.00 | 0.47 | 3.25 | -10.82 | 297.96 | 23.89 | 259.30 | 0.4066 | 958.1 | 797.9 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -10.95 | 297.20 | 23.14 | 258.75 | 0.3951 | 931.0 | 781.9 | |
| 0.00 | 1.48 | 0.00 | 0.80 | -11.28 | 297.10 | 23.03 | 257.87 | 0.3942 | 972.0 | 848.9 | |
| 5.13 | 34.19 | 2.71 | 18.01 | -10.69 | 294.08 | 20.02 | 258.26 | 0.3450 | -901.3 | -789.4 | |
| 0.00 | 2.35 | 0.00 | 1.25 | -15.19 | 294.23 | 20.16 | 246.02 | 0.3656 | -870.0 | -621.2 | |
| 0.00 | 2.35 | 0.00 | 1.24 | -9.90 | 293.77 | 19.71 | 260.46 | 0.3383 | -650.0 | -570.4 | |
| 0.00 | 1.74 | 0.00 | 0.92 | -11.18 | 293.86 | 19.79 | 256.75 | 0.3427 | -792.0 | -588.7 | |
| 1.83 | -19.00 | 0.96 | -19.00 | -10.58 | 293.78 | 19.72 | 258.44 | 0.3400 | -1201.2 | 999999 | |
| 1.91 | -19.00 | 1.01 | -19.00 | -10.14 | 293.69 | 19.62 | 259.71 | 0.3375 | -1065.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -10.86 | 293.61 | 19.54 | 257.56 | 0.3379 | -965.0 | -794.9 | |
| 0.00 | 4.70 | 0.00 | 2.46 | -8.81 | 293.36 | 19.29 | 263.61 | 0.3300 | -836.0 | -725.9 | |
| 0.00 | 1.48 | 0.00 | 0.78 | -10.60 | 293.46 | 19.40 | 258.26 | 0.3349 | -972.0 | -716.5 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -8.91 | 293.11 | 19.04 | 263.25 | 0.3260 | -869.0 | -676.5 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -16.26 | 293.08 | 19.02 | 242.10 | 0.3555 | -709.0 | -560.5 | |
| 0.00 | 1.48 | 0.00 | 0.78 | -15.85 | 292.88 | 18.81 | 242.96 | 0.3498 | -887.0 | -711.2 | |
| 0.00 | 3.74 | 0.00 | 1.98 | -16.07 | 292.67 | 18.60 | 242.15 | 0.3482 | -675.0 | -663.6 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -11.41 | 290.83 | 16.76 | 254.15 | 0.2952 | -781.0 | -608.8 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -15.04 | 285.79 | 11.72 | 234.39 | 0.2424 | -755.0 | -540.0 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -16.68 | 279.36 | 5.30 | 207.92 | 0.1898 | -963.0 | -791.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
