SDO HMI 2014-03-17 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.79 | 21.05 | 1.52 | 11.40 | 13.36 | 284.60 | 12.18 | 329.40 | 0.4064 | -114.6 | -119.5 | |
|
previous
or next observation for the same group /

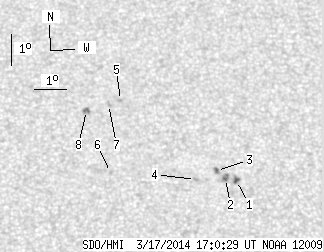

back to the solar disc SDO HMI 2014-03-17 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.39 | 3.83 | 0.76 | 2.08 | 12.59 | 286.46 | 14.04 | 324.62 | 0.4108 | -923.2 | -737.2 | |
| 0.70 | 4.09 | 0.38 | 2.22 | 12.65 | 286.11 | 13.70 | 325.36 | 0.4084 | -1089.4 | -923.6 | |
| 0.70 | 3.04 | 0.38 | 1.65 | 12.89 | 285.85 | 13.43 | 326.24 | 0.4092 | -1026.1 | -832.9 | |
| 0.00 | 2.17 | 0.00 | 1.17 | 12.59 | 285.17 | 12.76 | 327.18 | 0.3992 | -835.0 | -603.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 15.05 | 282.95 | 10.53 | 334.81 | 0.4165 | 722.0 | 637.2 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 12.74 | 282.53 | 10.11 | 333.11 | 0.3803 | 780.0 | 625.4 | |
| 0.00 | 1.83 | 0.00 | 0.99 | 14.92 | 282.56 | 10.15 | 335.47 | 0.4119 | 797.0 | 646.4 | |
| 0.00 | 3.83 | 0.00 | 2.07 | 14.71 | 281.86 | 9.45 | 336.77 | 0.4044 | 1181.0 | 893.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
