SDO HMI 2014-03-17 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.97 | 670.09 | 53.87 | 358.92 | 12.19 | 261.44 | -10.42 | 27.43 | 0.3785 | -755.1 | -381.9 | |
|
previous
or next observation for the same group /

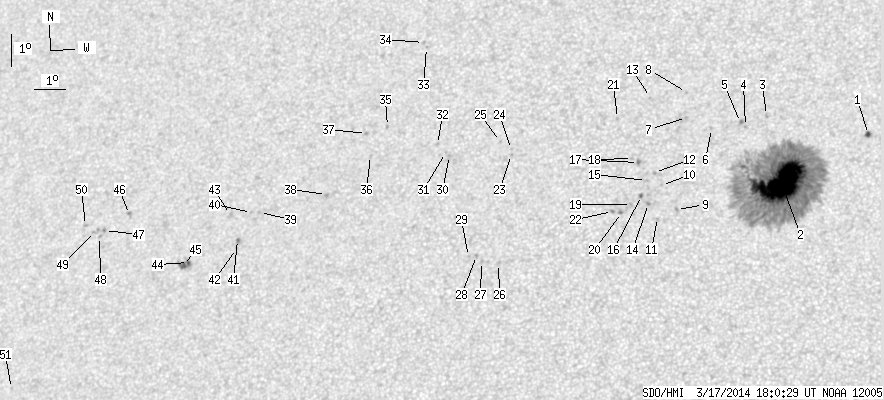

back to the solar disc SDO HMI 2014-03-17 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.57 | 2.78 | 0.83 | 1.48 | 13.65 | 265.44 | -6.42 | 17.08 | 0.3717 | 952.6 | 694.6 | |
| 95.57 | 594.54 | 50.81 | 316.12 | 12.18 | 262.80 | -9.06 | 25.09 | 0.3647 | -1521.6 | -454.1 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 14.32 | 262.25 | -9.61 | 23.98 | 0.3998 | -759.0 | -558.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 13.98 | 261.61 | -10.25 | 25.75 | 0.3992 | -836.0 | -678.6 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 14.12 | 261.45 | -10.41 | 25.96 | 0.4022 | -810.0 | -736.2 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 13.95 | 260.55 | -11.31 | 28.07 | 0.4063 | -795.0 | -635.4 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 14.32 | 259.74 | -12.12 | 29.28 | 0.4176 | -893.0 | -729.0 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 15.13 | 259.70 | -12.16 | 28.43 | 0.4291 | -710.0 | -487.6 | |
| 0.00 | 2.17 | 0.00 | 1.16 | 11.41 | 259.57 | -12.29 | 33.53 | 0.3793 | -976.0 | -729.0 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 12.18 | 259.07 | -12.79 | 33.47 | 0.3941 | -760.0 | -618.4 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 11.17 | 258.99 | -12.87 | 35.12 | 0.3815 | -552.0 | -558.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 12.60 | 258.83 | -13.03 | 33.37 | 0.4018 | -778.0 | -671.5 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 15.00 | 258.57 | -13.30 | 30.76 | 0.4361 | -667.0 | -541.8 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 11.62 | 258.69 | -13.17 | 35.07 | 0.3902 | -925.0 | -814.8 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 12.35 | 258.59 | -13.27 | 34.20 | 0.4007 | -732.0 | -591.7 | |
| 0.43 | 1.91 | 0.23 | 1.03 | 11.88 | 258.46 | -13.40 | 35.15 | 0.3957 | -934.2 | -766.8 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 12.93 | 258.31 | -13.55 | 33.94 | 0.4108 | -860.0 | -721.8 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 13.06 | 258.11 | -13.75 | 34.14 | 0.4143 | -625.0 | -471.5 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 11.61 | 258.16 | -13.70 | 36.17 | 0.3949 | -828.0 | -661.7 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 11.37 | 257.86 | -14.01 | 37.14 | 0.3947 | -948.0 | -703.9 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 14.36 | 257.56 | -14.30 | 33.45 | 0.4360 | -714.0 | -567.2 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 11.41 | 257.57 | -14.29 | 37.63 | 0.3980 | -797.0 | -606.1 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 13.33 | 254.24 | -17.62 | 40.60 | 0.4545 | -831.0 | -572.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 13.49 | 254.23 | -17.63 | 40.39 | 0.4564 | -755.0 | -635.2 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 13.76 | 253.86 | -18.01 | 40.59 | 0.4634 | -611.0 | -517.7 | |
| 0.00 | 1.91 | 0.00 | 1.04 | 9.91 | 254.05 | -17.81 | 46.41 | 0.4178 | 719.0 | 590.3 | |
| 0.00 | 1.74 | 0.00 | 0.95 | 9.99 | 253.50 | -18.36 | 47.13 | 0.4250 | 806.0 | 606.0 | |
| 0.00 | 1.48 | 0.00 | 0.81 | 10.19 | 253.33 | -18.53 | 47.06 | 0.4291 | 813.0 | 649.6 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 10.17 | 253.08 | -18.78 | 47.49 | 0.4318 | 710.0 | 605.6 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 13.39 | 252.23 | -19.63 | 43.60 | 0.4758 | 890.0 | 686.9 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 13.49 | 252.09 | -19.77 | 43.65 | 0.4784 | 806.0 | 633.3 | |
| 0.00 | 1.48 | 0.00 | 0.84 | 13.75 | 251.81 | -20.05 | 43.67 | 0.4843 | 849.0 | 697.9 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 16.91 | 251.12 | -20.74 | 40.30 | 0.5258 | -676.0 | -576.7 | |
| 0.00 | 1.48 | 0.00 | 0.86 | 17.08 | 251.01 | -20.86 | 40.25 | 0.5288 | -666.0 | -554.2 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 14.41 | 250.10 | -21.76 | 45.06 | 0.5093 | 817.0 | 618.4 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 13.51 | 249.62 | -22.24 | 46.99 | 0.5052 | 753.0 | 552.2 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 14.22 | 249.42 | -22.44 | 46.21 | 0.5146 | 763.0 | 557.3 | |
| 0.00 | 1.83 | 0.00 | 1.05 | 12.34 | 248.27 | -23.59 | 50.44 | 0.5091 | 792.0 | 690.8 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 11.90 | 246.07 | -25.80 | 53.63 | 0.5310 | 174.0 | 308.3 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 11.91 | 245.79 | -26.07 | 53.89 | 0.5343 | 648.0 | 551.1 | |
| 0.35 | 2.09 | 0.20 | 1.22 | 11.09 | 245.40 | -26.46 | 55.58 | 0.5322 | 999.2 | 925.2 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 10.81 | 245.39 | -26.47 | 56.03 | 0.5300 | 662.0 | 549.2 | |
| 0.00 | 3.04 | 0.00 | 1.79 | 11.89 | 245.08 | -26.78 | 54.66 | 0.5427 | 761.0 | 517.1 | |
| 0.70 | 8.09 | 0.41 | 4.78 | 10.47 | 243.78 | -28.08 | 58.14 | 0.5471 | 1004.5 | 767.0 | |
| 2.35 | -44.00 | 1.39 | -44.00 | 10.38 | 243.62 | -28.24 | 58.42 | 0.5485 | 882.7 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.65 | 12.12 | 241.54 | -30.32 | 57.64 | 0.5865 | 863.0 | 630.2 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 11.67 | 240.71 | -31.15 | 59.00 | 0.5933 | 847.0 | 774.5 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 11.49 | 240.55 | -31.31 | 59.39 | 0.5939 | 747.0 | 694.6 | |
| 0.00 | 3.13 | 0.00 | 1.93 | 11.66 | 240.39 | -31.47 | 59.27 | 0.5971 | 637.0 | 634.7 | |
| 0.00 | 1.30 | 0.00 | 0.81 | 11.87 | 240.00 | -31.86 | 59.27 | 0.6032 | 746.0 | 572.5 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 6.97 | 237.86 | -34.01 | 68.18 | 0.6002 | 614.0 | 527.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
