SDO HMI 2014-03-17 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.52 | 667.24 | 54.51 | 357.19 | 12.21 | 261.22 | -10.09 | 26.45 | 0.3772 | -734.4 | -374.3 | |
|
previous
or next observation for the same group /

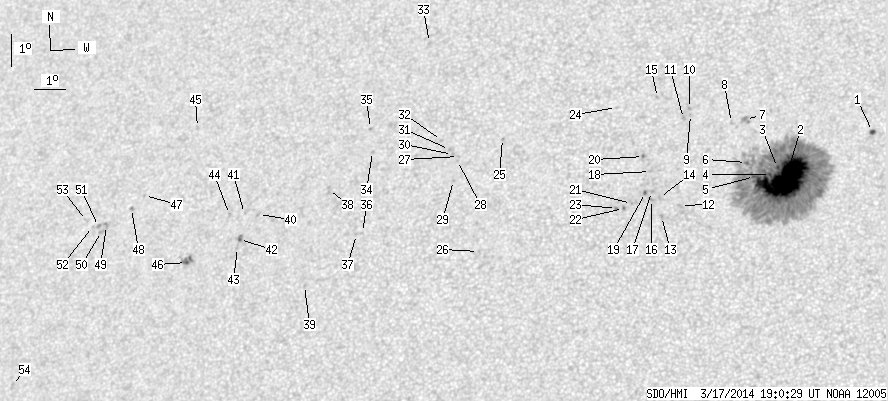

back to the solar disc SDO HMI 2014-03-17 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.48 | 2.78 | 0.79 | 1.48 | 13.64 | 265.45 | -5.86 | 15.67 | 0.3690 | 962.9 | 746.2 | |
| 95.05 | 586.71 | 50.45 | 311.47 | 12.20 | 262.80 | -8.51 | 23.70 | 0.3613 | -1529.7 | -458.4 | |
| 1.22 | -2.00 | 0.65 | -2.00 | 12.55 | 262.55 | -8.76 | 23.93 | 0.3682 | -836.7 | 999999 | |
| 1.39 | -2.00 | 0.74 | -2.00 | 12.33 | 262.34 | -8.97 | 24.69 | 0.3664 | -756.4 | 999999 | |
| 1.04 | -2.00 | 0.56 | -2.00 | 12.28 | 261.84 | -9.47 | 25.93 | 0.3690 | -807.0 | 999999 | |
| 0.43 | -2.00 | 0.23 | -2.00 | 12.73 | 261.58 | -9.73 | 26.02 | 0.3775 | -786.0 | 999999 | |
| 0.00 | 5.13 | 0.00 | 2.77 | 14.10 | 261.49 | -9.82 | 24.66 | 0.3980 | -882.0 | -698.0 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 14.02 | 261.06 | -10.25 | 25.71 | 0.3997 | -725.0 | -581.4 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 14.31 | 259.76 | -11.55 | 28.13 | 0.4131 | -872.0 | -646.0 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 14.50 | 259.72 | -11.59 | 27.99 | 0.4162 | -726.0 | -607.2 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 14.18 | 259.55 | -11.76 | 28.72 | 0.4130 | -707.0 | -604.1 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 11.42 | 259.58 | -11.73 | 32.28 | 0.3747 | -930.0 | -758.1 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 11.09 | 259.01 | -12.30 | 34.03 | 0.3753 | -892.0 | -632.2 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 11.69 | 258.92 | -12.39 | 33.33 | 0.3841 | -847.0 | -734.8 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 14.88 | 258.69 | -12.62 | 29.60 | 0.4293 | -580.0 | -506.0 | |
| 0.00 | 2.17 | 0.00 | 1.17 | 11.64 | 258.67 | -12.64 | 33.93 | 0.3856 | -895.0 | -787.9 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 11.89 | 258.66 | -12.65 | 33.59 | 0.3891 | -996.0 | -833.0 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 12.52 | 258.60 | -12.71 | 32.82 | 0.3981 | -660.0 | -574.4 | |
| 0.43 | 1.39 | 0.23 | 0.75 | 11.87 | 258.47 | -12.84 | 34.01 | 0.3904 | -955.2 | -854.4 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 13.01 | 258.35 | -12.96 | 32.65 | 0.4067 | -856.0 | -673.4 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 11.53 | 258.05 | -13.26 | 35.38 | 0.3898 | -849.0 | -673.9 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 11.38 | 257.81 | -13.50 | 36.10 | 0.3902 | -924.0 | -806.1 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 11.39 | 257.59 | -13.72 | 36.53 | 0.3923 | -832.0 | -615.1 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 14.60 | 257.41 | -13.90 | 32.39 | 0.4358 | -786.0 | -531.2 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 13.74 | 253.82 | -17.49 | 39.79 | 0.4580 | -568.0 | -517.2 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 10.20 | 253.29 | -18.02 | 46.23 | 0.4233 | 786.0 | 655.7 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 13.23 | 252.44 | -18.87 | 42.70 | 0.4661 | 885.0 | 663.2 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 13.10 | 252.42 | -18.89 | 42.92 | 0.4649 | 890.0 | 607.6 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 12.47 | 252.34 | -18.97 | 44.01 | 0.4588 | 775.0 | 637.8 | |
| 0.00 | 1.65 | 0.00 | 0.93 | 13.30 | 252.24 | -19.07 | 42.90 | 0.4690 | 795.0 | 599.9 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 13.46 | 252.13 | -19.18 | 42.82 | 0.4720 | 948.0 | 755.3 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 13.76 | 251.85 | -19.46 | 42.80 | 0.4783 | 878.0 | 672.8 | |
| 0.00 | 1.48 | 0.00 | 0.86 | 16.95 | 251.14 | -20.17 | 39.47 | 0.5209 | -710.0 | -515.5 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 13.52 | 249.61 | -21.70 | 46.29 | 0.4995 | 696.0 | 584.4 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 14.26 | 249.47 | -21.84 | 45.39 | 0.5086 | 828.0 | 653.6 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 10.96 | 249.50 | -21.81 | 50.42 | 0.4753 | 275.0 | 318.3 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 10.91 | 249.30 | -22.01 | 50.75 | 0.4771 | 627.0 | 516.5 | |
| 0.00 | 2.61 | 0.00 | 1.49 | 12.38 | 248.25 | -23.06 | 49.73 | 0.5034 | 698.0 | 642.3 | |
| 0.00 | 1.57 | 0.00 | 0.88 | 9.40 | 247.71 | -23.60 | 55.25 | 0.4828 | 679.0 | 554.9 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 11.72 | 245.98 | -25.33 | 53.41 | 0.5239 | 627.0 | 551.5 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 11.77 | 245.50 | -25.81 | 53.83 | 0.5301 | 522.0 | 376.8 | |
| 0.61 | 2.87 | 0.35 | 1.67 | 10.96 | 245.41 | -25.90 | 55.20 | 0.5244 | 912.3 | 816.1 | |
| 0.00 | 1.57 | 0.00 | 0.91 | 10.72 | 245.36 | -25.95 | 55.64 | 0.5229 | 554.0 | 406.6 | |
| 0.00 | 1.74 | 0.00 | 1.02 | 11.77 | 244.99 | -26.32 | 54.37 | 0.5362 | 708.0 | 484.2 | |
| 0.00 | 1.57 | 0.00 | 0.95 | 14.62 | 243.55 | -27.77 | 51.66 | 0.5769 | 608.0 | 426.6 | |
| 0.87 | 5.91 | 0.51 | 3.48 | 10.35 | 243.66 | -27.65 | 57.92 | 0.5409 | 940.2 | 846.9 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 12.56 | 241.96 | -29.35 | 56.13 | 0.5784 | 462.0 | 384.9 | |
| 0.00 | 1.65 | 0.00 | 1.00 | 12.17 | 241.55 | -29.76 | 57.06 | 0.5803 | 725.0 | 649.1 | |
| 0.00 | 2.70 | 0.00 | 1.65 | 11.69 | 240.73 | -30.58 | 58.48 | 0.5867 | 840.0 | 660.9 | |
| 0.00 | 2.35 | 0.00 | 1.43 | 11.52 | 240.57 | -30.74 | 58.88 | 0.5873 | 805.0 | 604.3 | |
| 0.00 | 2.35 | 0.00 | 1.44 | 11.68 | 240.44 | -30.87 | 58.74 | 0.5900 | 768.0 | 632.7 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 11.70 | 240.23 | -31.08 | 58.89 | 0.5927 | 629.0 | 475.3 | |
| 0.00 | 1.83 | 0.00 | 1.13 | 11.90 | 239.99 | -31.32 | 58.79 | 0.5970 | 756.0 | 527.0 | |
| 0.00 | 2.61 | 0.00 | 1.60 | 6.93 | 237.85 | -33.46 | 67.90 | 0.5929 | 588.0 | 361.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
