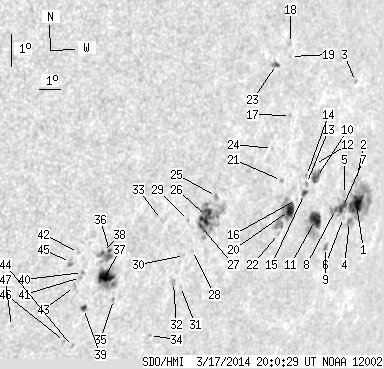

SDO HMI 2014-03-17 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.92 | 307.06 | 75.02 | 260.23 | -17.54 | 325.20 | 54.44 | 253.30 | 0.8099 | 138.8 | 77.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-17 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.87 | 80.44 | 15.96 | 75.96 | -16.65 | 329.87 | 59.11 | 254.80 | 0.8541 | 560.7 | 102.5 | |
| 0.00 | 3.57 | 0.00 | 3.34 | -15.95 | 329.53 | 58.77 | 255.61 | 0.8509 | 86.0 | 114.3 | |
| 0.00 | 1.13 | 0.00 | 1.02 | -13.05 | 328.26 | 57.50 | 259.03 | 0.8391 | 303.0 | 379.2 | |
| 1.65 | -1.00 | 1.56 | -1.00 | -17.19 | 329.72 | 58.96 | 254.16 | 0.8529 | 510.6 | 999999 | |
| 0.00 | 2.35 | 0.00 | 2.17 | -16.43 | 329.04 | 58.28 | 255.03 | 0.8467 | 372.0 | 380.5 | |
| 0.00 | 1.22 | 0.00 | 1.14 | -17.11 | 329.31 | 58.55 | 254.24 | 0.8493 | 446.0 | 422.9 | |
| 5.39 | -1.00 | 5.00 | -1.00 | -16.82 | 329.11 | 58.35 | 254.57 | 0.8474 | 765.3 | 999999 | |
| 1.04 | -1.00 | 0.96 | -1.00 | -16.92 | 328.74 | 57.98 | 254.43 | 0.8442 | 704.9 | 999999 | |
| 1.04 | 3.22 | 0.96 | 2.96 | -18.10 | 328.74 | 57.98 | 253.04 | 0.8447 | 558.4 | 452.9 | |
| 5.13 | 9.22 | 4.53 | 8.14 | -16.09 | 327.25 | 56.50 | 255.36 | 0.8303 | 601.3 | 427.9 | |
| 12.35 | 31.13 | 11.07 | 27.90 | -17.33 | 327.77 | 57.01 | 253.90 | 0.8355 | 683.3 | 237.7 | |
| 0.00 | 1.74 | 0.00 | 1.53 | -15.72 | 326.98 | 56.22 | 255.80 | 0.8276 | 504.0 | 420.8 | |
| 0.00 | 1.65 | 0.00 | 1.44 | -16.32 | 326.79 | 56.03 | 255.06 | 0.8260 | 674.0 | 597.9 | |
| 0.00 | 0.96 | 0.00 | 0.83 | -16.08 | 326.69 | 55.93 | 255.34 | 0.8249 | 661.0 | 578.2 | |
| 2.17 | 3.57 | 1.90 | 3.12 | -16.62 | 326.81 | 56.06 | 254.69 | 0.8263 | 579.9 | 416.3 | |
| 0.00 | 0.52 | 0.00 | 0.45 | -16.84 | 326.46 | 55.71 | 254.40 | 0.8231 | 404.0 | 539.2 | |
| 0.00 | 0.96 | 0.00 | 0.80 | -14.40 | 325.16 | 54.40 | 257.34 | 0.8094 | 635.0 | 558.3 | |
| 0.00 | 1.65 | 0.00 | 1.36 | -12.28 | 324.47 | 53.71 | 259.97 | 0.8021 | 590.0 | 532.0 | |
| 0.00 | 0.78 | 0.00 | 0.65 | -12.66 | 324.58 | 53.82 | 259.49 | 0.8033 | 449.0 | 311.3 | |
| 9.22 | 32.26 | 7.96 | 27.72 | -17.20 | 326.24 | 55.48 | 253.95 | 0.8212 | 771.7 | 581.3 | |
| 0.00 | 1.39 | 0.00 | 1.18 | -16.36 | 325.43 | 54.68 | 254.93 | 0.8130 | 711.0 | 623.2 | |
| 0.00 | 1.04 | 0.00 | 0.90 | -17.94 | 325.97 | 55.21 | 253.03 | 0.8191 | 534.0 | 495.2 | |
| 1.48 | 3.74 | 1.21 | 3.05 | -12.96 | 323.95 | 53.19 | 259.10 | 0.7969 | -448.5 | -465.5 | |
| 0.00 | 1.22 | 0.00 | 1.01 | -15.46 | 324.60 | 53.84 | 255.99 | 0.8042 | 574.0 | 434.1 | |
| 0.00 | 2.35 | 0.00 | 1.86 | -17.15 | 322.36 | 51.60 | 253.70 | 0.7825 | -470.0 | -357.9 | |
| 12.61 | 49.05 | 9.94 | 38.82 | -17.79 | 322.10 | 51.35 | 252.85 | 0.7805 | -673.5 | -189.4 | |
| 1.48 | -26.00 | 1.16 | -26.00 | -18.08 | 321.92 | 51.16 | 252.45 | 0.7789 | -768.4 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.41 | -18.86 | 321.84 | 51.08 | 251.44 | 0.7789 | -557.0 | -504.0 | |
| 0.00 | 0.87 | 0.00 | 0.67 | -17.99 | 321.28 | 50.53 | 252.50 | 0.7721 | -647.0 | -597.9 | |
| 0.00 | 0.35 | 0.00 | 0.27 | -19.05 | 321.52 | 50.76 | 251.16 | 0.7758 | -574.0 | -515.2 | |
| 0.00 | 0.52 | 0.00 | 0.41 | -19.99 | 321.73 | 50.97 | 249.98 | 0.7792 | -325.0 | -272.0 | |
| 0.00 | 3.13 | 0.00 | 2.44 | -19.90 | 321.33 | 50.58 | 250.04 | 0.7751 | -561.0 | -355.7 | |
| 0.00 | 0.96 | 0.00 | 0.72 | -18.07 | 320.00 | 49.24 | 252.22 | 0.7585 | -488.0 | -437.4 | |
| 0.00 | 0.78 | 0.00 | 0.61 | -21.60 | 320.90 | 50.15 | 247.79 | 0.7733 | 328.0 | 360.9 | |
| 0.00 | 1.22 | 0.00 | 0.91 | -20.67 | 318.72 | 47.97 | 248.58 | 0.7488 | -456.0 | -310.7 | |
| 0.96 | 13.91 | 0.70 | 10.16 | -19.21 | 317.96 | 47.20 | 250.38 | 0.7379 | 730.8 | 370.1 | |
| 13.57 | 32.00 | 9.96 | 23.55 | -20.01 | 318.08 | 47.32 | 249.33 | 0.7406 | -869.4 | -447.1 | |
| 0.87 | -36.00 | 0.63 | -36.00 | -19.30 | 317.66 | 46.91 | 250.20 | 0.7348 | 766.0 | 999999 | |
| 2.09 | 3.57 | 1.52 | 2.60 | -21.06 | 317.47 | 46.71 | 247.80 | 0.7360 | -668.9 | -564.3 | |
| 0.00 | 1.30 | 0.00 | 0.94 | -19.98 | 316.99 | 46.24 | 249.15 | 0.7286 | -623.0 | -549.6 | |
| 0.00 | 1.22 | 0.00 | 0.88 | -20.14 | 316.96 | 46.20 | 248.93 | 0.7286 | -757.0 | -618.8 | |
| 0.00 | 1.30 | 0.00 | 0.93 | -19.39 | 316.59 | 45.84 | 249.87 | 0.7230 | -619.0 | -492.7 | |
| 0.00 | 2.43 | 0.00 | 1.75 | -20.43 | 316.80 | 46.04 | 248.50 | 0.7274 | -761.0 | -623.4 | |
| 0.00 | 1.91 | 0.00 | 1.40 | -22.25 | 317.45 | 46.69 | 246.20 | 0.7385 | 604.0 | 452.2 | |
| 0.00 | 3.83 | 0.00 | 2.73 | -19.72 | 316.35 | 45.59 | 249.36 | 0.7209 | -825.0 | -653.9 | |
| 0.00 | 1.30 | 0.00 | 0.95 | -22.13 | 317.02 | 46.27 | 246.26 | 0.7336 | -577.0 | -440.4 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -21.87 | 314.50 | 43.74 | 245.94 | 0.7051 | -426.0 | -407.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
