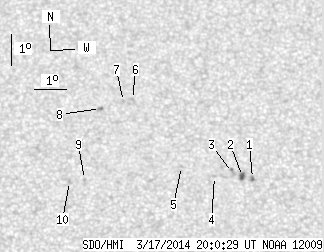

SDO HMI 2014-03-17 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.83 | 20.09 | 1.00 | 10.93 | 13.30 | 284.32 | 13.56 | 326.66 | 0.4171 | -7.5 | -85.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-17 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.43 | 0.00 | 1.33 | 12.65 | 286.58 | 15.82 | 321.42 | 0.4285 | -920.0 | -776.0 | |
| 1.83 | 3.83 | 1.00 | 2.09 | 12.70 | 286.27 | 15.51 | 322.06 | 0.4260 | -1020.6 | -808.3 | |
| 0.00 | 3.39 | 0.00 | 1.85 | 12.82 | 285.96 | 15.20 | 322.79 | 0.4245 | -846.0 | -704.4 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 12.67 | 285.38 | 14.62 | 323.65 | 0.4172 | -606.0 | -454.8 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 12.96 | 284.35 | 13.60 | 326.01 | 0.4116 | -682.0 | -473.0 | |
| 0.00 | 2.09 | 0.00 | 1.14 | 15.06 | 282.93 | 12.17 | 331.48 | 0.4283 | 595.0 | 464.9 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 14.99 | 282.64 | 11.89 | 331.97 | 0.4252 | 815.0 | 605.2 | |
| 0.00 | 2.09 | 0.00 | 1.14 | 14.74 | 281.91 | 11.15 | 333.20 | 0.4164 | 1064.0 | 868.7 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 12.46 | 281.30 | 10.54 | 331.80 | 0.3796 | 745.0 | 568.8 | |
| 0.00 | 1.83 | 0.00 | 0.98 | 12.39 | 280.83 | 10.07 | 332.78 | 0.3750 | 781.0 | 543.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
