SDO HMI 2014-03-17 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.18 | 66.19 | 1.18 | 36.86 | -11.47 | 296.74 | 26.54 | 257.52 | 0.4503 | -11.2 | -214.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-17 21:00:29 UT

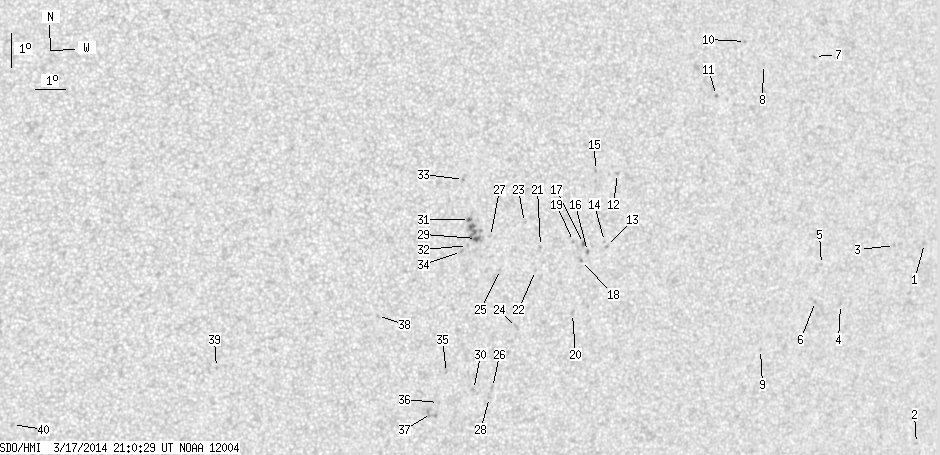

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.74 | 0.00 | 1.11 | -9.78 | 309.85 | 39.64 | 263.24 | 0.6354 | 593.0 | 439.9 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -15.75 | 310.66 | 40.45 | 254.03 | 0.6518 | 572.0 | 546.3 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -9.93 | 308.70 | 38.49 | 262.98 | 0.6200 | 589.0 | 416.7 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -11.83 | 306.90 | 36.69 | 259.71 | 0.5967 | 645.0 | 549.3 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -10.69 | 306.02 | 35.81 | 261.56 | 0.5835 | 603.0 | 458.4 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -11.81 | 305.95 | 35.74 | 259.63 | 0.5835 | 675.0 | 583.6 | |
| 0.00 | 1.39 | 0.00 | 0.84 | -4.52 | 305.18 | 34.97 | 272.30 | 0.5741 | 688.0 | 556.8 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -4.89 | 303.35 | 33.15 | 271.98 | 0.5473 | 676.0 | 614.9 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -13.38 | 304.14 | 33.93 | 256.58 | 0.5605 | 713.0 | 621.4 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -4.24 | 302.68 | 32.47 | 273.29 | 0.5385 | 722.0 | 554.6 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -5.92 | 301.75 | 31.54 | 270.30 | 0.5224 | 791.0 | 725.7 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -8.45 | 298.49 | 28.28 | 265.39 | 0.4721 | -627.0 | -547.9 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -10.64 | 298.30 | 28.10 | 260.70 | 0.4710 | 672.0 | 603.0 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -10.50 | 298.22 | 28.01 | 260.99 | 0.4695 | 684.0 | 527.9 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -8.40 | 297.73 | 27.52 | 265.47 | 0.4605 | -739.0 | -666.9 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -10.83 | 297.67 | 27.46 | 260.18 | 0.4616 | 745.0 | 682.1 | |
| 0.35 | 2.09 | 0.19 | 1.16 | -10.60 | 297.51 | 27.30 | 260.65 | 0.4589 | 840.8 | 670.7 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -11.11 | 297.49 | 27.28 | 259.53 | 0.4593 | 743.0 | 664.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -10.56 | 297.16 | 26.96 | 260.67 | 0.4535 | 875.0 | 726.6 | |
| 0.00 | 2.26 | 0.00 | 1.26 | -12.70 | 297.35 | 27.15 | 256.04 | 0.4606 | -678.0 | -515.3 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -10.76 | 296.06 | 25.86 | 259.97 | 0.4370 | 762.0 | 653.2 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -11.49 | 295.96 | 25.76 | 258.29 | 0.4367 | 774.0 | 625.4 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -10.08 | 295.47 | 25.26 | 261.44 | 0.4267 | 407.0 | 385.9 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -13.22 | 295.50 | 25.29 | 254.17 | 0.4341 | -730.0 | -584.7 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -11.52 | 294.79 | 24.58 | 257.86 | 0.4187 | -691.0 | -494.7 | |
| 0.00 | 1.83 | 0.00 | 1.00 | -15.06 | 294.90 | 24.69 | 249.71 | 0.4319 | -748.0 | -553.8 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -10.55 | 294.37 | 24.16 | 260.06 | 0.4103 | -679.0 | -422.3 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -15.37 | 294.83 | 24.63 | 248.99 | 0.4323 | -563.0 | -491.6 | |
| 1.22 | 14.09 | 0.66 | 7.62 | -10.63 | 293.91 | 23.71 | 259.73 | 0.4033 | -952.0 | -843.9 | |
| 0.00 | 1.65 | 0.00 | 0.90 | -15.15 | 294.26 | 24.06 | 249.11 | 0.4230 | -813.0 | -673.2 | |
| 0.61 | 1.83 | 0.33 | 0.99 | -10.08 | 293.64 | 23.43 | 261.05 | 0.3980 | -973.0 | -798.6 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -10.85 | 293.63 | 23.43 | 259.10 | 0.3993 | -672.0 | -542.4 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -8.89 | 293.36 | 23.15 | 264.00 | 0.3922 | -857.0 | -683.1 | |
| 0.00 | 1.39 | 0.00 | 0.75 | -11.04 | 293.45 | 23.24 | 258.57 | 0.3969 | -690.0 | -494.1 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -14.68 | 293.30 | 23.09 | 249.58 | 0.4066 | -744.0 | -620.4 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -15.60 | 293.14 | 22.93 | 247.31 | 0.4085 | -760.0 | -667.2 | |
| 0.00 | 5.74 | 0.00 | 3.11 | -15.94 | 292.94 | 22.73 | 246.37 | 0.4074 | -310.0 | -703.3 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -13.08 | 290.86 | 20.65 | 252.01 | 0.3628 | -574.0 | -507.7 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -14.82 | 285.79 | 15.58 | 241.93 | 0.2956 | -791.0 | -719.9 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -16.70 | 279.43 | 9.22 | 222.41 | 0.2286 | -792.0 | -579.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
