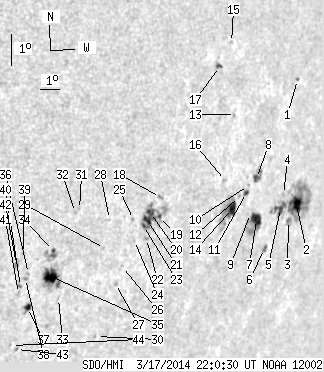

SDO HMI 2014-03-17 22:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.96 | 267.20 | 56.33 | 233.87 | -17.54 | 325.44 | 55.79 | 253.42 | 0.8227 | 43.1 | 94.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-17 22:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 1.13 | 0.41 | 1.06 | -12.97 | 328.31 | 58.65 | 259.13 | 0.8496 | 284.6 | 317.1 | |
| 8.52 | 80.28 | 8.32 | 78.14 | -16.63 | 329.89 | 60.23 | 254.86 | 0.8637 | 495.4 | 140.5 | |
| 0.87 | 4.26 | 0.84 | 4.14 | -17.15 | 329.66 | 60.00 | 254.25 | 0.8619 | 466.5 | 285.4 | |
| 0.00 | 1.65 | 0.00 | 1.57 | -16.42 | 328.97 | 59.31 | 255.08 | 0.8558 | 346.0 | 359.8 | |
| 6.26 | -2.00 | 5.96 | -2.00 | -16.85 | 329.00 | 59.35 | 254.58 | 0.8562 | 693.9 | 999999 | |
| 1.39 | 3.22 | 1.32 | 3.05 | -18.12 | 328.69 | 59.03 | 253.08 | 0.8539 | 520.4 | 416.6 | |
| 9.05 | 24.62 | 8.34 | 22.66 | -17.31 | 327.78 | 58.13 | 253.98 | 0.8456 | 648.7 | 381.6 | |
| 2.70 | 8.96 | 2.45 | 8.14 | -16.11 | 327.21 | 57.55 | 255.39 | 0.8400 | 609.5 | 416.3 | |
| 0.00 | 0.61 | 0.00 | 0.56 | -17.17 | 327.36 | 57.70 | 254.13 | 0.8418 | 440.0 | 489.9 | |
| 0.00 | 0.96 | 0.00 | 0.86 | -16.36 | 326.86 | 57.20 | 255.07 | 0.8369 | 722.0 | 585.7 | |
| 1.48 | 2.78 | 1.33 | 2.50 | -16.57 | 326.84 | 57.19 | 254.81 | 0.8368 | 534.8 | 434.3 | |
| 0.00 | 1.04 | 0.00 | 0.93 | -16.73 | 326.51 | 56.86 | 254.61 | 0.8338 | 574.0 | 494.6 | |
| 0.00 | 0.43 | 0.00 | 0.38 | -14.34 | 325.29 | 55.64 | 257.45 | 0.8215 | 515.0 | 544.2 | |
| 7.65 | 30.62 | 6.79 | 27.03 | -17.12 | 326.29 | 56.64 | 254.12 | 0.8320 | 708.8 | 524.0 | |
| 0.00 | 1.13 | 0.00 | 0.95 | -12.24 | 324.36 | 54.71 | 260.01 | 0.8121 | 611.0 | 511.4 | |
| 0.00 | 1.57 | 0.00 | 1.36 | -16.34 | 325.54 | 55.89 | 255.03 | 0.8246 | 696.0 | 520.8 | |
| 1.39 | 2.61 | 1.16 | 2.18 | -13.01 | 323.97 | 54.31 | 259.06 | 0.8082 | -451.2 | -351.9 | |
| 0.00 | 2.61 | 0.00 | 2.12 | -17.17 | 322.40 | 52.74 | 253.78 | 0.7942 | -364.0 | -278.1 | |
| 0.96 | 35.75 | 0.78 | 28.95 | -17.73 | 322.58 | 52.93 | 253.09 | 0.7966 | -126.4 | -276.2 | |
| 2.70 | -19.00 | 2.17 | -19.00 | -17.66 | 322.08 | 52.43 | 253.13 | 0.7914 | -614.2 | 999999 | |
| 4.44 | -19.00 | 3.57 | -19.00 | -17.91 | 322.03 | 52.38 | 252.81 | 0.7912 | -698.7 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.13 | -18.45 | 322.21 | 52.55 | 252.15 | 0.7935 | -453.0 | -305.6 | |
| 1.30 | -19.00 | 1.05 | -19.00 | -18.08 | 321.89 | 52.24 | 252.58 | 0.7899 | -709.1 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.70 | -18.56 | 321.64 | 51.98 | 251.94 | 0.7878 | -531.0 | -475.9 | |
| 0.00 | 0.61 | 0.00 | 0.48 | -17.94 | 321.33 | 51.67 | 252.69 | 0.7840 | -660.0 | -578.1 | |
| 0.00 | 0.35 | 0.00 | 0.28 | -19.39 | 321.39 | 51.73 | 250.85 | 0.7862 | -462.0 | -375.5 | |
| 0.00 | 1.48 | 0.00 | 1.18 | -19.93 | 321.27 | 51.62 | 250.16 | 0.7857 | -461.0 | -415.6 | |
| 0.00 | 0.87 | 0.00 | 0.68 | -18.05 | 320.17 | 50.51 | 252.41 | 0.7720 | -572.0 | -541.6 | |
| 0.00 | 0.43 | 0.00 | 0.34 | -18.94 | 320.28 | 50.62 | 251.29 | 0.7743 | -603.0 | -524.8 | |
| 0.00 | 0.61 | 0.00 | 0.49 | -21.61 | 321.09 | 51.44 | 248.01 | 0.7863 | 419.0 | 406.9 | |
| 0.00 | 0.43 | 0.00 | 0.33 | -17.88 | 318.64 | 48.98 | 252.43 | 0.7555 | -502.0 | -455.6 | |
| 0.00 | 1.04 | 0.00 | 0.78 | -17.99 | 318.49 | 48.83 | 252.27 | 0.7540 | -447.0 | -390.8 | |
| 0.00 | 0.87 | 0.00 | 0.66 | -20.63 | 318.73 | 49.07 | 248.84 | 0.7605 | -382.0 | -275.9 | |
| 0.78 | 10.79 | 0.58 | 8.03 | -19.22 | 317.90 | 48.25 | 250.56 | 0.7494 | 626.4 | 396.3 | |
| 12.26 | 26.79 | 9.19 | 20.10 | -20.01 | 318.08 | 48.42 | 249.54 | 0.7525 | -810.2 | -474.6 | |
| 0.00 | 0.96 | 0.00 | 0.70 | -20.01 | 317.03 | 47.38 | 249.35 | 0.7412 | -723.0 | -571.7 | |
| 2.78 | 5.65 | 2.07 | 4.20 | -21.03 | 317.40 | 47.75 | 248.06 | 0.7472 | -610.6 | -468.1 | |
| 0.00 | 1.65 | 0.00 | 1.21 | -20.17 | 316.95 | 47.30 | 249.11 | 0.7407 | -663.0 | -527.9 | |
| 0.00 | 0.96 | 0.00 | 0.70 | -19.43 | 316.57 | 46.92 | 250.04 | 0.7352 | -588.0 | -525.5 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -20.43 | 316.82 | 47.17 | 248.74 | 0.7397 | -729.0 | -696.0 | |
| 0.00 | 2.26 | 0.00 | 1.66 | -20.65 | 316.82 | 47.16 | 248.45 | 0.7401 | -588.0 | -560.1 | |
| 0.00 | 2.35 | 0.00 | 1.71 | -19.78 | 316.38 | 46.73 | 249.52 | 0.7337 | -764.0 | -689.2 | |
| 0.00 | 1.22 | 0.00 | 0.91 | -22.34 | 317.45 | 47.80 | 246.34 | 0.7504 | 602.0 | 527.6 | |
| 0.00 | 0.61 | 0.00 | 0.45 | -22.24 | 317.16 | 47.51 | 246.40 | 0.7471 | -424.0 | -398.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
