SDO HMI 2014-03-18 00:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.40 | 55.85 | 2.95 | 31.12 | -11.78 | 295.44 | 26.88 | 257.57 | 0.4554 | -270.8 | -247.1 | |
|
previous
or next observation for the same group /

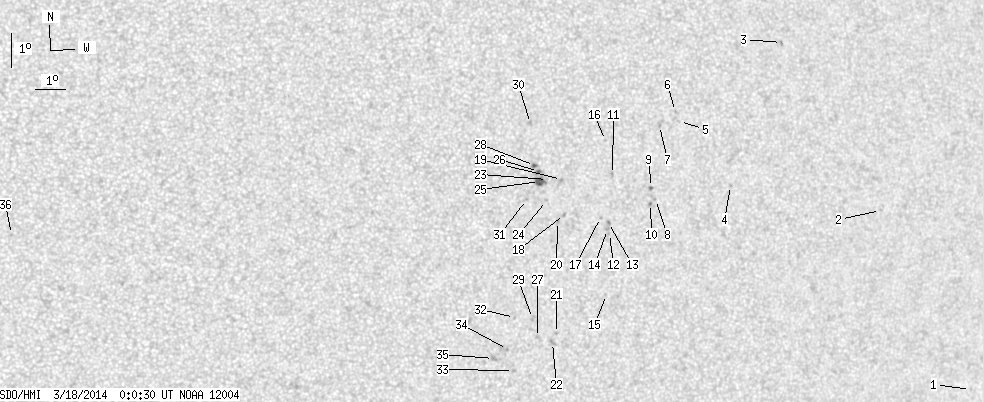

back to the solar disc SDO HMI 2014-03-18 00:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.75 | -15.72 | 310.58 | 42.03 | 254.37 | 0.6715 | 470.0 | 413.2 | |
| 0.00 | 1.13 | 0.00 | 0.70 | -10.67 | 306.00 | 37.45 | 261.72 | 0.6061 | 517.0 | 463.8 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -5.92 | 301.84 | 33.29 | 270.07 | 0.5481 | 651.0 | 581.3 | |
| 0.00 | 1.48 | 0.00 | 0.86 | -10.30 | 300.41 | 31.85 | 261.91 | 0.5266 | -668.0 | -512.8 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -8.50 | 298.43 | 29.88 | 265.31 | 0.4964 | -541.0 | -461.9 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -8.21 | 298.27 | 29.72 | 265.89 | 0.4939 | -532.0 | -467.4 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -8.66 | 297.75 | 29.20 | 264.96 | 0.4861 | -712.0 | -643.7 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -10.88 | 297.82 | 29.27 | 260.42 | 0.4889 | 539.0 | 476.1 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -10.53 | 297.65 | 29.09 | 261.11 | 0.4859 | 733.0 | 732.8 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -11.00 | 297.66 | 29.11 | 260.13 | 0.4867 | 662.0 | 596.7 | |
| 0.00 | 1.74 | 0.00 | 0.97 | -10.21 | 296.27 | 27.72 | 261.55 | 0.4647 | 888.0 | 710.8 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -11.98 | 296.35 | 27.80 | 257.79 | 0.4686 | 668.0 | 544.3 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -11.65 | 296.28 | 27.73 | 258.47 | 0.4670 | 801.0 | 677.4 | |
| 0.00 | 1.48 | 0.00 | 0.83 | -11.86 | 296.27 | 27.71 | 258.01 | 0.4672 | 777.0 | 676.2 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -13.81 | 296.46 | 27.91 | 253.99 | 0.4749 | -653.0 | -506.5 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -9.22 | 295.94 | 27.39 | 263.68 | 0.4588 | -636.0 | -438.0 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -11.52 | 295.99 | 27.44 | 258.68 | 0.4623 | 628.0 | 571.7 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -11.50 | 294.76 | 26.20 | 258.41 | 0.4436 | -685.0 | -571.4 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -10.46 | 294.56 | 26.01 | 260.71 | 0.4387 | -668.0 | -516.0 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -11.72 | 294.54 | 25.99 | 257.84 | 0.4408 | -543.0 | -486.3 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -15.07 | 294.90 | 26.34 | 250.62 | 0.4561 | -704.0 | -573.0 | |
| 0.00 | 2.26 | 0.00 | 1.26 | -15.35 | 294.80 | 26.24 | 249.97 | 0.4557 | -650.0 | -564.0 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -10.48 | 294.09 | 25.54 | 260.55 | 0.4315 | -481.0 | -464.4 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -11.11 | 294.11 | 25.56 | 259.11 | 0.4329 | -689.0 | -565.8 | |
| 4.00 | 7.66 | 2.19 | 4.19 | -10.55 | 293.83 | 25.27 | 260.32 | 0.4276 | -973.8 | -743.7 | |
| 0.70 | 2.70 | 0.38 | 1.48 | -10.26 | 293.77 | 25.21 | 261.00 | 0.4262 | -899.8 | -714.7 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -15.22 | 294.26 | 25.71 | 249.95 | 0.4475 | -668.0 | -508.0 | |
| 0.70 | 2.00 | 0.38 | 1.09 | -10.09 | 293.62 | 25.07 | 261.38 | 0.4237 | -915.8 | -727.7 | |
| 0.00 | 2.52 | 0.00 | 1.39 | -14.66 | 294.02 | 25.47 | 251.04 | 0.4417 | -551.0 | -517.4 | |
| 0.00 | 2.52 | 0.00 | 1.37 | -8.84 | 293.39 | 24.84 | 264.31 | 0.4189 | -850.0 | -633.6 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -11.11 | 293.44 | 24.89 | 258.91 | 0.4226 | -675.0 | -549.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -14.66 | 293.41 | 24.85 | 250.70 | 0.4326 | -632.0 | -543.7 | |
| 0.00 | 1.39 | 0.00 | 0.77 | -16.26 | 293.58 | 25.02 | 247.29 | 0.4420 | -607.0 | -484.1 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -15.64 | 293.29 | 24.74 | 248.46 | 0.4350 | -774.0 | -628.8 | |
| 0.00 | 3.31 | 0.00 | 1.81 | -15.93 | 292.85 | 24.30 | 247.52 | 0.4300 | -835.0 | -697.8 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -12.71 | 277.09 | 8.53 | 235.68 | 0.1761 | 781.0 | 559.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
