SDO HMI 2014-03-18 01:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.05 | 61.61 | 2.78 | 34.86 | -11.08 | 296.65 | 28.65 | 259.45 | 0.4807 | -189.8 | -197.7 | |
|
previous
or next observation for the same group /

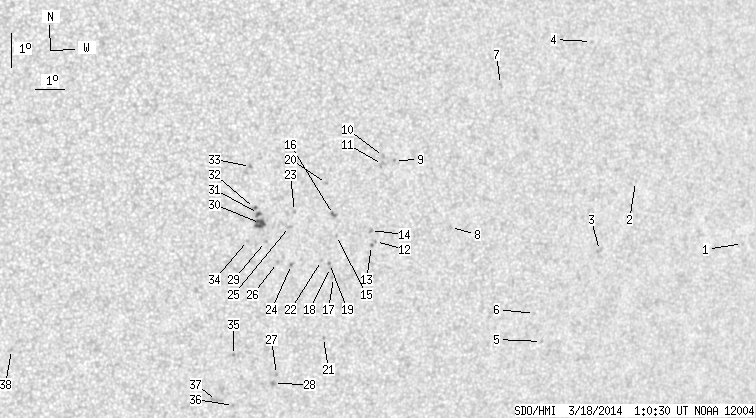

back to the solar disc SDO HMI 2014-03-18 01:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.53 | -9.94 | 311.67 | 43.67 | 263.05 | 0.6875 | 369.0 | 341.4 | |
| 0.00 | 0.61 | 0.00 | 0.39 | -8.44 | 307.13 | 39.13 | 265.37 | 0.6286 | 307.0 | 342.3 | |
| 0.00 | 2.61 | 0.00 | 1.63 | -10.59 | 306.02 | 38.02 | 261.87 | 0.6138 | 580.0 | 524.3 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -4.40 | 305.10 | 37.09 | 272.14 | 0.6040 | 477.0 | 403.6 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -13.46 | 304.26 | 36.25 | 256.90 | 0.5927 | 580.0 | 482.2 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -12.64 | 303.85 | 35.85 | 258.22 | 0.5860 | 594.0 | 524.4 | |
| 0.00 | 1.65 | 0.00 | 0.98 | -5.92 | 301.84 | 33.84 | 270.01 | 0.5560 | 668.0 | 548.2 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -10.29 | 300.44 | 32.43 | 261.98 | 0.5350 | -721.0 | -625.1 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -8.42 | 298.26 | 30.26 | 265.48 | 0.5021 | -721.0 | -667.8 | |
| 0.00 | 1.65 | 0.00 | 0.94 | -8.32 | 297.87 | 29.87 | 265.67 | 0.4962 | -732.0 | -643.5 | |
| 0.00 | 3.48 | 0.00 | 1.98 | -8.56 | 297.86 | 29.85 | 265.18 | 0.4960 | -786.0 | -670.0 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -10.87 | 297.84 | 29.83 | 260.52 | 0.4973 | 516.0 | 452.8 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -11.00 | 297.71 | 29.71 | 260.24 | 0.4956 | 636.0 | 558.3 | |
| 0.00 | 1.65 | 0.00 | 0.94 | -10.55 | 297.63 | 29.62 | 261.13 | 0.4938 | 825.0 | 709.3 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -10.77 | 296.47 | 28.46 | 260.49 | 0.4767 | 580.0 | 497.9 | |
| 0.00 | 2.35 | 0.00 | 1.32 | -10.15 | 296.30 | 28.30 | 261.77 | 0.4735 | 883.0 | 721.8 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -12.03 | 296.50 | 28.50 | 257.87 | 0.4793 | 439.0 | 485.2 | |
| 0.00 | 1.48 | 0.00 | 0.83 | -11.74 | 296.36 | 28.36 | 258.45 | 0.4767 | 718.0 | 617.1 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -11.62 | 296.32 | 28.31 | 258.68 | 0.4757 | 874.0 | 703.5 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -9.24 | 295.98 | 27.98 | 263.67 | 0.4678 | -662.0 | -447.5 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -13.84 | 296.38 | 28.37 | 254.09 | 0.4817 | -455.0 | -456.8 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -11.55 | 296.03 | 28.03 | 258.77 | 0.4713 | 805.0 | 666.7 | |
| 0.00 | 1.39 | 0.00 | 0.77 | -10.14 | 294.97 | 26.96 | 261.60 | 0.4531 | -530.0 | -432.4 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -11.72 | 295.02 | 27.01 | 258.13 | 0.4564 | -606.0 | -505.9 | |
| 0.00 | 2.09 | 0.00 | 1.16 | -10.59 | 294.84 | 26.83 | 260.57 | 0.4517 | -614.0 | -491.0 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -11.69 | 294.54 | 26.53 | 258.07 | 0.4490 | -728.0 | -559.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -15.04 | 294.90 | 26.90 | 250.96 | 0.4641 | -721.0 | -657.8 | |
| 0.00 | 2.44 | 0.00 | 1.36 | -15.32 | 294.83 | 26.83 | 250.35 | 0.4642 | -639.0 | -555.0 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -11.08 | 294.07 | 26.07 | 259.30 | 0.4407 | -653.0 | -574.9 | |
| 4.53 | 7.83 | 2.49 | 4.31 | -10.55 | 293.85 | 25.85 | 260.45 | 0.4365 | -913.0 | -759.7 | |
| 0.52 | 2.26 | 0.29 | 1.24 | -10.26 | 293.76 | 25.76 | 261.11 | 0.4346 | -880.8 | -786.6 | |
| 0.00 | 1.83 | 0.00 | 1.00 | -10.12 | 293.61 | 25.61 | 261.41 | 0.4322 | -939.0 | -791.0 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -8.87 | 293.38 | 25.38 | 264.28 | 0.4274 | -815.0 | -685.5 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -11.08 | 293.46 | 25.46 | 259.14 | 0.4313 | -728.0 | -550.3 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -14.55 | 293.36 | 25.35 | 251.23 | 0.4396 | -663.0 | -573.1 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -16.05 | 293.55 | 25.55 | 248.07 | 0.4487 | -697.0 | -548.5 | |
| 0.00 | 4.18 | 0.00 | 2.30 | -15.93 | 292.95 | 24.95 | 247.95 | 0.4394 | -762.0 | -635.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -14.68 | 286.00 | 17.99 | 245.29 | 0.3304 | -820.0 | -642.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
