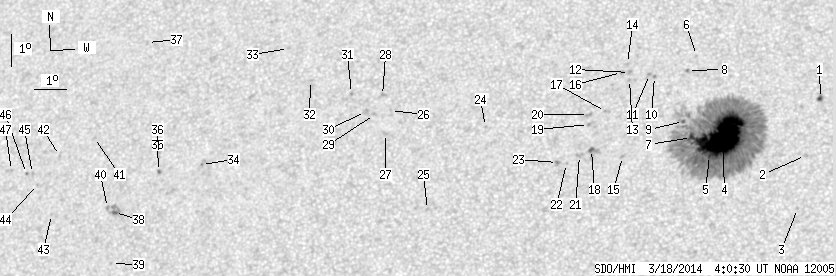

SDO HMI 2014-03-18 04:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.34 | 639.00 | 54.42 | 337.68 | 12.25 | 261.49 | -4.87 | 13.33 | 0.3480 | -785.3 | -389.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-18 04:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 2.00 | 0.69 | 1.06 | 13.42 | 265.75 | -0.61 | 1.69 | 0.3524 | 910.9 | 743.6 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 11.62 | 265.29 | -1.07 | 3.25 | 0.3230 | -600.0 | -502.4 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 9.95 | 265.05 | -1.30 | 4.37 | 0.2956 | -926.0 | -666.0 | |
| 96.55 | 561.46 | 50.79 | 295.37 | 12.23 | 262.76 | -3.60 | 10.51 | 0.3381 | -1433.7 | -457.4 | |
| 0.78 | -4.00 | 0.41 | -4.00 | 11.64 | 262.37 | -3.99 | 11.99 | 0.3297 | -1387.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 14.83 | 261.91 | -4.44 | 11.35 | 0.3823 | -635.0 | -523.4 | |
| 2.18 | -4.00 | 1.15 | -4.00 | 12.21 | 261.81 | -4.55 | 13.21 | 0.3410 | -860.4 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 14.35 | 261.65 | -4.71 | 12.29 | 0.3756 | -769.0 | -641.0 | |
| 0.52 | -4.00 | 0.28 | -4.00 | 12.72 | 261.55 | -4.81 | 13.56 | 0.3501 | -820.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 14.17 | 260.63 | -5.73 | 14.96 | 0.3766 | -914.0 | -790.5 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 14.23 | 260.47 | -5.89 | 15.30 | 0.3783 | -731.0 | -607.9 | |
| 0.00 | 2.26 | 0.00 | 1.21 | 14.31 | 259.85 | -6.51 | 16.77 | 0.3822 | -814.0 | -654.0 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 14.08 | 259.86 | -6.50 | 16.93 | 0.3787 | -874.0 | -682.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 14.60 | 259.78 | -6.58 | 16.72 | 0.3870 | -667.0 | -521.4 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 11.64 | 259.70 | -6.65 | 19.49 | 0.3416 | -959.0 | -662.4 | |
| 0.00 | 1.83 | 0.00 | 0.98 | 14.31 | 259.60 | -6.75 | 17.37 | 0.3835 | -807.0 | -648.6 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 13.07 | 259.14 | -7.21 | 19.57 | 0.3668 | -715.0 | -613.1 | |
| 0.96 | 8.27 | 0.51 | 4.37 | 11.88 | 258.75 | -7.61 | 21.79 | 0.3508 | -1045.5 | -828.2 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 12.67 | 258.63 | -7.73 | 21.25 | 0.3635 | -795.0 | -590.2 | |
| 0.00 | 2.79 | 0.00 | 1.48 | 12.99 | 258.62 | -7.74 | 20.95 | 0.3684 | -693.0 | -581.2 | |
| 0.00 | 3.31 | 0.00 | 1.75 | 11.70 | 258.38 | -7.98 | 22.93 | 0.3503 | -726.0 | -648.2 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 11.45 | 257.99 | -8.37 | 24.23 | 0.3492 | -755.0 | -591.0 | |
| 0.00 | 2.26 | 0.00 | 1.20 | 11.49 | 257.71 | -8.65 | 24.89 | 0.3516 | -862.0 | -695.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 12.68 | 255.44 | -10.92 | 28.79 | 0.3855 | -762.0 | -518.9 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 10.11 | 253.74 | -12.62 | 36.26 | 0.3652 | 755.0 | 631.7 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 13.27 | 252.43 | -13.93 | 34.20 | 0.4186 | 684.0 | 543.7 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 12.55 | 252.31 | -14.05 | 35.45 | 0.4103 | 901.0 | 763.2 | |
| 0.00 | 3.13 | 0.00 | 1.72 | 13.76 | 252.15 | -14.21 | 34.07 | 0.4275 | 735.0 | 630.5 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 13.16 | 251.93 | -14.43 | 35.30 | 0.4217 | 840.0 | 683.2 | |
| 0.00 | 3.48 | 0.00 | 1.90 | 13.27 | 251.64 | -14.72 | 35.69 | 0.4257 | 716.0 | 558.4 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 13.86 | 251.15 | -15.20 | 35.75 | 0.4376 | 797.0 | 557.1 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 14.33 | 249.81 | -16.55 | 37.43 | 0.4559 | 681.0 | 579.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 15.39 | 249.01 | -17.34 | 37.31 | 0.4762 | -579.0 | -484.0 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 11.80 | 246.48 | -19.87 | 46.41 | 0.4614 | 739.0 | 632.7 | |
| 0.00 | 1.65 | 0.00 | 0.93 | 11.64 | 245.09 | -21.26 | 48.59 | 0.4755 | 800.0 | 742.6 | |
| 0.00 | 2.96 | 0.00 | 1.67 | 12.18 | 245.05 | -21.31 | 47.80 | 0.4814 | 635.0 | 525.9 | |
| 0.00 | 1.74 | 0.00 | 1.01 | 15.79 | 244.33 | -22.03 | 43.49 | 0.5265 | 608.0 | 478.5 | |
| 1.04 | 7.57 | 0.59 | 4.27 | 10.42 | 243.75 | -22.61 | 52.34 | 0.4797 | 1004.3 | 783.1 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 8.83 | 243.76 | -22.60 | 55.06 | 0.4652 | 749.0 | 649.1 | |
| 0.00 | 1.74 | 0.00 | 0.98 | 10.59 | 243.50 | -22.86 | 52.35 | 0.4842 | 631.0 | 511.0 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 12.83 | 242.87 | -23.48 | 49.57 | 0.5125 | 659.0 | 549.0 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 12.32 | 241.75 | -24.61 | 51.67 | 0.5207 | 733.0 | 439.4 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 10.47 | 241.65 | -24.71 | 54.71 | 0.5056 | 625.0 | 558.0 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 11.44 | 241.10 | -25.26 | 53.76 | 0.5207 | 639.0 | 605.1 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 11.80 | 240.89 | -25.47 | 53.42 | 0.5262 | 805.0 | 570.4 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 11.81 | 240.69 | -25.67 | 53.63 | 0.5287 | 651.0 | 533.0 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 11.93 | 240.17 | -26.19 | 53.99 | 0.5360 | 612.0 | 493.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
