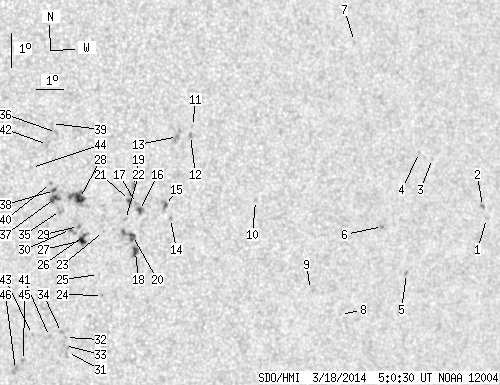

SDO HMI 2014-03-18 05:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.74 | 121.36 | 11.80 | 70.11 | -11.14 | 296.61 | 30.80 | 259.92 | 0.5118 | -227.7 | -149.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-18 05:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 1.02 | -10.03 | 310.05 | 44.24 | 262.90 | 0.6947 | 506.0 | 452.5 | |
| 0.00 | 2.00 | 0.00 | 1.37 | -9.69 | 309.83 | 44.02 | 263.40 | 0.6919 | 735.0 | 654.7 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -8.43 | 307.57 | 41.76 | 265.30 | 0.6634 | 347.0 | 284.8 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -8.30 | 307.03 | 41.22 | 265.52 | 0.6564 | 653.0 | 536.4 | |
| 0.00 | 1.65 | 0.00 | 1.08 | -11.93 | 307.07 | 41.26 | 259.97 | 0.6575 | 755.0 | 613.7 | |
| 0.00 | 1.31 | 0.00 | 0.84 | -10.61 | 305.88 | 40.07 | 261.94 | 0.6413 | 793.0 | 739.8 | |
| 0.00 | 1.22 | 0.00 | 0.77 | -5.19 | 304.18 | 38.37 | 270.63 | 0.6205 | 473.0 | 380.4 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -13.35 | 304.69 | 38.88 | 257.50 | 0.6278 | 489.0 | 361.9 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -12.69 | 303.40 | 37.59 | 258.38 | 0.6098 | 186.0 | 357.5 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -10.19 | 300.94 | 35.13 | 262.36 | 0.5736 | -302.0 | -361.6 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -8.14 | 298.42 | 32.61 | 265.99 | 0.5370 | -567.0 | -426.4 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -8.41 | 298.38 | 32.57 | 265.48 | 0.5363 | -737.0 | -616.7 | |
| 0.00 | 5.66 | 0.00 | 3.30 | -8.47 | 297.92 | 32.11 | 265.37 | 0.5295 | -885.0 | -693.6 | |
| 0.00 | 1.57 | 0.00 | 0.91 | -10.93 | 297.93 | 32.12 | 260.72 | 0.5310 | 702.0 | 515.8 | |
| 0.87 | 5.05 | 0.51 | 2.94 | -10.55 | 297.70 | 31.89 | 261.41 | 0.5274 | 763.4 | 648.5 | |
| 1.57 | 4.18 | 0.90 | 2.41 | -10.76 | 296.80 | 30.99 | 260.89 | 0.5144 | 813.9 | 612.5 | |
| 0.00 | 1.39 | 0.00 | 0.80 | -10.56 | 296.67 | 30.86 | 261.27 | 0.5122 | 700.0 | 574.5 | |
| 2.79 | 4.88 | 1.61 | 2.82 | -11.99 | 296.81 | 31.00 | 258.50 | 0.5161 | 823.1 | 627.9 | |
| 0.00 | 2.87 | 0.00 | 1.65 | -10.06 | 296.51 | 30.70 | 262.23 | 0.5094 | 798.0 | 671.9 | |
| 1.31 | 7.75 | 0.75 | 4.46 | -11.52 | 296.64 | 30.83 | 259.39 | 0.5130 | 773.0 | 628.1 | |
| 0.96 | 4.18 | 0.55 | 2.40 | -10.49 | 296.42 | 30.61 | 261.38 | 0.5084 | 882.2 | 696.8 | |
| 0.00 | 1.83 | 0.00 | 1.05 | -11.06 | 296.34 | 30.53 | 260.24 | 0.5079 | 710.0 | 466.3 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -11.46 | 295.61 | 29.80 | 259.30 | 0.4977 | -381.0 | -285.1 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -13.38 | 295.81 | 30.00 | 255.55 | 0.5044 | -774.0 | -618.5 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -12.76 | 295.59 | 29.78 | 256.71 | 0.4998 | 370.0 | 387.2 | |
| 0.44 | 6.88 | 0.25 | 3.90 | -11.62 | 294.96 | 29.15 | 258.85 | 0.4883 | -709.6 | -540.6 | |
| 3.05 | -26.00 | 1.73 | -26.00 | -11.78 | 294.91 | 29.10 | 258.52 | 0.4878 | -767.5 | 999999 | |
| 5.66 | 15.41 | 3.20 | 8.70 | -10.53 | 294.67 | 28.86 | 261.04 | 0.4824 | -780.7 | -635.6 | |
| 0.00 | 1.65 | 0.00 | 0.94 | -11.37 | 294.72 | 28.91 | 259.32 | 0.4843 | -722.0 | -640.2 | |
| 0.35 | 3.48 | 0.20 | 1.97 | -11.47 | 294.46 | 28.65 | 259.05 | 0.4805 | -883.8 | -775.1 | |
| 0.00 | 3.66 | 0.00 | 2.08 | -15.16 | 294.83 | 29.02 | 251.68 | 0.4952 | -557.0 | -523.5 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -14.71 | 294.69 | 28.88 | 252.51 | 0.4918 | -727.0 | -551.5 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -14.95 | 294.69 | 28.88 | 252.03 | 0.4926 | -722.0 | -608.7 | |
| 0.00 | 1.57 | 0.00 | 0.89 | -14.57 | 294.53 | 28.72 | 252.73 | 0.4890 | -730.0 | -645.4 | |
| 0.00 | 4.61 | 0.00 | 2.59 | -10.92 | 294.05 | 28.24 | 260.11 | 0.4736 | -594.0 | -595.8 | |
| 0.00 | 1.83 | 0.00 | 1.02 | -8.61 | 293.71 | 27.90 | 265.01 | 0.4663 | -694.0 | -539.6 | |
| 2.87 | 5.83 | 1.61 | 3.27 | -10.58 | 293.81 | 28.00 | 260.80 | 0.4695 | -1048.9 | -821.5 | |
| 0.87 | 2.44 | 0.49 | 1.37 | -10.34 | 293.79 | 27.98 | 261.30 | 0.4688 | -856.3 | -665.3 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -8.35 | 293.52 | 27.70 | 265.56 | 0.4633 | -532.0 | -455.5 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -10.14 | 293.63 | 27.82 | 261.71 | 0.4662 | -814.0 | -676.1 | |
| 0.00 | 1.48 | 0.00 | 0.84 | -14.71 | 294.13 | 28.32 | 252.27 | 0.4837 | -805.0 | -632.1 | |
| 0.00 | 2.70 | 0.00 | 1.51 | -8.98 | 293.43 | 27.62 | 264.18 | 0.4622 | -830.0 | -621.2 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -14.68 | 293.53 | 27.72 | 252.07 | 0.4749 | -751.0 | -639.6 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -9.70 | 292.94 | 27.13 | 262.57 | 0.4552 | -700.0 | -488.8 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -15.48 | 293.33 | 27.52 | 250.33 | 0.4748 | -790.0 | -666.4 | |
| 0.00 | 5.31 | 0.00 | 2.98 | -15.77 | 293.09 | 27.28 | 249.63 | 0.4725 | -716.0 | -559.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
